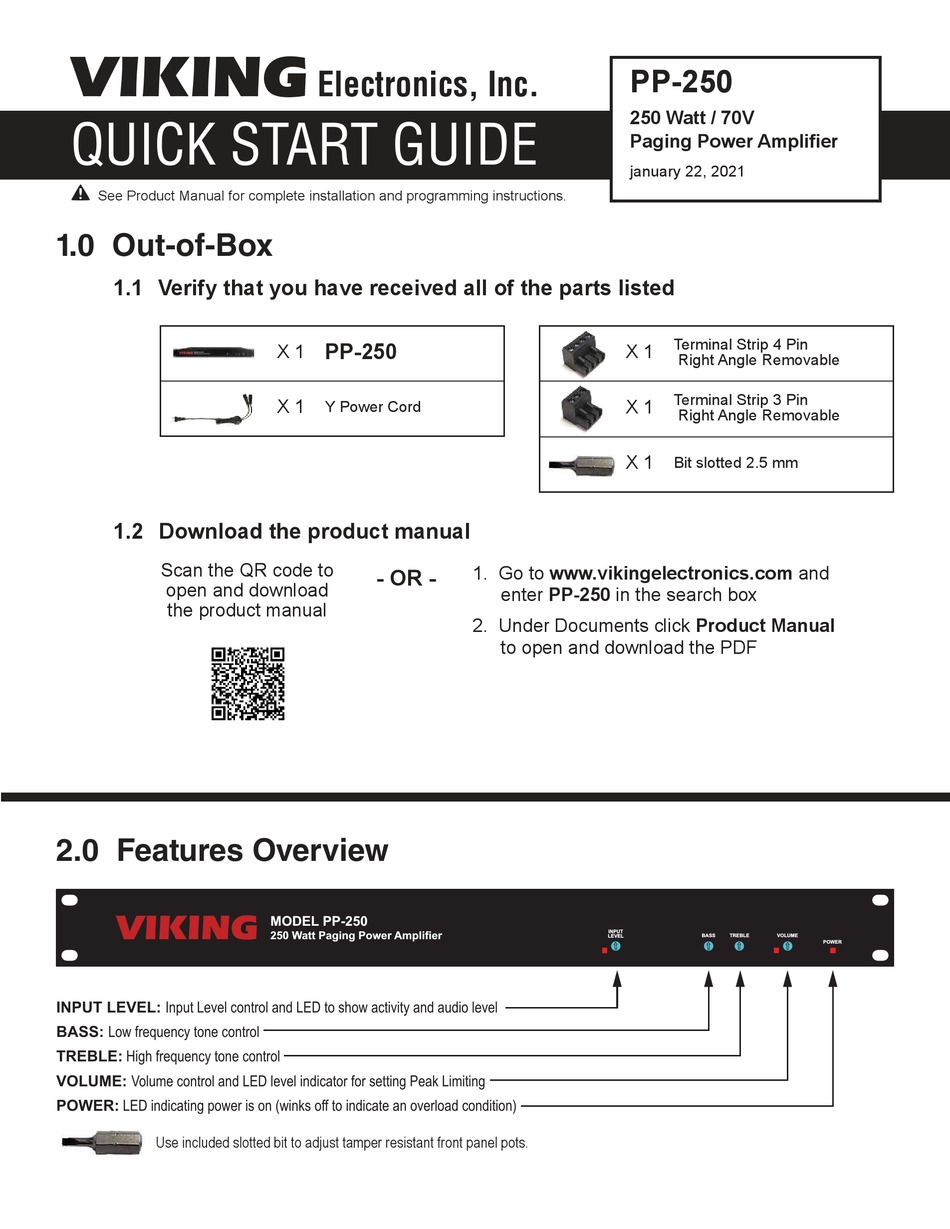

Viking PP-250 Quick Start Manual

VIKING
QUICK START GUIDE
K
See Product Manual for complete installation and programming instructions.
1.0 Out-of-Box
1.1 Verify that you have received all of the parts listed
1.2 Download the product manual
Scan the QR code to
open and download
the product manual
2.0 Features Overview
VIKING
INPUT LEVEL: Input Level control and LED to show activity and audio level
BASS: Low frequency tone control
TREBLE: High frequency tone control
VOLUME: Volume control and LED level indicator for setting Peak Limiting
POWER: LED indicating power is on (winks off to indicate an overload condition)
Use included slotted bit to adjust tamper resistant front panel pots.
Electronics, Inc.
PP-250
X 1
X 1
Y Power Cord
- OR -
MODEL PP-250
250 Watt Paging Power Amplifier
PP-250
250 Watt / 70V
Paging Power Amplifier
january 22, 2021
X 1
X 1
X 1
1. Go to www.vikingelectronics.com and
enter PP-250 in the search box
2. Under Documents click Product Manual
to open and download the PDF
INPUT
LEVEL
Terminal Strip 4 Pin
Right Angle Removable
Terminal Strip 3 Pin
Right Angle Removable
Bit slotted 2.5 mm
BASS TREBLE VOLUME
POWER
