Viking PA-250-IP Quick Start Manual

VIKING
QUICK START GUIDE
See Product Manual for complete installation and programming instructions.
1.0 Out-of-Box
1.1 Verify that you have received all of the parts listed
1.2 Download the product manual
Scan the QR code to
open and download
the product manual
1.3 Download and install the programming software
1. Go to www.vikingelectronics.com and enter PA-250-IP in the search box
2. Click PA-250-IP in the search results
3. Scroll down the page to Downloads, click IP Programming Software
4. Install the programming software by saving or opening the file and then clicking on
setup Viking IP Programming.exe
5. Follow the prompts on your screen to complete software installation
2.0 Network Port Settings
• Make sure the port is not in trunk mode
• Make sure port is capable of 100mbps full duplex
• Disable Spanning Tree Protocol (STP) or enable Portfast
Electronics, Inc.
PA-250-IP
X 1
X 1
Y Power Cord
X 1
Bit slotted 2.5 mm
- OR -

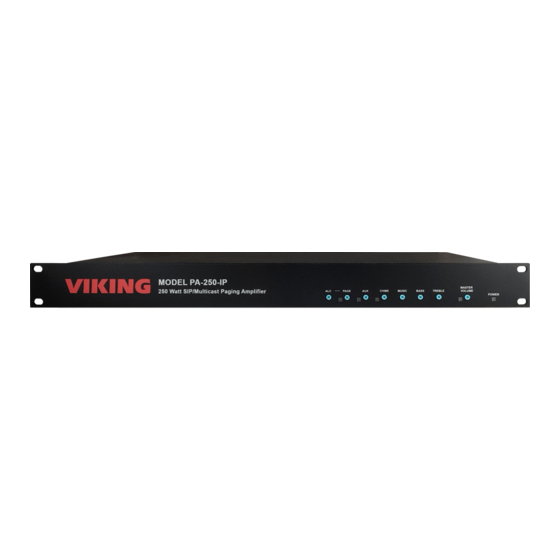

PA-250-IP
250 Watt 70V SIP /
Multicast Paging Amplifier
January 22, 2021
X 1
X 1
X 1
1. Go to www.vikingelectronics.com and
enter PA-250-IP in the search box
2. Under Documents click Product Manual
to open and download the PDF
Terminal Strip 4 Pin 5mm
Right Angle Removable
Terminal Strip 5 Pin 5mm
Right Angle Removable
Terminal Strip 2 Pin 5mm
Right Angle Removable
