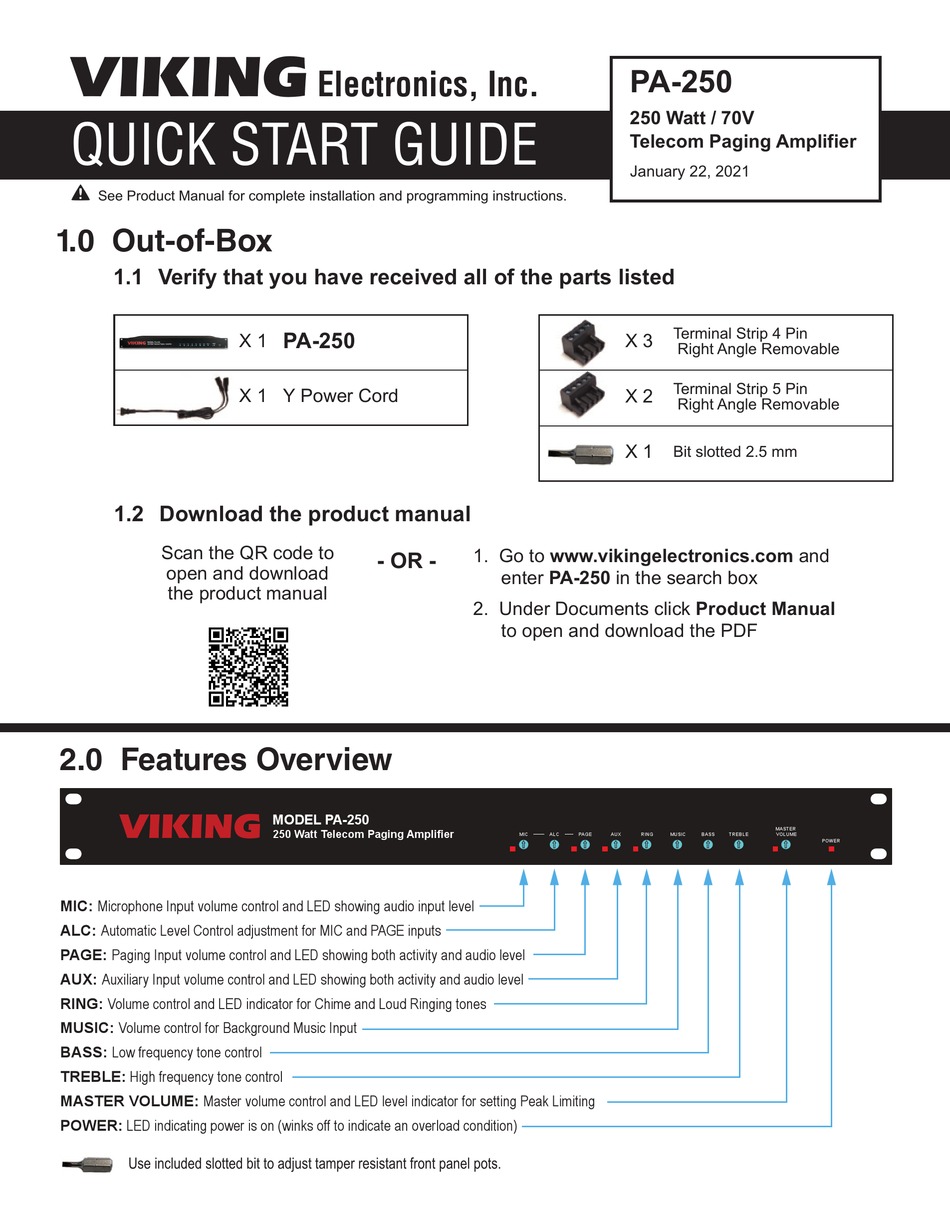

Viking PA-250 Quick Start Manual

VIKING
QUICK START GUIDE
See Product Manual for complete installation and programming instructions.
1.0 Out-of-Box
1.1 Verify that you have received all of the parts listed
1.2 Download the product manual
Scan the QR code to
open and download
the product manual
2.0 Features Overview
VIKING
MIC: Microphone Input volume control and LED showing audio input level
ALC: Automatic Level Control adjustment for MIC and PAGE inputs
PAGE: Paging Input volume control and LED showing both activity and audio level
AUX: Auxiliary Input volume control and LED showing both activity and audio level
RING: Volume control and LED indicator for Chime and Loud Ringing tones
MUSIC: Volume control for Background Music Input
BASS: Low frequency tone control
TREBLE: High frequency tone control
MASTER VOLUME: Master volume control and LED level indicator for setting Peak Limiting
POWER: LED indicating power is on (winks off to indicate an overload condition)
Use included slotted bit to adjust tamper resistant front panel pots.
Electronics, Inc.
PA-250
X 1
X 1 Y Power Cord
- OR -
MODEL PA-250

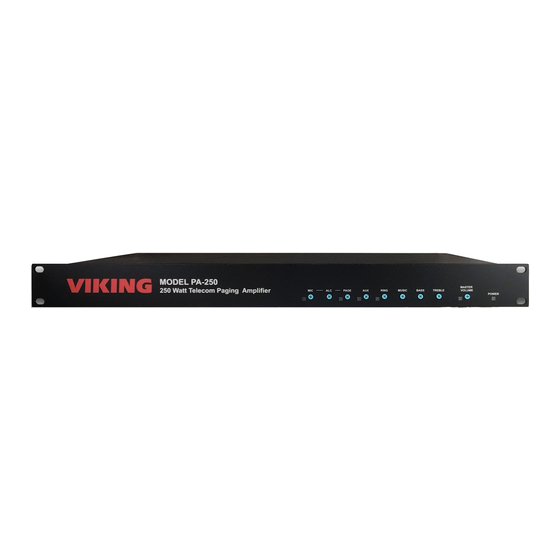

250 Watt Telecom Paging Amplifier
PA-250
250 Watt / 70V
Telecom Paging Amplifier
January 22, 2021
X 3
X 2
X 1
1. Go to www.vikingelectronics.com and
enter PA-250 in the search box
2. Under Documents click Product Manual
to open and download the PDF
MIC ALC PAGE AUX RING
Terminal Strip 4 Pin
Right Angle Removable
Terminal Strip 5 Pin
Right Angle Removable
Bit slotted 2.5 mm
MASTER
MUSIC BASS TREBLE VOLUME
POWER
