Viking PA-30 Product Manual

30 watt paging amp with loud ringing
Hide thumbs Also See for PA-30:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

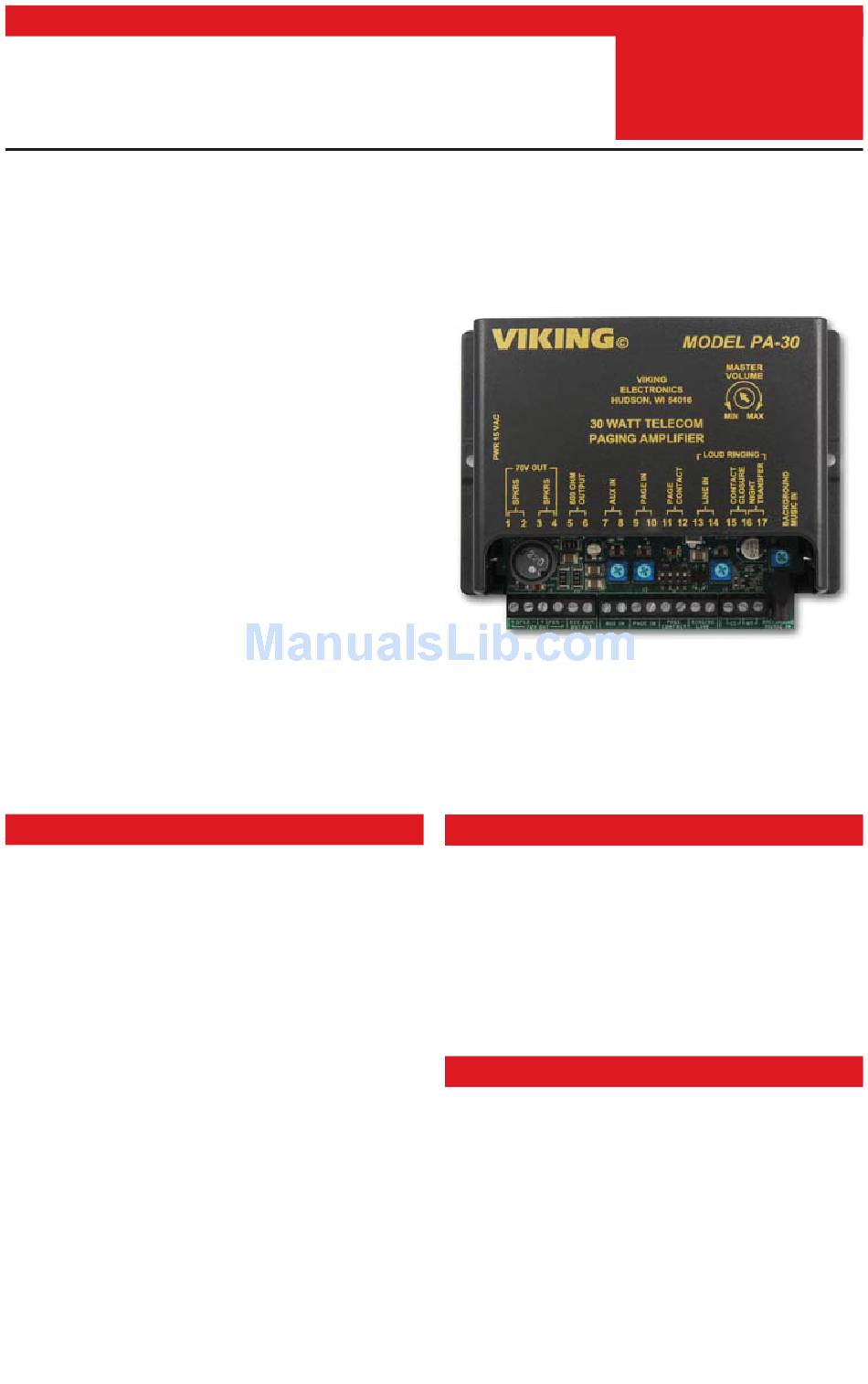

Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S
Add Paging and Loud Ringing with
Background Music to Any Phone System
The PA-30 can directly drive up to thirty (30) 8 ohm
paging speakers or fifty (50) 70 volt or 25 volt
paging speakers. This small and light weight
chassis design is possible by utilizing new amplifier
technology that is 300% less inefficient than old
designs competitors use. High efficiency means
much less heat disipation, smaller size, higher
reliability, and lower cost.
The PA-30 provides loud ringing and paging to
electronic key systems, 1A2 Key systems, PABX's
as well as No-KSU phones and multi-line phones.
Paging is accomplished by connecting the PA-30 to
a paging port or unused telephone line input (trunk
port) of nearly any phone system.
The PA-30 will also generate adjustable loud ringing
from a ringing analog line or from a dry contact
closure. Either a loud electronic warble, or one of
three other soft chime sounds may be selected. An
external "night transfer" switch can be added to turn
loud ringing on or off in night bell applications.
Features
• 30 Watts of paging power
• Drive up to (30) 8 ohm speakers
• Drive up to (50) 70V or 25V speakers
• Master volume control
• Separate volume controls for Auxiliary Input,
Paging, Ringing Tones and Background Music
• Choose from up to 4 ringing sounds:
- Electronic warble (traditional loud ringer)
- Double gong (two identical "gong" tones)
- Quadruple chime (four descending chimes)
- Door chime (ding-dong)
• Provides loud ringing or night bell
• Night transfer switch
• Page from an unused trunk port or paging port
• Can provide background music from an
external source
• Use as a low cost stand alone power amplifier
• 600 Ohm output to drive additional amplifiers
• Use multiple units for more paging power
PRODUCT MANUAL
The PA-30 eliminates the installation of multiple
bells, relays and paging cards. The unit comes
complete with a power supply, and integrated 30
watt amplifier.
Applications
• Amplified loud paging
• Loud ringing
• Night bell
• Background music
www.vikingelectronics.com
Information: (715) 386-8861
Specifications
Power: 120V AC/15V AC 2.2A UL listed adapter
provided
Dimensions: 133mm x 89mm x 44mm (5.25" x
3.5" x 1.75")
Shipping Weight: 1.36 kg (3 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with
5% to 95% non-condensing humidity
Paging Output: 30 watts - powers up to (30) 8
ohm speakers or (50) 70V or 25V speakers
Talk Battery: 40V DC
Connections: (1) 3.5mm (1/8") audio jack, (1) 17
position screw terminal block
PA-30
30 Watt Paging Amp
with Loud Ringing
August 30, 2016

Advertisement

Table of Contents
loading

Related Manuals for Viking PA-30

Summary of Contents for Viking PA-30

  • Page 1 Add Paging and Loud Ringing with Background Music to Any Phone System The PA-30 can directly drive up to thirty (30) 8 ohm paging speakers or fifty (50) 70 volt or 25 volt paging speakers. This small and light weight...

  • Page 2: Features Overview

    Features Overview VIKING MODEL PA-30 © LED Indicators MASTER VOLUME Loud Ringing Activated VIKING ELECTRONICS Master Volume Page Contact Activated HUDSON, WI 54016 Control Page In Audio Level 30 WATT TELECOM Aux In Audio Level PAGING AMPLIFIER Power Input Power...
  • Page 3 8 Ohm Speakers wiring, see DOD# 498 and 895. Optional Night Transfer (not included) Switch - Disables loud ringing when closed (not included) Use Viking model Up to (15) more Dry Contact Closure NS-1 (DOD# 540) 8 Ohm Speakers (not included) (not included) C.
  • Page 4 Step 2 Move the talk battery DIP switch to the OFF position (DIP switch 1). Step 3 Connect the main PA-30 600 Ohm Output (pins 5 & 6) to a second PA-30 Page In (pins 9 & 10). Step 4 Add a jumper wire across the Page Contact (pins 11 & 12) of the second PA-30.

  • Page 5: Dip Switch Programming

    DIP Switch Programming VIKING MODEL PA-30 Switch Position Description © MASTER VOLUME Talk Battery disabled (use for paging port) VIKING ELECTRONICS HUDSON, WI 54016 30 WATT TELECOM Talk Battery enabled (use for trunk input) PAGING AMPLIFIER LOUD RINGING Normal Priority: Aux In → Page → Ringing 70V OUT →...
  • Page 6 (which will actually provide 30 watts of power). When using 70 volt speakers on the PA-30, each speaker actually gets only ¼ as much power as the selected tap. To get 1 watt of power into a speaker, use its 4 watt tap. The sum of all the speakers’ power taps should not exceed 120 watts (which will actually provide 30 watts of power).

  • Page 7: Operation

    If paging from a phone system’s unused Telephone Line Input (Trunk Port), FXO, or dedicated analog phone, DIP Switch 1 must be turned ON so the PA-30 will provide the necessary 40V DC of Talk Battery. To page, either access that Trunk Port or go off hook on the analog phone. Loop current will be detected and activate paging.

  • Page 8: Two Year Limited Warranty

    This number is valid for fourteen (14) calendar days from the date of issue. 3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your distributor will then replace the Viking product using the same R.A. number.
