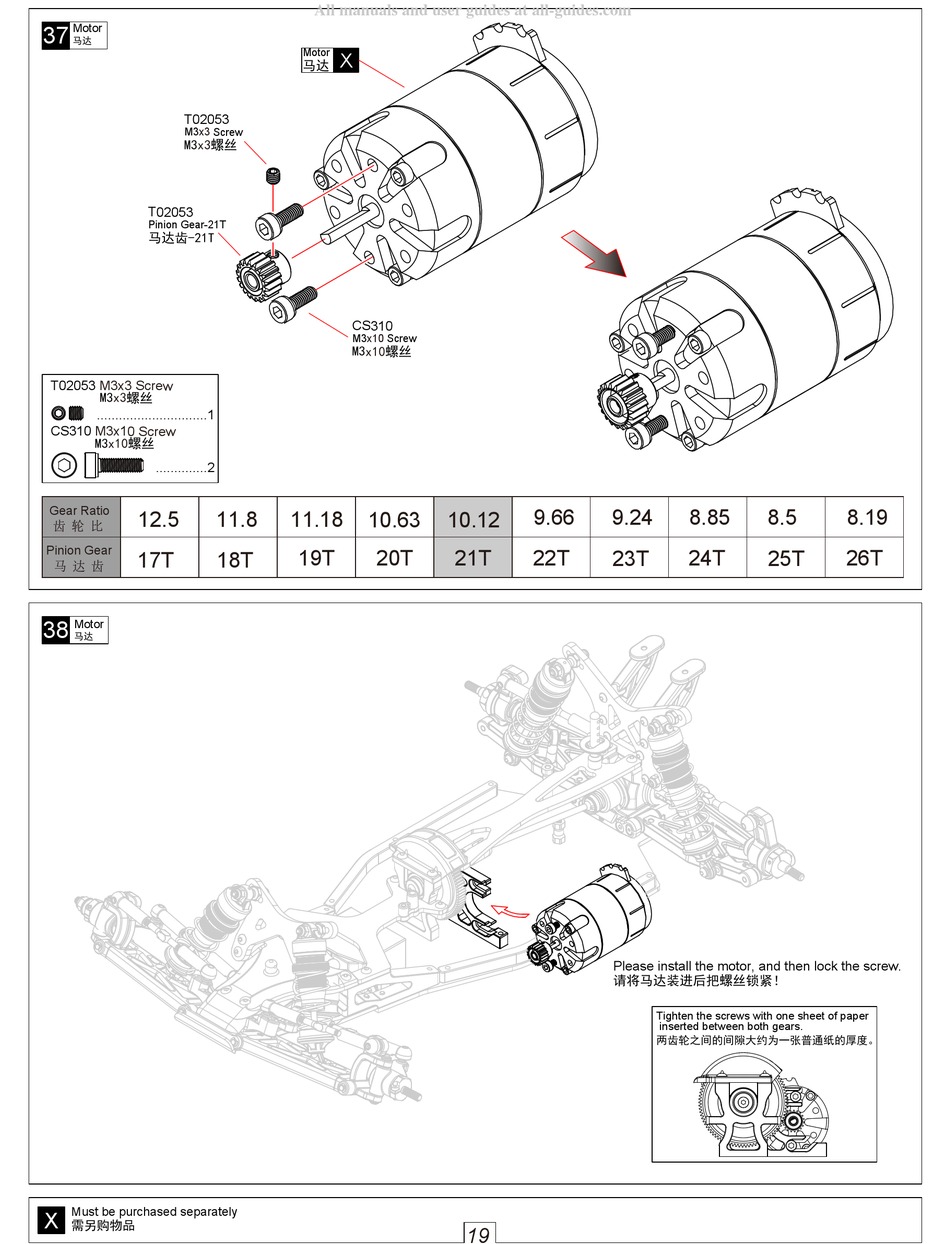

Team C TM2 V2 Instruction Manual page 22

37 Motor
马达
..............................1
..............2
Gear Ratio
12.5 11.8
齿 轮 比
Pinion Gear
17T 18T
马 达 齿
38
Motor
马达
Must be purchased separately
X
需另购物品
All manuals and user guides at all-guides.com
X
11.18
10.63 10.12
19T 20T 21T
19
9.66 9.24 8.85
22T 23T 24T
Please install the motor, and then lock the screw.
请将马达装进后把螺丝锁紧！
Tighten the screws with one sheet of paper
inserted between both gears.
两齿轮之间的间隙大约为一张普通纸的厚度。
8.5 8.19
25T 26T
