Team C TM2 V2 Instruction Manual page 2

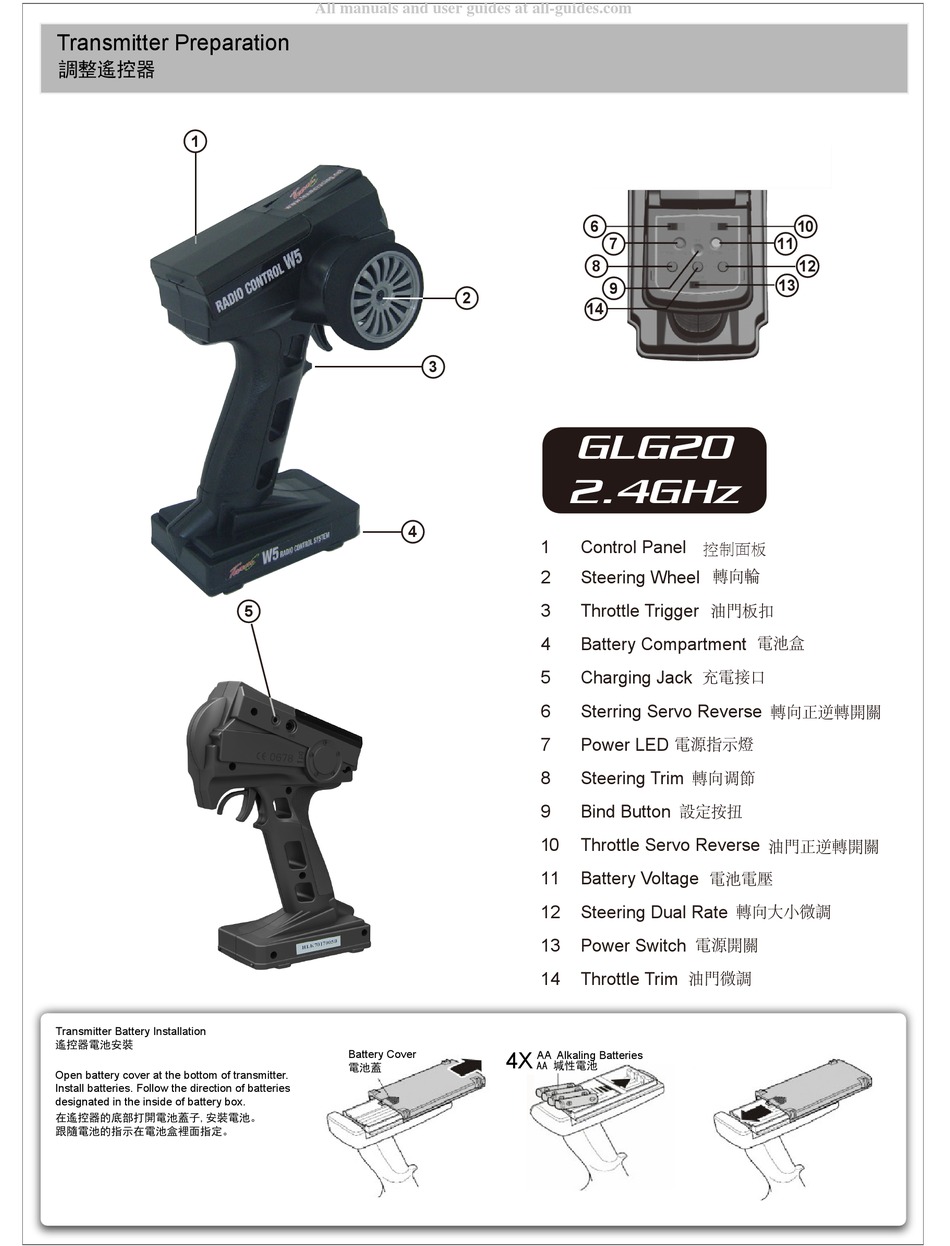

Transmitter Preparation
調整遙控器
1
Transmitter Battery Installation
遙控器電池安裝
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
在遙控器的底部打開電池蓋子,安裝電池。
跟隨電池的指示在電池盒裡面指定。
