5.6 Digital Pins D22 - D53 RHS

Pin Function
1 +5V
2 D23
3 D25
4 D27
5 D29
6 D31
7 D33
8 D35
9 D37
10 D39
11 D41
12 D43
13 D45
14 D47
15 D49
16 D51
17 D53
18 GND

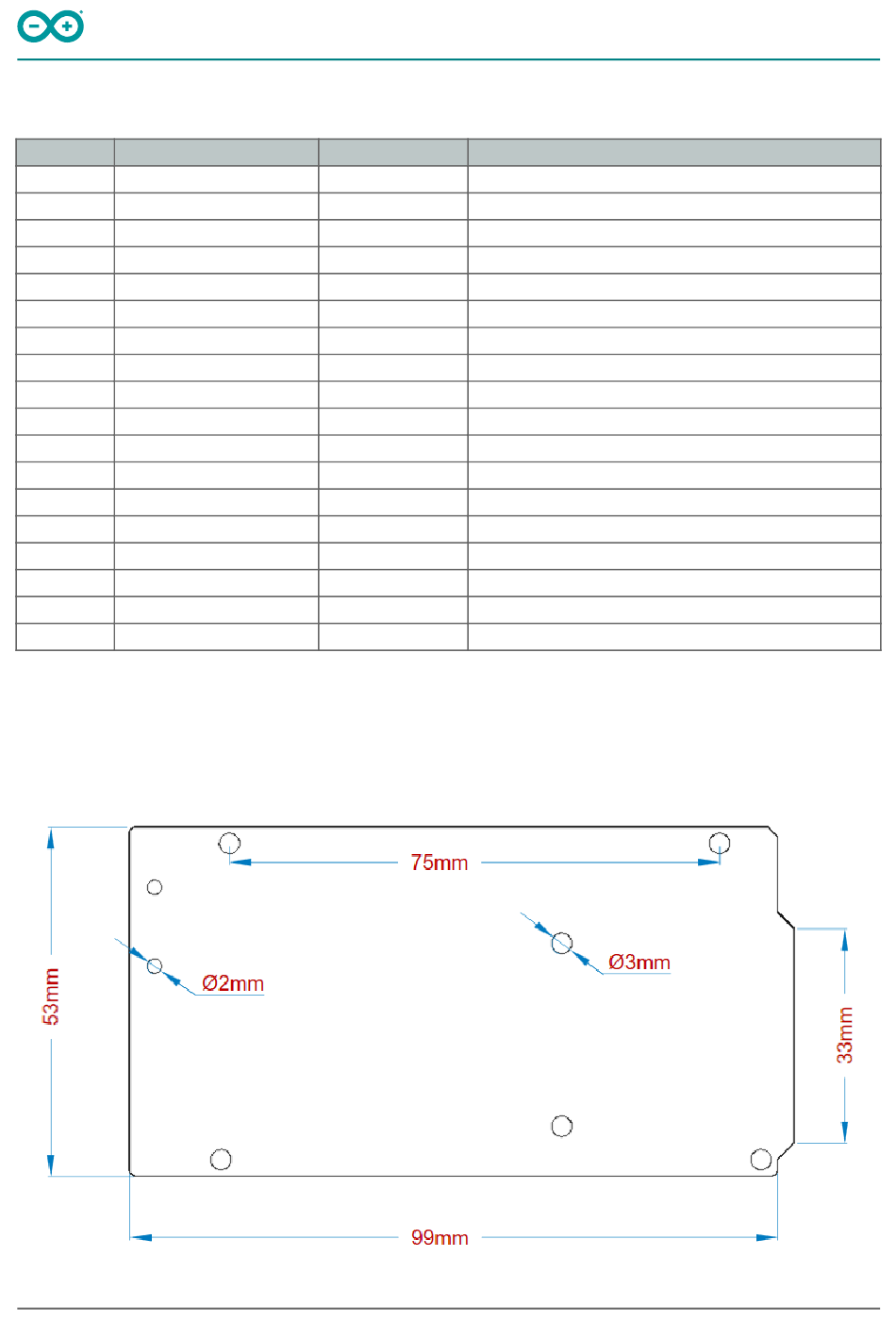

6 Mechanical Information

6.1 Board Outline

14 / 18
Type Description
Power Power Supply of 5V
Digital Digital input 23/GPIO
Digital Digital input 25/GPIO
Digital Digital input 27/GPIO
Digital Digital input 29/GPIO
Digital Digital input 31/GPIO
Digital Digital input 33/GPIO
Digital Digital input 35/GPIO
Digital Digital input 37/GPIO
Digital Digital input 39/GPIO
Digital Digital input 41/GPIO
Digital Digital input 43/GPIO
Digital Digital input 45/GPIO
Digital Digital input 47/GPIO
Digital Digital input 49/GPIO
Digital Digital input 51/GPIO
Digital Digital input 53/GPIO
Power Ground
Arduino® MEGA 2560 Rev3
Arduino® MEGA 2560 Rev3
Modified: 15/12/2021
