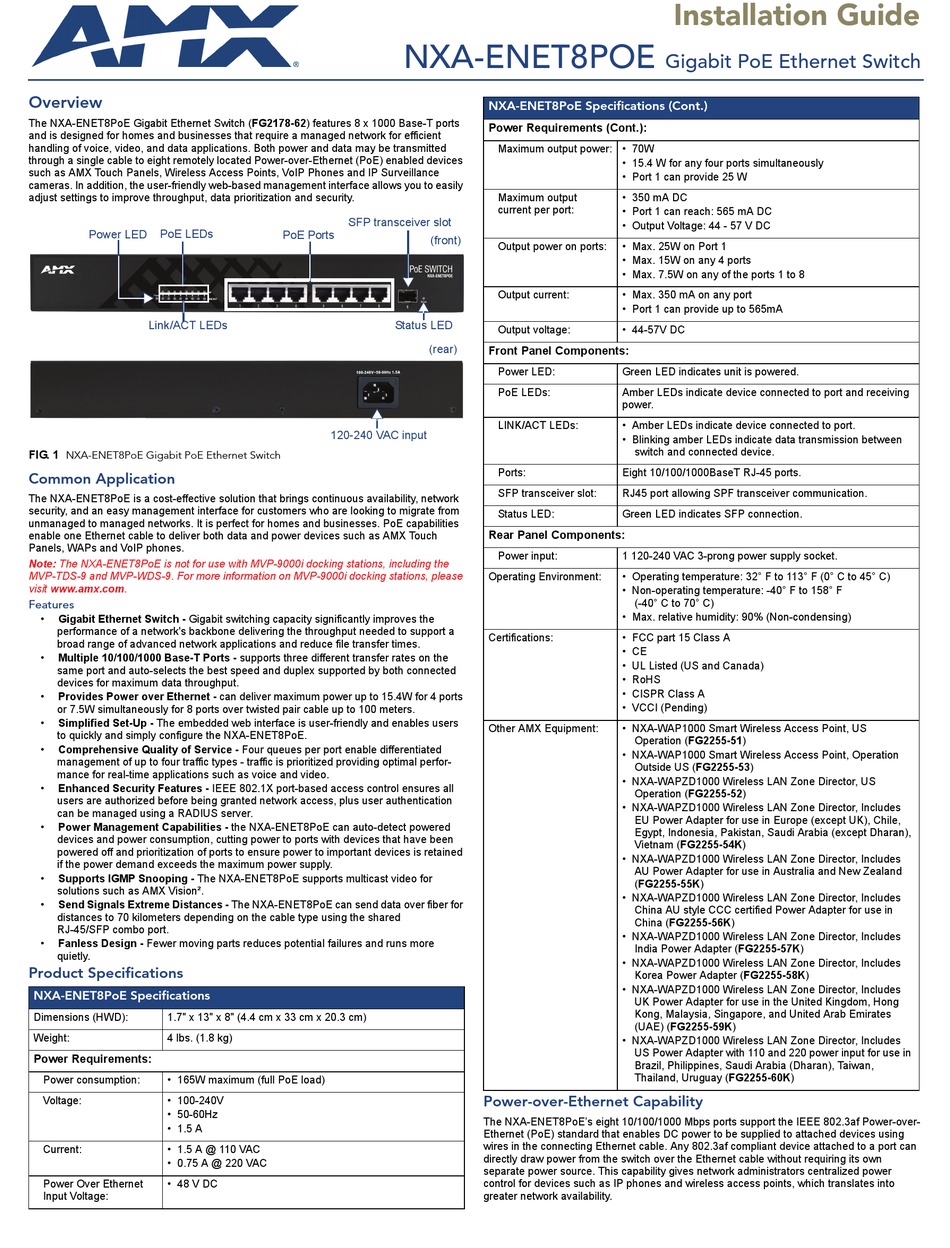

Overview

The NXA-ENET8PoE Gigabit Ethernet Switch (FG2178-62) features 8 x 1000 Base-T ports

and is designed for homes and businesses that require a managed network for efficient

handling of voice, video, and data applications. Both power and data may be transmitted

through a single cable to eight remotely located Power-over-Ethernet (PoE) enabled devices

such as AMX Touch Panels, Wireless Access Points, VoIP Phones and IP Surveillance

cameras. In addition, the user-friendly web-based management interface allows you to easily

adjust settings to improve throughput, data prioritization and security.

PoE LEDs

Power LED

Link/ACT LEDs

FIG. 1

NXA-ENET8PoE Gigabit PoE Ethernet Switch

Common Application

The NXA-ENET8PoE is a cost-effective solution that brings continuous availability, network

security, and an easy management interface for customers who are looking to migrate from

unmanaged to managed networks. It is perfect for homes and businesses. PoE capabilities

enable one Ethernet cable to deliver both data and power devices such as AMX Touch

Panels, WAPs and VoIP phones.

Note: The NXA-ENET8PoE is not for use with MVP-9000i docking stations, including the

MVP-TDS-9 and MVP-WDS-9. For more information on MVP-9000i docking stations, please

visit www.amx.com.

Features

Gigabit Ethernet Switch - Gigabit switching capacity significantly improves the 

•

performance of a network's backbone delivering the throughput needed to support a

broad range of advanced network applications and reduce file transfer times.

•

Multiple 10/100/1000 Base-T Ports - supports three different transfer rates on the

same port and auto-selects the best speed and duplex supported by both connected

devices for maximum data throughput.

•

Provides Power over Ethernet - can deliver maximum power up to 15.4W for 4 ports

or 7.5W simultaneously for 8 ports over twisted pair cable up to 100 meters.

•

Simplified Set-Up - The embedded web interface is user-friendly and enables users

to quickly and simply configure the NXA-ENET8PoE.

•

Comprehensive Quality of Service - Four queues per port enable differentiated

management of up to four traffic types - traffic is prioritized providing optimal perfor-

mance for real-time applications such as voice and video.

•

Enhanced Security Features - IEEE 802.1X port-based access control ensures all

users are authorized before being granted network access, plus user authentication

can be managed using a RADIUS server.

•

Power Management Capabilities - the NXA-ENET8PoE can auto-detect powered

devices and power consumption, cutting power to ports with devices that have been

powered off and prioritization of ports to ensure power to important devices is retained

if the power demand exceeds the maximum power supply.

Supports IGMP Snooping - The NXA-ENET8PoE supports multicast video for 

•

solutions such as AMX Vision².

•

Send Signals Extreme Distances - The NXA-ENET8PoE can send data over fiber for

distances to 70 kilometers depending on the cable type using the shared 

RJ-45/SFP combo port.

Fanless Design - Fewer moving parts reduces potential failures and runs more 

•

quietly.

Product Specifications

NXA-ENET8PoE Specifications

Dimensions (HWD):

1.7" x 13" x 8" (4.4 cm x 33 cm x 20.3 cm)

Weight:

4 lbs. (1.8 kg)

Power Requirements:

Power consumption:

• 165W maximum (full PoE load)

Voltage:

• 100-240V

• 50-60Hz

• 1.5 A

Current:

• 1.5 A @ 110 VAC

• 0.75 A @ 220 VAC

Power Over Ethernet

• 48 V DC

Input Voltage:

NXA-ENET8POE

SFP transceiver slot

PoE Ports

(front)

Status LED

(rear)

120-240 VAC input

NXA-ENET8PoE Specifications (Cont.)

Power Requirements (Cont.):

Maximum output power: • 70W

• 15.4 W for any four ports simultaneously

• Port 1 can provide 25 W

Maximum output

• 350 mA DC

current per port:

• Port 1 can reach: 565 mA DC

• Output Voltage: 44 - 57 V DC

Output power on ports:

• Max. 25W on Port 1

• Max. 15W on any 4 ports

• Max. 7.5W on any of the ports 1 to 8

Output current:

• Max. 350 mA on any port

• Port 1 can provide up to 565mA

Output voltage:

• 44-57V DC

Front Panel Components:

Power LED:

Green LED indicates unit is powered.

PoE LEDs:

Amber LEDs indicate device connected to port and receiving

power.

LINK/ACT LEDs:

• Amber LEDs indicate device connected to port.

• Blinking amber LEDs indicate data transmission between

switch and connected device.

Ports:

Eight 10/100/1000BaseT RJ-45 ports.

SFP transceiver slot:

RJ45 port allowing SPF transceiver communication.

Status LED:

Green LED indicates SFP connection.

Rear Panel Components:

Power input:

1 120-240 VAC 3-prong power supply socket.

Operating Environment:

• Operating temperature: 32° F to 113° F (0° C to 45° C)

• Non-operating temperature: -40° F to 158° F 

(-40° C to 70° C)

• Max. relative humidity: 90% (Non-condensing)

Certifications:

• FCC part 15 Class A

• CE

• UL Listed (US and Canada)

• RoHS

• CISPR Class A

• VCCI (Pending)

Other AMX Equipment:

• NXA-WAP1000 Smart Wireless Access Point, US

Operation (FG2255-51)

• NXA-WAP1000 Smart Wireless Access Point, Operation

Outside US (FG2255-53)

• NXA-WAPZD1000 Wireless LAN Zone Director, US

Operation (FG2255-52)
