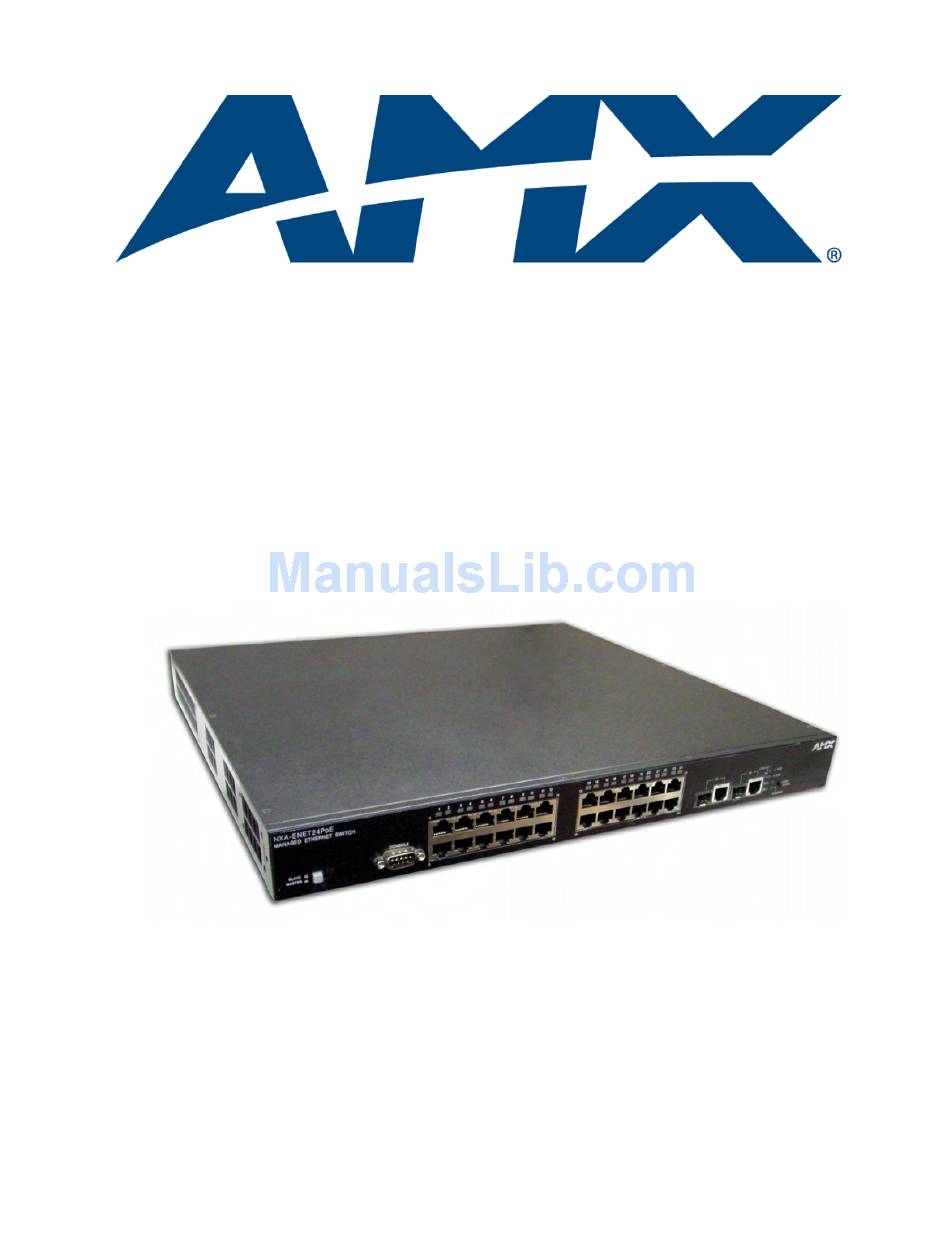

Page 1: Hardware Installation Guide
Hardware Installation Guide NXA-ENET24 24-Port Fast Ethernet Switch C o n t r o l S y s t e m A c c e s s o r i e s L a s t R e v i s e d : 1 1 / 1 5 / 2 0 0 6... - Page 2 RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products returned without a valid RMA number. AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or con- sequential damages.
-
Page 3: Industry Canada - Class A
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe A prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques,” NMB-003 édictée par le ministère des Communications. Japan VCCI Class A NXA-ENET24 Hardware Installation Guide Compliances... -
Page 4: Ce Mark Declaration Of Conformance For Emi And Safety (Eec)
Do not plug a phone jack connector in the RJ-45 port. This may damage this device. Les raccordeurs ne sont pas utilisé pour le système téléphonique! Taiwan BSMI Class A AS/NZS 3548 (1995) Class A ACN 066 352 010 NXA-ENET24 Hardware Installation Guide... -
Page 5: Safety Compliance
230 V (2P+T) via an isolation transformer ratio 1:1, with the secondary connection point labelled Neutral, connected directly to earth (ground). † Impédance à la terre NXA-ENET24 Hardware Installation Guide † supplies. If your supplies are of IT type, this unit must be powered Compliances... -
Page 6: Veuillez Lire À Fond L'information De La Sécurité Suivante Avant D'installer Le Switch
The mains cord must be <HAR> or <BASEC> marked and be of type HO3VVF3GO.75 (minimum). The supply plug must comply with CEE7/7 (“SCHUKO”). The mains cord must be <HAR> or <BASEC> marked and be of type HO3VVF3GO.75 (minimum). IEC-320 receptacle. NXA-ENET24 Hardware Installation Guide... - Page 7 Der Netzstecker muß die Norm CEE 7/7 erfüllen (”SCHUKO”). • NXA-ENET24 Hardware Installation Guide Le cordon doit avoir reçu l’homologation des UL et un certificat de la CSA. Les spe'cifications minimales pour un cable flexible sont AWG No. 18, ouAWG No.
- Page 8 Compliances NXA-ENET24 Hardware Installation Guide...
-
Page 9: Table Of Contents
Performance... 7 Management ... 7 Network Planning ...9 Introduction to Switching ... 9 Application Examples ... 9 MAX A/V Network ... 9 Network Aggregation Plan ... 10 Remote Connections with Fiber Cable ... 11 NXA-ENET24 Hardware Installation Guide Table of Contents... - Page 10 10 Mbps Ethernet Collision Domain ... 27 Cable Labeling and Connection Records ... 28 Troubleshooting ...29 Diagnosing Switch Indicators ... 29 Power and Cooling Problems... 29 Installation ... 29 In-Band Access ... 30 Stack Troubleshooting ... 30 viii ... 18 ... 27 NXA-ENET24 Hardware Installation Guide...
- Page 11 Cables ...31 Twisted-Pair Cable and Pin Assignments ... 31 10/100BASE-TX Pin Assignments... 31 Straight-Through Wiring ... 32 Crossover Wiring... 33 1000BASE-T Pin Assignments ... 33 Fiber Standards ... 34 Specifications ...35 Glossary ...37 NXA-ENET24 Hardware Installation Guide Table of Contents...
- Page 12 Table of Contents NXA-ENET24 Hardware Installation Guide...
-
Page 13: Introduction
All the 10BASE-T/100BASE-TX ports on this switch support IEEE 802.3af standard Power-over- Ethernet capabilities. Each port can detect connected 802.3af-compliant network devices, such as AMX’s NXA-WAP 200 G, other third party’s wireless access points or IP phones, and automatically supply the required DC power. -
Page 14: Network Management Arrangement
For a detailed description of the advanced features, refer to the Software Configuration Guide The switch uses DVMRP protocol to determine the routing for multicast packets. If no hosts have subscribed to the indicated multicast service, the packet will be dropped. NXA-ENET24 Hardware Installation Guide... -
Page 15: Description Of Hardware
Introduction Description of Hardware Physical Description The NXA-ENET24 and the NXA-ENET24 PoE Fast Ethernet switches measure 17.32 x 16.14 x 1.69 inches (44.0 x 41.0 x 4.3 cm). 10/100BASE-T Ports The PoE switch base unit contains 24 10BASE-T/100BASE-TX RJ-45 ports. All ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. - Page 16 Port has detected a power overload or short circuit and shut down the port’s power. The power budget for the switch has been exceeded and the port's power shut down. No powered device is connected to the port. System Status LEDs Link/Act Diag Stacking Mode PoE/Link NXA-ENET24 Hardware Installation Guide...
-
Page 17: Stack Master Button
The Stack Master button enables one switch in the stack to be selected as the master. Seven other switches can be stacked together and they should be placed in "Slave" mode. When operating in a stand- alone configuration the switch should be in "Master" mode. NXA-ENET24 Hardware Installation Guide Status Unit’s internal power supply is operating normally. -
Page 18: Mode Poe/Link Button
The standard power receptacle is for the AC power cord. It is located on the rear panel of the switch. FIG. 6 Power Supply Receptacle Mode Select Button Link/Act Diag Stacking Mode PoE/Link 100-240V~ 50-60Hz 7.5A Power Socket NXA-ENET24 Hardware Installation Guide... -
Page 19: Features And Benefits
Head-of-Line blocking Broadcast storm control Desktop or rack-mountable Stacking capability for up to eight units Management “At-a-glance” LEDs for easy troubleshooting Network management agent: Manages switch in-band or out-of-band Supports Telnet, SNMP/RMON and web-based interface NXA-ENET24 Hardware Installation Guide Introduction... - Page 20 Introduction NXA-ENET24 Hardware Installation Guide...
-
Page 21: Network Planning
Some typical applications are described below. MAX A/V Network The switch is an excellent choice for mixed AMX equipment such as PoE enabled NXA-WAP 200 G wireless access points, and non-PoE devices such as AVMs, Breakout Boxes and MAX. -
Page 22: Network Aggregation Plan
Number 1 - 24 Ports 1 - 24 can be used to connect AMX’s Master, AVMs, Breakout Boxes, WAP 200 Gs and/ or other Ethernet based devices requiring 10 or 100 Mbps data throughput. In addition, ports 1 - 24 support PoE with automatic power detection. -
Page 23: Remote Connections With Fiber Cable
Server Farm Remote Switch Stack Unit ID Console Console Slave Slave Master Master FIG. 9 Remote Connections with Fiber Cable NXA-ENET24 Hardware Installation Guide Stack Unit ID Console Slave Master Stack Unit ID Console Slave Master Stack Unit ID Console... -
Page 24: Making Vlan Connections
Stack Unit ID Console Slave Master Tagged Ports Untagged Ports VLAN unaware Finance switch Marketing Finance VLAN 3 VLAN 4 VLAN 3 Link/Act Diag Stacking Mode PoE/Link Tagged Port VLAN aware switch R&D Testing VLAN 1 VLAN 2 NXA-ENET24 Hardware Installation Guide... -
Page 25: Installing The Switch
Electrical surge suppression Separation of electrical wires (switch related or other) and electromagnetic fields from data based network wiring Safe connections with no damaged cables, connectors or shields RJ-45 Connector FIG. 11 RJ-45 Connections NXA-ENET24 Hardware Installation Guide Installing the Switch... -
Page 26: Equipment Checklist
Serial cable Rack mounting kit Quick Start Guide Hardware Installation and Software Configuration manuals can be downloaded via AMX.com Optional Rack-Mounting Equipment If you plan to rack-mount the switch, be sure to have the following equipment available: Four mounting screws for each device you plan to install in a rack—these are not included... -
Page 27: Mounting
3. If installing a single switch only, turn to “Connecting to a Power Source” at the end of this chapter. 4. If installing multiple switches, mount them in the rack, one below the other, in any order. NXA-ENET24 Hardware Installation Guide Installing the Switch... -
Page 28: Desktop Or Shelf Mounting
3. If installing a single switch only, go to “Connecting to a Power Source” at the end of this chapter. 4. If installing multiple switches, attach four adhesive feet to each one. Place each device squarely on top of the one below, in any order. NXA-ENET24 Hardware Installation Guide... -
Page 29: Installing A Third Party Sfp Transceiver
It is not possible to stack PoE switches with non-PoE switches; however, establishing trunks between the two can provide similar results. The stacking transceiver must only be installed in the port 25 SFP slot. NXA-ENET24 Hardware Installation Guide L in k /A c t... -
Page 30: Installing A Stacking Transceiver
Sta ckin Sta ckin Mo de Mo de /Lin k /Lin k Slave Lin k/A Lin k/A PW R PW R Dia g Dia g Sta ckin Sta ckin Mo de Mo de /Lin k /Lin k NXA-ENET24 Hardware Installation Guide... -
Page 31: Connecting Switches In A Ring-Topology Stack
5. For ring-topology stacking, complete the connections by plugging one end of a stack cable into the Up port on the bottom unit and the other end into the Down port on the top unit. FIG. 18 Connecting Switches in a Ring-topology Stack NXA-ENET24 Hardware Installation Guide Installing the Switch... - Page 32 Only one switch in the stack can operate as the Master, all other units operate in slave mode. If more than one switch in the stack is selected as Master, or if no switches are selected, the stack will not function. NXA-ENET24 Hardware Installation Guide...
-
Page 33: Connecting To A Power Source
3. Check the front-panel LEDs as the device is powered on to be sure the PWR LED is lit. If not, check that the power cable is correctly plugged in. NXA-ENET24 Hardware Installation Guide 100-240V~ 50-60Hz 7.5A Installing the Switch... -
Page 34: Connecting To The Console Port
The serial port’s configuration requirements are as follows: Default Baud rate—9,600 bps Character Size—8 Characters Parity—None Stop bit—One Data bits—8 Null Modem PC’s 9-Pin DTE Port <---------------------------- 3 TXD (transmit data) -----------------------------> 2 RXD (receive data) ------------------------------ 5 SGND (signal ground) NXA-ENET24 Hardware Installation Guide... -
Page 35: Making Network Connections
See “Cables” on page 31. for further information on cabling. Do not plug a normal phone jack connector into an RJ-45 port. This will damage the switch. Use only twisted-pair cables with RJ-45 connectors that conform to FCC standards. NXA-ENET24 Hardware Installation Guide Making Network Connections... -
Page 36: Connecting To Max, Avm, Waps, Breakout Boxes, Servers, Hubs And Switches
Otherwise back pressure jamming signals may degrade overall performance for the segment attached to the hub. 3. As each connection is made, the green Link LED (on the switch) corresponding to each port will light to indicate that the connection is valid. NXA-ENET24 Hardware Installation Guide... -
Page 37: Network Wiring Connections
Dirty fiber terminators on fiber optic cables will impair the quality of the light transmitted through the cable and lead to degraded performance on the port. NXA-ENET24 Hardware Installation Guide Equipment Rack (side view) -
Page 38: Connectivity Rules
1000BASE-T is a simple test of the cable installation to be sure that it complies with the IEEE 802.3ab standards. Li nk /A ct P W R P oE D ia g S ta ck in g M od P oE /L in k NXA-ENET24 Hardware Installation Guide... -
Page 39: 1000 Mbps Gigabit Ethernet Collision Domain
100BASE-FX Single-mode 9/125 micron core single-mode fiber (SMF) 10 Mbps Ethernet Collision Domain Maximum Ethernet Cable Length Cable Type Twisted Pair, Category 3 or better 100-ohm UTP NXA-ENET24 Hardware Installation Guide Maximum Cable Length 100 m (328 ft) Fiber Bandwidth Maximum Cable Length... -
Page 40: Cable Labeling And Connection Records
Use sequential numbers for cables that originate from the same equipment. Differentiate between racks by naming accordingly. Label each separate piece of equipment. Display a copy of your equipment map, including keys to all abbreviations at each equipment rack. NXA-ENET24 Hardware Installation Guide... -
Page 41: Troubleshooting
(such as the power cord or network cabling), test them in an alternate environment where you are sure that all the other components are functioning properly. NXA-ENET24 Hardware Installation Guide Action • Internal power supply may be disconnected. Check connections between the switch, the power cord and the wall outlet. -
Page 42: In-Band Access
Check that only one Master Select button is pressed in. Check that all switches in the stack are powered on. After checking all items, reboot all the switches in the stack. If the problem is still not resolved, contact your dealer for assistance. NXA-ENET24 Hardware Installation Guide... -
Page 43: Cables
1, 2, 3, and 6 at the other end of the cable. When using any RJ-45 port on this switch, you can use either straight-through or crossover cable. NXA-ENET24 Hardware Installation Guide Cables... -
Page 44: Straight-Through Wiring
-48V feeding power (Negative V port -48V feeding power (Negative V port EIA/TIA 568B RJ-45 Wiring Standard 10/100BASE-TX Straight-through Cable White/Orange Stripe Orange White/Green Stripe Blue White/Blue Stripe Green White/Brown Stripe Brown Stripe port port port port End B NXA-ENET24 Hardware Installation Guide... -
Page 45: Crossover Wiring
Cables must also pass test parameters for Return Loss and Equal-Level Far-End Crosstalk (ELFEXT). These tests are specified in the ANSI/TIA/EIA-TSB-95 Bulletin, “The Additional Transmission Performance Guidelines for 100 Ohm 4-Pair Category 5 Cabling.” NXA-ENET24 Hardware Installation Guide EIA/TIA 568B RJ-45 Wiring Standard 10/100BASE-TX Crossover Cable... -
Page 46: Fiber Standards
TIA 568-B will allow the use of 50/125 micron multimode optical fiber in both the horizontal and backbone in addition to the types listed above. All optical fiber components and installation practices must meet applicable building and safety codes. NXA-ENET24 Hardware Installation Guide... -
Page 47: Specifications
Wire speed Flow Control • Full Duplex: IEEE 802.3x • Half Duplex: Back pressure Management Features In-Band Management Telnet, SSH, or SNMP manager Out-of-Band Management RS-232 DB-9 console port Software Loading TFTP in-band, or XModem out-of-band NXA-ENET24 Hardware Installation Guide Specifications... - Page 48 • EN 61000-3-2/3 • FCC Class A • VCCI Class A • C-Tick - AS/NZS 3548 (1995) Class A Immunity EN 61000-4-2/3/4/5/6/8/11 Safety • CSA/CUS (CSA 22.2.950 & UL 1950) • EN60950 (TÜV/GS) • IEC 60950 (CB) NXA-ENET24 Hardware Installation Guide...
-
Page 49: Glossary
Fast Ethernet A 100 Mbps network communication system based on Ethernet and the CSMA/CD access method. Gigabit Ethernet A 1000 Mbps network communication system based on Ethernet and the CSMA/CD access method. NXA-ENET24 Hardware Installation Guide... - Page 50 Network Diameter Wire distance between two end stations in the same collision domain. RJ-45 Connector A connector for twisted-pair wiring. Switched Ports Ports that are on separate collision domains or LAN segments. Telecommunications Industry Association NXA-ENET24 Hardware Installation Guide...
- Page 51 A Virtual LAN is a collection of network nodes that share the same collision domain regardless of their physical location or connection point in the network. A VLAN serves as a logical workgroup with no physical barriers, allowing users to share information and resources as though located on the same LAN. NXA-ENET24 Hardware Installation Guide...
- Page 52 Glossary NXA-ENET24 Hardware Installation Guide...
- Page 53 Glossary NXA-ENET24 Hardware Installation Guide...
- Page 54 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
