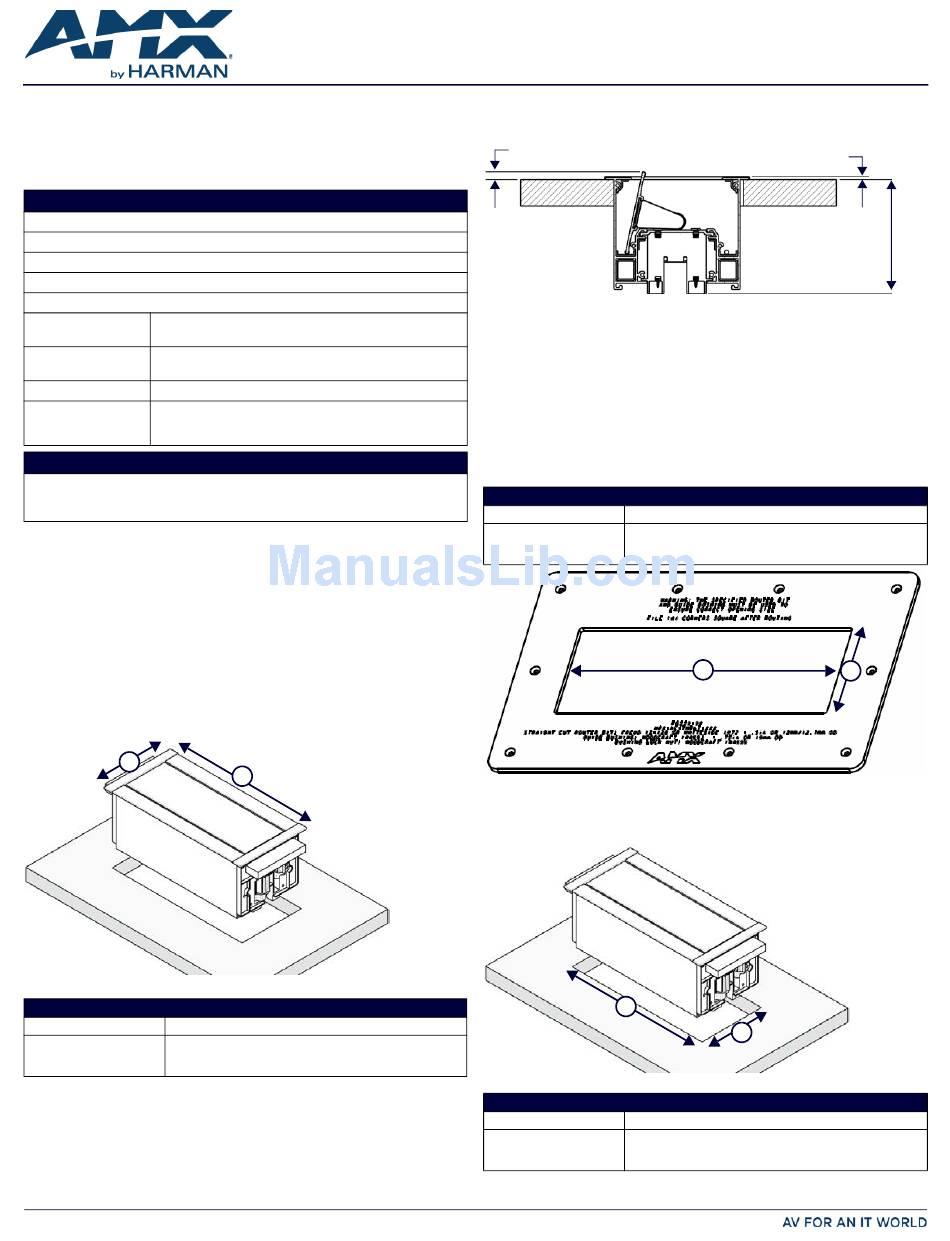

Overview
The HPX-AC-TMPLT-600/900/1200 HydraPort
easy and accurate method of creating a hole in the installation surface for HydraPort
HPX-600, HPX-900and HPX-1200 Connection Ports (Base Assemblies).
Use the HPX Router Guides along with the required accessories to create the hole in the
mounting surface to install the HPX Base Assemblies.
SPECIF ICATIONS
Models Available:
• HPX-AC-TMPLT-600 (FG559-92) - For use with HPX-600
• HPX-AC-TMPLT-900 (FG559-93) - For use with HPX-900
• HPX-AC-TMPLT-1200 (FG559-94) - For use with HPX-1200
Dimensions:
Outside Dimensions: Horizontal (all) : 18.90" (480 mm)
Vertical (all): 11.61" (295 mm)
Routing Area (cutout) These dimensions vary for each template. See the Routing Area
Dimensions:
Dimensions for HPX-AC-TMPLT Router Guides section for details.
Thickness: 0.25" (6.35 mm)
Weight: • HPX-AC-TMPLT-600: 3.85 lbs (1.75 kg)
• HPX-AC-TMPLT-900: 4.25 lbs (1.93 kg)
• HPX-AC-TMPLT-1200: 4.60 lbs (2.09 kg)
REQUIRED ACCESSORIES (ACCESSORIES NOT INCLUDED)
• Straight-Cut Router bit: Freud 12-128 or Whiteside 1072 (0.5" or 12mm / 12.7mm OD)
• Guide Bushing: Woodcraft 144693 (.75" or 19 mm OD)
• Bushing Lock Nut (Woodcraft 144696)
CAUTION: Only a professional, AMX-qualif ied installer should perform the installation of
HydraPort Base Assemblies. Installation must conform to all local codes. These products
may not be installed by the end-user.
The installation of HydraPort Base Assemblies requires specif ic woodworking skills. This
installation should be performed by an experienced person, comfortable with these type
of woodworking operations. Improper installation may result in damage to the mounting
surface.
Selecting a Suitable Location for the HPX Base Assembly
Care must be taken to ensure that the HydraPort system does not interfere with the
normal use of the work space. For example, on a table or work surface, ensure that the
system does not interfere with the user's legs when they are seated at the table.
Above-Surface Dimensions of HPX Base Assemblies
Refer to FIG. 1 and the following table for the above-surface dimensions of the HPX
Base Assemblies:
A
FIG. 1 ABOVE-SURFACE DIMENSIONS OF HPX BASE ASSEMBLIES
DIMENSIONS OF HPX BASE ASSEMBLIES
A
Length of " ": 5.43" (138 mm)
B
Length of " ": HPX-600: 8.19" (208 mm)
HPX-900: 11.14" (283 mm)
HPX-1200: 14.09" (358 mm)
HPX-AC-TMPLT
®
Installation Router Guides provide an
B
HydraPort Base Assembly
Mounting Surface
HPX-600/900/1200 Installation Router Guides
Below-Surface Dimensions of HPX Base Assemblies
FIG. 2 indicates the below-surface dimensions required for the HPX-600/900/1200
Base Assemblies:
0.29" (7.3 mm) MAX
Allow 11.23" (285 mm) for Retractable Cable Modules
DIMENSIONS OF THE HPX BASE ASSEMBLY (BELOW THE TABLE)
FIG. 2
• The HydraPort system requires a mounting surface thickness between 0.5"
(13 mm) to 2" (51 mm).
Note: Use included spacer for any table thickness between 0.5" ( 13mm) to 0.75"
(19mm).
• The HydraPort base assembly will have a total depth of 4.449" (113 mm).
Note: For installations with (optional) Retractable Cable Modules, the HydraPort system
will have a total assembly depth of 11.23" (285 mm).
Routing Area Dimensions for HPX-AC-TMPLT Router Guides
Refer to FIG. 3 and the following table for the dimensions of the routing area (template
cutout) of the HPX-AC-TMPLT Router Guides:
DIMENSIONS OF ROUTING AREA FOR HPX-AC-TMPLT ROUTER GUIDES
C 5.05" (128.25 mm)
Length of " ":
Length of " D ": HPX-AC-TMPLT-600: 7.85" (199.35 mm)
HPX-AC-TMPLT-900: 10.78" (274.25 mm)
HPX-AC-TMPLT-1200: 13.75" (349.25 mm)
FIG. 3 HPX-AC-TMPLT ROUTER GUIDES - ROUTING AREA
Hole Cutout Dimensions for the Mounting Surface
Refer to FIG. 4 and the following table for the dimensions of the actual hole cut out in
the mounting surface, resulting from using the Router Guides and required accessories:
F
FIG. 4 HOLE CUTOUT DIMENSIONS FOR THE MOUNTING SURFACE
HOLE CUTOUT DIMENSIONS FOR THE MOUNTING SURFACE
E 4.80" (122mm)
Length of " ":
F HPX-AC-TMPLT-600: 7.60" (193 mm)
Length of " ":
HPX-AC-TMPLT-900: 10.55" (268 mm)
HPX-AC-TMPLT-1200: 13.50" (343 mm)

QUICK START GUIDE

0.12" (3 mm)
4.449" (113 mm)
D
C
HydraPort Base Assembly
E
Mounting Surface
