Rodix FC-70 Plus Series Adjustments And Set Up page 3

OFF/ON CONTROL GUIDE
See section 4 of the Application Note for more
details on the REMOTE OFF/ON CONTROL guide.
A) LOW CURRENT SWITCH
1 2 3 4
FC-70 SERIES TERM STRIP TB-2
INPUT
MALE LINE CORD
HOT
Bl #14
120 VAC
50/60 Hz
COM
Wh #14
GND
Gr #14
MODEL INPUT VAC
FC-70
B)
LOW VOLTAGE INPUT SWITCHING
(DC Voltage from PLC or FC-90 Plus)
10-30 VDC INPUT VOLTAGE
OFF/ON CONTROL
- +
1 2 3 4
FC-70 SERIES TERM STRIP TB-2
ON/OFF 5 AMP
Bl #14
POWER
Wh #20
Wh #14
AMPS
120 VAC 5
Bl #14
LOAD
1
TB1
HOT
2
COM
3
COM
4
Run
P/N 24-214
4
J1
AMP.
3
POT
2
+12-24
- Gnd
TB2 1
GND
OUTPUT
0-120 V
RUN
JUMPER
Ext.
Volts
RODIX, INC.
rd
2316 23 Ave., Rockford, IL 61104
Toll Free (800) 562-1868, FAX (815) 316-4701
Email custserve@rodix.com
www.rodix.com
FC-70 24-214.doc 10/1/2015 Page 3
RODIX INC.

FEEDER CUBE
FC-70 Series

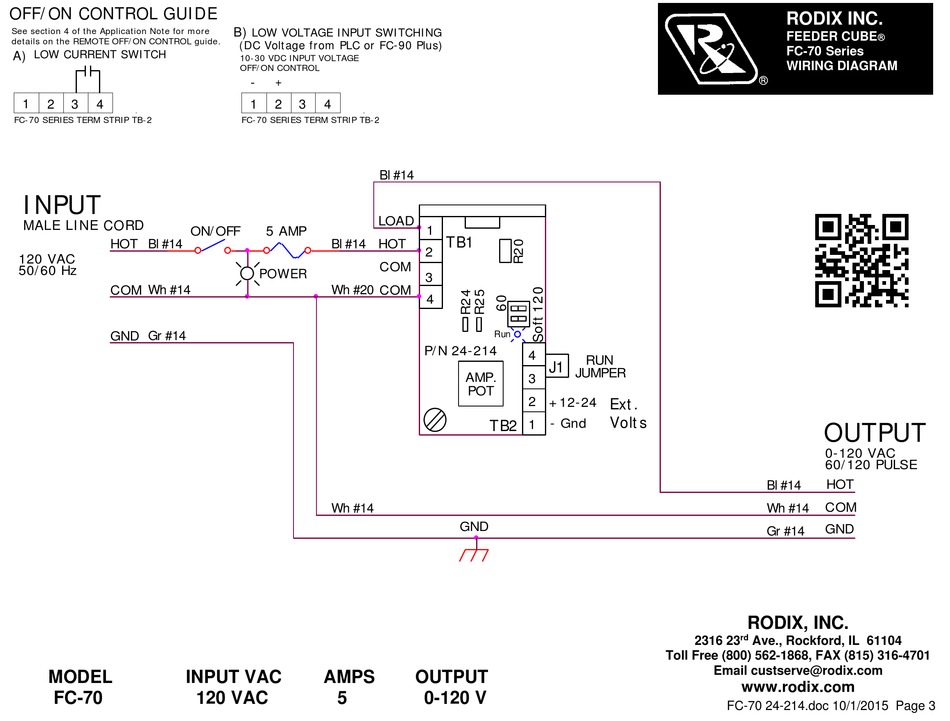

WIRING DIAGRAM

OUTPUT
0-120 VAC
60/120 PULSE
HOT
Bl #14
COM
Wh #14
GND
Gr #14
