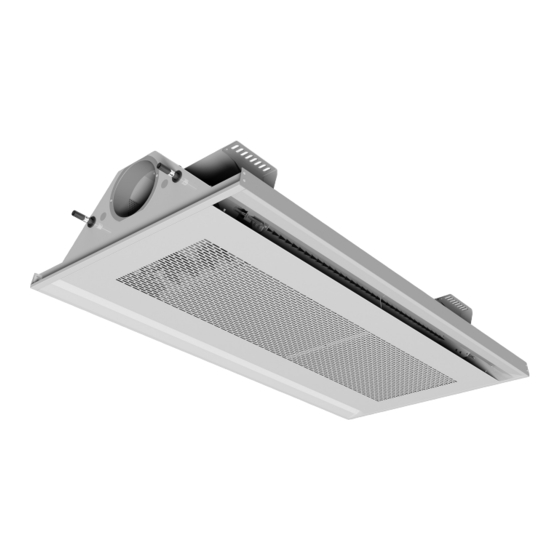

Lindab Premax I-60 Quick Installation Manual
Hide thumbs
Also See for Premax I-60:
- Installation instructions manual (35 pages) ,
- Installation instruction (16 pages)
Table of Contents
Advertisement
Quick Links
l i nd ab | w e s i m p l i f y c on s t r u ct i on
LindabPremax / Premum
Quick installations guide
© 2021.03 Lindab Ventilation. All forms of reproduction without written permission are forbidden.
is the registered trademark of Lindab AB.
Lindab's products, systems, product and product group designations are protected by intellectual property rights (IPR).
Advertisement
Table of Contents
Related Manuals for Lindab Premax I-60
Summary of Contents for Lindab Premax I-60
- Page 1 LindabPremax / Premum Quick installations guide © 2021.03 Lindab Ventilation. All forms of reproduction without written permission are forbidden. is the registered trademark of Lindab AB. Lindab's products, systems, product and product group designations are protected by intellectual property rights (IPR).
- Page 2 Tectite tool 12 mm Tectite tool small 12 mm (Order Screwdriver (Order no: 884087) no: 646881) Spirit level Lindab PC410 Bits and drills Deburring tool (Order no: 103344) Vacum cleaner Dust-cleaner Lindab reserves the right to make changes without prior notice 2021-03-08...
-
Page 3: Packing And Unpacking
| we si m pli fy co nstr uct io n Quick installations guide Premax/Premum Packing and unpacking 10-25 kg ! For content please refer to Installation instruction Lindab reserves the right to make changes without prior notice 2021-03-08... - Page 4 Premax - I-60 - 15 - 125 - A1 - 2.4 - 60 - 15 Project : xxxxxx xxxxxxxx Mark : xxxxx Nozzles : xxx Plugs : xxx Sign. : Product ID : xxxxxxx Lindab reserves the right to make changes without prior notice 2021-03-08...
- Page 5 Premum 12 mm Premax 12 / 15 mm A (L*) Premum / Premax Y-60 / Z-60 Premum / Premax I-60 / I-62 Premum / Premax X-60 Plus feature models Lindab reserves the right to make changes without prior notice 2021-03-08...
-
Page 6: Material Data
PN10 according to EN 1333: 2006. This means the maximal working pressure for the products at a water temperature of 20°C must not exceed 10 bar. Lindab reserves the right to make changes without prior notice 2021-03-08... -
Page 7: Water Connections
| we si m pli fy co nstr uct io n Quick installations guide Premax/Premum Water connections Premum/Premax I-60, I-62, X-60 cooling (standard), Y-60, Z-60 (plus features) 1, 2, 3, 4, 7, 8 Lindab reserves the right to make changes without prior notice 2021-03-08... - Page 8 | w e si mp l i fy c on st ru c t i on Quick installations guide Premax/Premum Water connections Premum/Premax I-60, I-62, X-60, Y-60, Z-60 cooling and heating (plus feature). 1, 2, 3, 4, 7, 8 (I-60, I-62, Y-60, Z-60) FRONT (I-60, I-62, Y-60, Z-60) (X-60) Conn.
-
Page 9: Before Installation
Flexible hoses and Push-on valves = 70 mm (to ensure you can open the couplings again). Lindab flexible hoses are available with straight end (male) for direct connection to Lindab valves also. Lindab reserves the right to make changes without prior notice... - Page 10 Supply air ( A, B, C, D ) and water ( 1, 2, 3, 4, 7, 8 ). 1, 2, 3, 4, 7, 8 1, 2, 3, 4, 7, 8 3, 4, 7, 8 3, 4, 7, 8 Lindab reserves the right to make changes without prior notice 2021-03-08...
- Page 11 Heating link - S Cooling link - S Supply link - N Supply link - L Supply in - N Supply in 24V - L LINDAB (with protection covers, optional). Lindab reserves the right to make changes without prior notice 2021-03-08...
-
Page 12: Installation
Re-insert T-bars and ceiling plates Heavy load ! 10-25 Longest Premum/ Premax kg ! models are 3.6 meters with a weight at aprox. 65 kg. Use professional lifting equipment. Lindab reserves the right to make changes without prior notice 2021-03-08... - Page 13 Lenhgt 1,2m -2,3m Premum / Premax 1,2m < L ≤ 2,0m Position of JetCone adjustment pins Position JetCones [Pa] 7 8 9 Date [Pa] [l/s] Signature stat Pos. Rev.Premum/Premax-04032016 [l/s] 2011-09-30 Lindab reserves the right to make changes without prior notice 2021-03-08...
-
Page 14: Maintenance
| w e si mp l i fy c on st ru c t i on Quick installations guide Premax/Premum Measuring static nozzle pressure Lindab PC410 Order no.: 103344 stat Room Maintenance Lindab reserves the right to make changes without prior notice 2021-03-08... - Page 15 We at Lindab have therefore made it our most important objective to contribute to an indoor climate that improves people’s lives. We do this by developing energy-efficient ventilation solutions and durable building products.
