Rize I-126Q Assembly Instructions

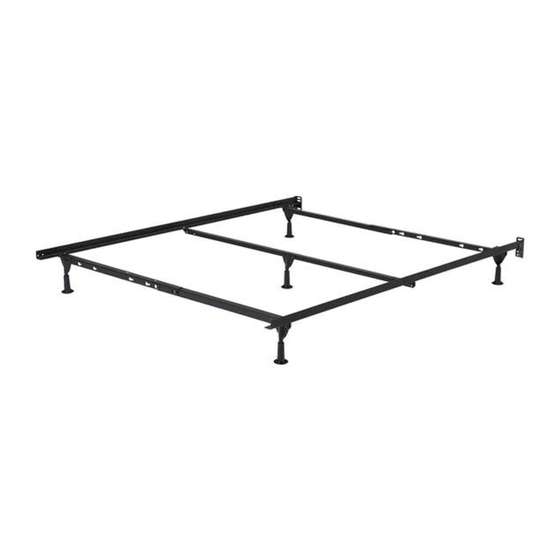

Insta-Lock Bed Frame Assembly Instructions
Use with models:I-126Q, I-115PR, I-416QPG, I-414PR

Parts included:

All frames include:
(2) Side Rails
(2) End Caps
(2) Screws
(2) Thumb Nuts
(1) Center Rail
1
Set side rails out with the headboard brackets
on the same end. Swing out cross rails from
the side rails to a 90° angle.
3
Find the keyholes on the cross rails needed for the appropriate size bed. Insert rivets on the other cross rail into
the selected keyholes. Slide arms away from each other to lock the position. Repeat on the other side of the bed.
End Cap
End Cap
4

If you are using this frame for a Full or Queen size bed,

attach the center rail to the side rails. Line up the hole at
the end of the center rail under the hole in the middle
of the side rails. Secure with a screw and thumb nut.
Screw
Thumb Nut
Full
Foot parts for I-126Q & I-416QPG
(5) Glides
Headboard
Bracket
Queen
Full
Twin
Queen
www.rizebeds.com | 1-844-545-8865 | orders@rizebeds.com
2
Install the glides OR the sockets & rollers on the
legs, including the leg on the center rail.
Keyhole
5
Slip the end caps over the foot ends of the side
rails (opposite the headboard brackets).
3
Foot parts for I-115PR & I-414PR
(4) Plastic Sockets
(4) Rollers
(1) Glide
Plastic
Socket
Glide
Roller
Rivets
Copyright Rize 10/25/2019
