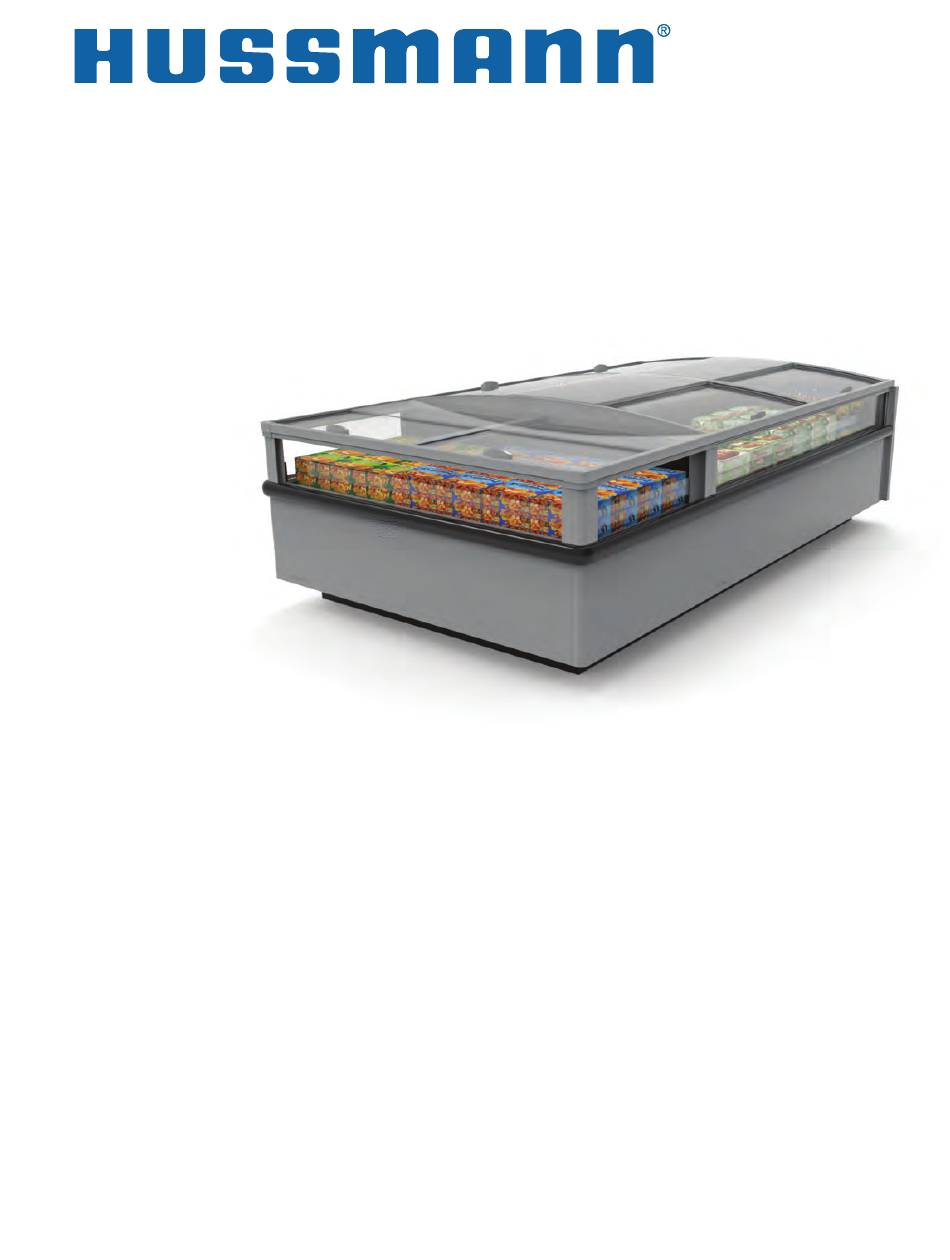

- Page 1 Glass Lids Æ for Low Temperature Single Deck Wall & Island Merchandisers Upgrade Installation Manual IMPORTANT Keep in store for P/N 0531456_D future reference! October 2021 Spanish 0534094_D INSTALL INSTR SINGLE DECK WALL & ISLAND MERCHANDISERS WITH GLASS LIDS RETOFIT...
-
Page 3: Before You Begin
Read these instructions completely and carefully. IMPORTANT IMPORTANT This manual was written in accordance with originally prescribed equipment that is subject to change. Hussmann reserves the right to change or revise specifications and product design in connection with any feature of our products. STOP STOP... -
Page 4: Revision History
August 31, 2018 * * * * * * * * * * * * * * * * * * * * * * * * * * This warning does not mean that Hussmann products TOOL LIST will cause cancer or reproductive harm, or is in violation of any product-safety standards or requirements. -
Page 5: Installation
P/N 0531456_D INSTALLATION LOCATION SERIAL PLATE LOCATION These glass lids are designed to be installed Direct a flashlight through the return air grille on top of merchandisers displaying products to locate the serial plate. A secondary serial in air conditioned stores where temperature... -
Page 6: Case Leveling
CASE LEVELING Check that merchandisers are level before installing lids. Merchandisers must be installed level for the glass lids to correctly operate, to ensure proper operation of the refrigeration system and to ensure proper drainage of defrost water. lineup leveling must start from the highest point of the store floor Use a 48 inch (1220 mm) or longer level for end-to-end leveling. - Page 7 When loss or damage is not apparent until after equipment is uncrated, retain all packing materials and submit a written request to the carrier for inspection, within 15 days. Improper handling may cause damage to the glass lids when unloading. Use caution when handling glass. Wear...
- Page 8 This includes, but is not limited to, such items as doors, lights, fans, heaters, and thermostats. restocking. P/N 0531456_D U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM...
- Page 9 Some lids retrofit may require a change in the fan motors to energy efficient fan motors. Follow the steps below to change the fan motors prior to installing the glass lids. For access to evaporator fans: 1. Turn off power.
- Page 10 This includes, but is not limited to, such items as doors, lights, fans, heaters, and thermostats. P/N 0531456_D U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM...
- Page 11 This includes, but is not limited to, such items as doors, lights, fans, heaters, and thermostats. Excel Low Temperature HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
-
Page 12: Frame Types
See installation steps on the next page. See separate data sheets for list of parts. NOTE: Hussmann does not recommend using a power drill. If using a power drill, Do NOT use more than 2 N/m torque. P/N 0531456_D U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM... - Page 13 AVOID SERIOUS PERSONAL INJURY. Use caution when handling glass. Always wear protective eye wear and gloves when handling glass. Wet or damp glass may be slippery. End Case Retainer Solid Case Glass Case Excel Low Temperature HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
- Page 14 Correct ALIGNED Incorrect MISALIGNED DETAIL A DETAIL B When its using 2 or more cassettes make sure that the handle doors of the cassettes are aligned P/N 0531456_D U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM...
- Page 15 To identify the front side of the cassette make sure the door without the glass stopper goes to the return air side. This is in order to avoid condensation on the lids. Excel Low Temperature HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
- Page 16 6. Gap profiles are installed between frame cassettes and between cassettes and ends. Before installing, make sure the gap profile is cleaned and the cassettes are cleaned and aligned. Gap Profile Gap Profile Gap Profile Gap Profile P/N 0531456_D U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM...
- Page 17 ALIGN IT ON BOTH SIDES WITH THE HOLES SHOWN Excel Low Temperature HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. THEN SCREW THE FILLER WITH THE CASSETTE MAKE SURE THERE ISN'T ANY GAP BETWEEN FILLER, FLAT END AND CASSETTE AFTER INSTALLED...
- Page 18 Install the cover plate (use the adhesive tape, and remove the tape liner). Inner Corner GABLE PARTS 2. Install the gable (Remove the adhesive tape liner). Cover Plate Glass Gable P/N 0531456_D U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM...
- Page 19 ALIGNING THE HOLES ON THE CASSETTE WITH THE HOLES ON THE INNER CORNER 1. PTMs attach to the lid frames and are one-sided or two sided. SCREW IT BOTH SIDES THEN INSTALL THE CORNERS AND THE DECOR Excel Low Temperature HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
- Page 20 At no time should merchandisers be stocked beyond the load limits indicated. Improper stocking can cause poor performance that results in spoiled food. P/N 0531456_D U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM...
- Page 21 ® To obtain warranty information or other support, contact your Hussmann representative. Please include the model and serial number of the product. Hussmann Corporation, Corporate Headquarters: Bridgeton, Missouri, U.S.A.
