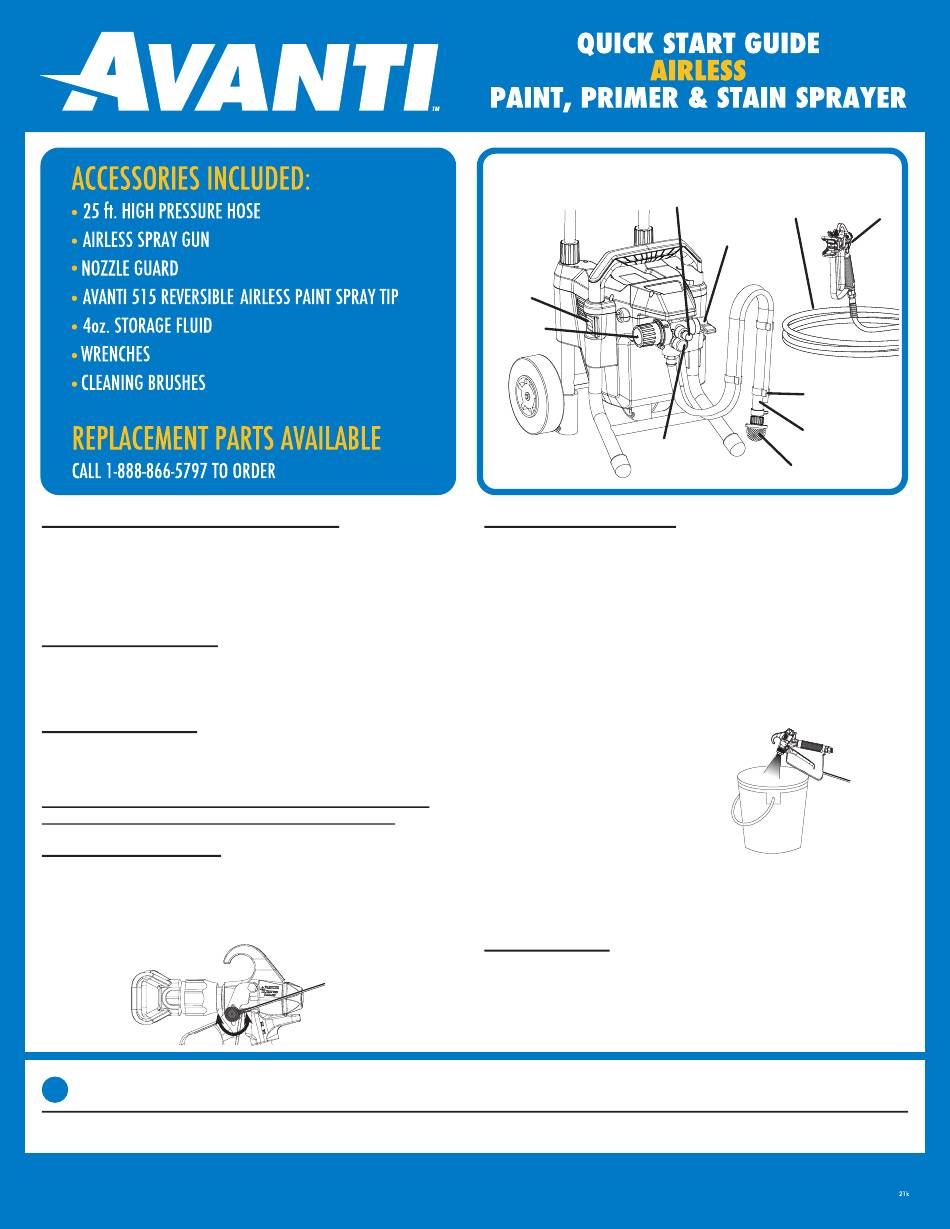

Read Owner's Manual Before Use
WARNING!
TO PREVENT SERIOUS INJURY:
Quick Start Guide is not intended to replace the
Owner's Manual & Safety Instructions. Before use,
read all safety warnings and instructions therein to
ensure proper usage and to avoid personal injury.
Personal Protection
WARNING!
TO PREVENT SERIOUS INJURY: Wear
ANSI-approved safety goggles, NIOSH-approved
respirator, and heavy-duty work gloves during use.
Solvent Selection
WARNING!
TO PREVENT SERIOUS INJURY: Only water-based
materials or materials with a minimum flash point of 38°C
(100°F) should be used for spraying and cleaning.
Only use water or mineral spirits for priming and cleaning.
Only use water-based or oil-based paint for spraying.
Lock/Unlock Trigger
WARNING!
TO PREVENT SERIOUS INJURY: Risk of
Injection - Set Trigger Lock when Spray Gun not in use.
• Rotate Trigger Lock all the way back to lock Trigger.
• Rotate Trigger Lock forward to unlock Trigger.

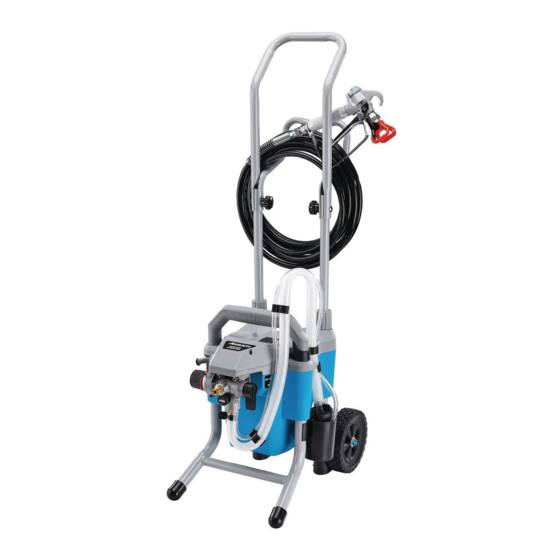

Set Up
1
Assemble Sprayer according to Owner's Manual.
57042
This
Trigger
Lock
For technical questions, please call 1-888-866-5797.
Spray
Hose
Outlet
Power
Switch
Pressure
Knob
Prime
Button
Depressurize Sprayer
WARNING!
TO PREVENT SERIOUS INJURY: Risk of
Injection - Unit maintains pressure after shut-down
- Before servicing, cleaning, or removing any
part, shut off power and relieve pressure.
1.
Turn Power Switch off.
2.
Lock Trigger.
3.
Reverse Spray Tip.
4.
Turn Pressure Knob to lowest setting.
5.
Rotate PRIME/SPRAY Valve to SPRAY position.
6.
Point Spray Gun at interior side of
empty grounded metal container.
Hold Trigger Guard against
container to ground Spray Gun.
7.
Unlock Trigger.
8.
Press Trigger until pressure
is relieved, then release
and lock Trigger.
9.
Rotate Spray Tip to SPRAY position.
10. Rotate PRIME/SPRAY Valve to PRIME
position when Sprayer not in use.
Clean Sprayer
Clean sprayer immediately after use to prevent permanent
damage. Returns not accepted and warranty void if sprayer
is not properly cleaned immediately after every use.
Spray
Spray
Prime/
Gun
Hose
Spray
Valve
Priming
Hose
Suction
Hose
Garden Hose
Adaptor
Trigger
Guard
Page 1
