ASA 4.0 Advanced
Issued on 01/08/18
R. 01
This manual is integrant and essential to the product. Carefully read the instructions contained herein as they provide important
•
hints for use and maintenance safety.
This device is to be used only for the purposes it has been designed to. Other uses should be considered improper and
•
dangerous. The manufacturer is not responsible for possible damages caused by improper, erroneous and irrational uses.
Elettronica Santerno is responsible for the device in its original setting.
•
Any changes to the structure or operating cycle of the device must be performed or authorized by the Engineering Department
•
of Elettronica Santerno.
Elettronica Santerno assumes no responsibility for the consequences resulting by the use of non-original spare parts.
•
Elettronica Santerno reserves the right to make any technical changes to this manual and to the device without prior notice. If
•
printing errors or similar are detected, the corrections will be included in the new releases of the manual.
The information contained herein is the property of Elettronica Santerno and cannot be reproduced. Elettronica Santerno
•
enforces its rights on the drawings and catalogues according to the law.
- 15P0093B100 -

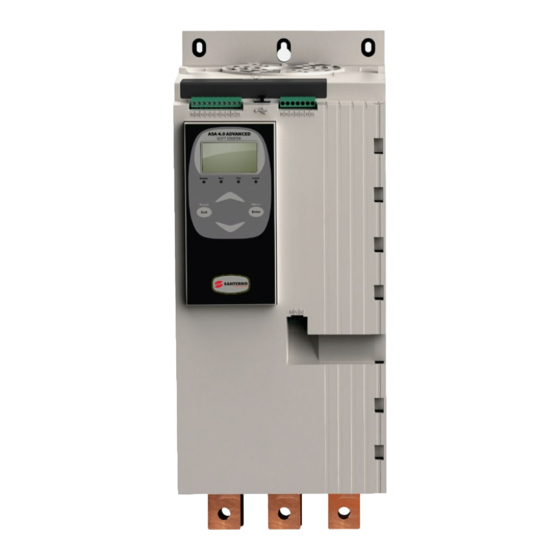

SOFT STARTER
User Manual
Elettronica Santerno S.p.A.
Via della Concia 7, 40023 Castel Guelfo (BO) Italy
Tel. +39 0542 489711
www.santerno.com,
–
Fax +39 0542 489722
info@santerno.com
Advertisement
Table of Contents
Related Manuals for Santerno ASA4.0 Advanced
Summary of Contents for Santerno ASA4.0 Advanced
- Page 1 Elettronica Santerno assumes no responsibility for the consequences resulting by the use of non-original spare parts. • Elettronica Santerno reserves the right to make any technical changes to this manual and to the device without prior notice. If • printing errors or similar are detected, the corrections will be included in the new releases of the manual.
-
Page 2: Table Of Contents
Contents About This Manual ..............................4 Disclaimer ......................................4 Caution Statements..............................5 Electrical shock risk ..................................5 Unexpected Operation ..................................5 Avertissements à l'attention des clients canadiens ........................6 System Design................................7 Feature List ....................................7 Model Code ....................................7 Model Selection .....................................7 Current Ratings .....................................8 Dimensions and Weights ................................9 Physical Installation ..................................9 Accessories ....................................10... - Page 3 Displays .......................................31 Operation .................................. 33 Start, Stop and Reset Commands ..............................33 Command Override ..................................33 Auto-Start/Stop ....................................33 PowerThrough .....................................33 Emergency Mode ..................................34 Auxiliary Trip ....................................34 Typical Control Methods ................................34 Soft Start Methods..................................35 Stop Methods ....................................37 8.10 Pump Clean ....................................39 8.11 Reverse Direction Operation ...............................39 8.12 Jog Operation ....................................40 8.13...
-
Page 4: About This Manual
About This Manual WARNING Indicates a hazard that may cause personal injury or death. CAUTION Indicates a hazard that may damage the equipment or installation. NOTE Provides helpful information. Disclaimer The examples and diagrams in this manual are included solely for illustrative purposes. The information contained in this manual is subject to change at any time and without prior notice. -
Page 5: Caution Statements
Caution Statements Caution Statements cannot cover every potential cause of equipment damage but can highlight common causes of damage. It is the installer's responsibility to read and understand all instructions in this manual prior to installing, operating or maintaining the equipment, to follow good electrical practice including applying appropriate personal protective equipment and to seek advice before operating this equipment in a manner other than as described in this manual. -
Page 6: Avertissements À L'attention Des Clients Canadiens
Avertissements à l'attention des clients canadiens AVERTISSEMENT L'icône AVERTISSEMENT ci-contre signale les informations concernant des risques pouvant entraîner des blessures graves, voire mortelles. Pour votre sécurité, veuillez consulter les avertissements sur cette page ou demander une copie du présent manuel en français auprès de votre distributeur local. AVERTISSEMENT –... -
Page 7: System Design
System Design Feature List Streamlined setup process Versatile starting and stopping options Configuration profiles for common applications Scheduled start/stop • • Built-in metering and inputs/outputs Adaptive Control • • Constant Current • Easy to understand interface Current Ramp • Multi-language menus and displays Pump Clean •... -
Page 8: Current Ratings
Current Ratings For operating conditions not covered by these ratings charts, download Santerno's free WinStart selection application, or contact your local supplier. 3.4.1 IEC ratings AC53b format 80 A AC-53b - 15 : Off time (seconds) Start time (seconds) Start current (multiple of motor full load current) -
Page 9: Dimensions And Weights
Dimensions and Weights B4 B5 10 11 12 13 14 15 21 22 33 34 41 42 44 53 54 B4 B5 10 11 12 13 14 15 21 22 33 34 41 42 44 53 54 B4 B5 10 11 12 13 14 15 21 22 33 34 41 42 44 53 54 A3 A1... -
Page 10: Accessories
3.7.4 RemoteDrive Management Software RemoteDrive PC software allows real-time integrated management of ASA 4.0 Advanced soft starters as well as all other Santerno products. RemoteDrive can monitor, control and program the starter across the network. RemoteDrive must connect to the ASA 4.0 Advanced via a Modbus RTU card. -
Page 11: Power Factor Correction
3.10 Power Factor Correction If power factor correction is used, a dedicated contactor should be used to switch in the capacitors. To use the ASA 4.0 Advanced to control power factor correction, connect the PFC contactor to a programmable relay set to Run. When the motor reaches full speed, the relay will close and power factor correction will be switched in. -
Page 12: Iec Coordination With Short Circuit Protection Devices
3.12 IEC Coordination with Short Circuit Protection Devices These fuses were selected based on start current of 300% FLC for 10 seconds. Nominal Rating (A) SCR I t (A Type 1 coordination Type 2 coordination 480 VAC, 65 kA 690 VAC, 65 kA Bussmann NH fuse links Bussmann DIN 43 653 ASA4.0-A 0024B... - Page 13 3.13.2 High Fault Short Circuit Current Ratings Maximum fuse rating (A) – High fault short circuit current Suitable for use on a circuit capable of delivering not more than 65,000 rms symmetrical amperes, 480 VAC maximum, when protected by fuses of the stated class and rating (refer ##2 and ##3 in table). Nominal Rating Short Circuit Rating @ 480 Listed fuse rating (A)
-
Page 14: Fuse Selection For Type 2 Coordination
3.14 Fuse Selection for Type 2 Coordination Type 2 coordination is achieved by using semiconductor fuses. These fuses must be able to carry motor start current and have a total clearing I t less than the I t of the soft starter SCRs. When selecting semiconductor fuses for ASA 4.0 Advanced, use the I t values in the table. -
Page 15: Disposal Instructions
Environmental Operating temperature ....................... -10 ˚C~60 ˚C, above 40 ˚C with derating Storage temperature ................................. -25 °C~+ 60 °C Operating Altitude ........................0~1000 m, above 1000 m with derating Humidity ................................5%~95% Relative Humidity Pollution degree ................................Pollution Degree 3 Vibration .................................... -
Page 16: Installation
Installation WARNING Do not apply mains voltage to the starter until all wiring is complete. WARNING Always apply control voltage before (or with) mains voltage. Command Source The ASA 4.0 Advanced can be started and stopped via the digital inputs, remote keypad, communication network, smart card or scheduled auto-start/stop. -
Page 17: Inputs
Inputs CAUTION The control inputs are powered by the soft starter. Do not apply external voltage to the control input terminals. NOTE Cables to the control inputs must be segregated from mains voltage and motor cabling. 4.3.1 Input Terminals B4 B5 10 11 12 13 14 15 21 22 B4 B5 10 11 12 13 14 15 21 22 33 34 41 42 44 53 54... -
Page 18: Outputs
4.3.3 Start/Stop The ASA 4.0 Advanced requires two-wire control. Reset Start/Stop WARNING If the start input is closed when control voltage is applied, the starter will attempt to start. Check that the start/stop input is open before applying control voltage. NOTE The ASA 4.0 Advanced will only accept commands from the control inputs if parameter 1A Command Source is set to Digital Input. -
Page 19: Control Voltage
4.4.2 Analog Output The ASA 4.0 Advanced has an analog output, which can be connected to associated equipment to monitor motor performance. The operation of the analog output is controlled by parameters 9A~9D. 4.4.3 Main Contactor Output The main contactor output (33, 34) closes as soon as the soft starter receives a start command and remains closed while the soft starter is controlling the motor (until the motor starts a coast to stop, or until the end of a soft stop). -
Page 20: Power Terminations
4.5.2 UL Compliant Installation For models ASA4.0-A 0184B to ASA4.0-A 0580B to be UL compliant, supplementary or branch overcurrent protection must be used on the control circuit supply (A1, A2, A3), in accordance with the electrical code applicable at the installation location. Power Terminations NOTE Some units use aluminium busbars. - Page 21 4.6.2 Motor Connection The ASA 4.0 Advanced can be connected to the motor in-line or inside delta (also called three-wire and six-wire connection). When connecting in inside delta, enter the motor full load current (FLC) for parameter 1B. The ASA 4.0 Advanced will automatically detect whether the motor is connected in-line or inside delta and will calculate the correct inside delta current level.
-
Page 22: Typical Installation
Typical Installation The ASA 4.0 Advanced is installed with a main contactor (AC3 rated). Control voltage must be supplied from the input side of the contactor. The main contactor is controlled by the main contactor output (33, 34). 1/L1 2/T1 3/L2 4/T2 5/L3... -
Page 23: Quick Setup
Quick Setup The Quick Setup Menu makes it easy to configure the ASA 4.0 Advanced for common applications. The ASA 4.0 Advanced guides you through the most common installation parameters, and suggests a typical setting for the application. You can adjust each parameter to suit your exact requirements. -
Page 24: Setup Tools
Setup Tools Setup Tools includes options to load or save parameters to a backup file, set the starter's network address, check the status of the inputs and outputs, reset the thermal models or test operation using the Run Simulation. To access the Setup Tools, press MENU to open the Menu then select Setup Tools. Set Date and Time To set the date and time: Press MENU to open the menu then select Setup Tools. -
Page 25: Load/Save Settings
Apply a stop command from the selected command source. The ASA 4.0 Run Simulation Advanced simulates stopping. The Run LED flashes. Stopping X:XXs MENU to Continue Press . The Ready LED flashes and the main contactor relay opens. Run Simulation Stopped MENU to Continue Press... -
Page 26: Auto-Start/Stop
5.6.2 File Locations and Formats Save Parameters and Logs: The ASA 4.0 Advanced will create a directory at the top level of the USB drive, named with the soft starter's serial number. The event log and parameter settings are saved as individual CSV files, and the soft starter's software and system information are saved to a text file. -
Page 27: Digital I/O State
NOTE The network address can also be set using parameters 12H~12S. NOTE To configure the ASA 4.0 Advanced for use with other communication protocols, use parameters 12A~12G. Digital I/O State The top line of the screen shows the start/stop, reset and programmable inputs. Digital I/O State The bottom line of the screen shows the fixed Main Contactor output, then programmable Inputs:... -
Page 28: Reset Thermal Model
5.14 Reset Thermal Model The soft starter's thermal modelling software constantly monitors the motor's performance. This allows the starter to calculate the motor's temperature and ability to start successfully at any time. The thermal model can be reset if required. CAUTION Resetting the motor thermal model will compromise thermal model protection and may compromise motor life. -
Page 29: Logs
Logs The Logs Menu provides information on events, trips and starter performance. To access the Logs Menu on the local keypad, press MENU to open the Menu then select Logs. On the remote keypad, press LOGS. Event Log The Event Log stores details of the starter's most recent trips, warnings, and operations (including starts, stops and configuration changes). -
Page 30: Keypad And Feedback
Keypad and Feedback The Keypad Local keypad Remote keypad (if installed) Ready Trip Local Reset Menu Exit Enter Four-line display for status and programming details. Status LEDs Menu navigation buttons: On the local keypad, this button also resets a trip. Exit the menu or parameter, or cancel a parameter change. -
Page 31: Starter Status Leds
Starter status LEDs Ready Trip Local LED name Flashing Ready The motor is stopped and the starter is ready to start. The motor is stopped and the starter is not ready to start: waiting for the Restart Delay (parameter 5P) •... - Page 32 7.5.7 Performance Graph The performance graph provides a real-time display of operating performance. Use parameters 10B~10E to format the graph. The display on the main keypad shows information for motor current. 000.0 A 0-400% If a remote keypad is connected, press GRAPHS to change the graph data. The graph can show: motor current •...
-
Page 33: Operation
Operation Start, Stop and Reset Commands The ASA 4.0 Advanced can be started and stopped via the digital inputs, remote keypad, communication network, smart card or scheduled auto-start/stop. The command source can be set via the Setup Tools, or using parameter 1A Command Source. The ASA 4.0 Advanced will only accept Start and Reset commands from the designated command source. -
Page 34: Emergency Mode
Emergency mode can be used in conjunction with any command source. NOTE Although emergency mode operation satisfies the functionality requirements of Fire Mode, Santerno does not recommend its use in situations that require testing and/or compliance with specific standards as it is not certified. -
Page 35: Soft Start Methods
Application Start Mode Stop Mode Adaptive Control Adaptive Control Pump - centrifugal (Early accel.) (Late decel.) Pump - Hydraulic Constant Current Coast To Stop Adaptive Control Adaptive Control Pump - positive displacement (Const. accel.) (Const. decel.) Adaptive Control Adaptive Control Pump - submersible (Early accel.) (Late decel.) - Page 36 8.8.1 Adaptive Control for Starting In an adaptive control soft start, the ASA 4.0 Advanced adjusts the current in order to start the motor within a specified time and using a selected acceleration profile. NOTE The ASA 4.0 Advanced will apply the current limit on all soft starts, including adaptive control. If the current limit is too low or the start ramp time (parameter 2B) is too short, the motor may not start successfully.
-
Page 37: Stop Methods
Stop Methods 8.9.1 Coast to Stop Coast to stop lets the motor slow at its natural rate, with no control from the soft starter. The time required to stop will depend on the type of load. 8.9.2 Timed Voltage Ramp Soft Stop Timed voltage ramp stopping reduces the voltage to the motor gradually over a defined time. - Page 38 8.9.4 DC Brake Brake reduces the time required to stop the motor. During braking an increased noise level from the motor may be audible. This is a normal part of motor braking. CAUTION When using DC brake, the mains supply must be connected to the soft starter (input terminals L1, L2, L3) in positive phase sequence.
-
Page 39: Pump Clean
Three-phase supply Line contactor (Run) Motor terminals Line contactor (Brake) Relay output A Zero speed sensor K1/K2 coil supply Programmable input A 8.10 Pump Clean The starter can perform a pump clean function before soft starting the motor. This can help dislodge debris from the impeller. Pump clean starts the motor in reverse then forward direction, then stops the motor. -
Page 40: Jog Operation
This example shows a simple installation, but many different configurations are possible depending on your application requirements. Contact your local supplier for an application note showing more installation options. NOTE The first start after the direction is changed will be constant current. NOTE If phase sequence protection is required, install the reversing contactor on the output (motor) side of the soft starter. -
Page 41: Inside Delta Operation
100% 1. Motor FLT 2. Jog forward maximum torque 3. Jog reverse maximum torque 05723.D 8.13 Inside Delta Operation When connecting in inside delta, enter the motor full load current (FLC) for parameter 1B. The ASA 4.0 Advanced will automatically detect whether the motor is connected in-line or inside delta and will calculate the correct inside delta current level. -
Page 42: Programmable Parameters
Programmable Parameters Main Menu The main menu lets you view and change programmable parameters that control how the ASA 4.0 Advanced operates. To open the main menu, press the MENU/ENTER button then scroll to Main Menu and press MENU/ENTER again. NOTE Parameters for smart card functions are only visible in the parameter list if the smart card is installed. - Page 43 Parameter Group Default Setting 350% Current Limit-2 Constant Acceleration Adaptive Start Profile-2 000 ms Kickstart Time-2 Kickstart Level-2 500% Jog Torque-2 TVR Soft Stop Stop Mode-2 00:00 (mm:ss) Stop Time-2 Constant Deceleration Adaptive Stop Profile-2 Adaptive Control Gain-2 Multi Pump-2 Single Pump Start Delay-2 00:00 (mm:ss)
- Page 44 Parameter Group Default Setting Protection Actions Auto-Reset Count 00:05 (mm:ss) Auto-Reset Delay Current Imbalance Soft Trip and Log Undercurrent Soft Trip and Log Overcurrent Soft Trip and Log Soft Trip and Log Undervoltage Soft Trip and Log Overvoltage Log Only Underpower Overpower Log Only...
- Page 45 Parameter Group Default Setting Motor Power User Parameter 5 Motor Temperature (%) User Parameter 6 Pump Clean Reverse Torque Reverse Time 00:10 (mm:ss) Forward Current Limit 100% Forward Time 00:10 (mm:ss) Coast To Stop Pump Stop Mode 00:10 (mm:ss) Pump Stop Time Pump Clean Cycles Communications Card Modbus Address...
-
Page 46: Motor Details
Parameter Group Default Setting Pressure Protection High Pressure Trip Level 00:00:50 (mm:ss:ms) High Pressure Start Delay High Pressure Response Delay 00:00:50 (mm:ss:ms) Low Pressure Trip Level Low Pressure Start Delay 00:00:50 (mm:ss:ms) 00:00:50 (mm:ss:ms) Low Pressure Response Delay Pressure Control Pressure Control Mode Start Pressure Level Start Response Delay... -
Page 47: Motor Start/Stop
1C – Motor kW Range: Default: 0 0 - 9999 kW Description: Sets the running power of the connected motor, in kilowatts. This setting is the basis for power reporting and protection. NOTE The motor nameplate may state different power ratings for different supply voltages or power connections. Ensure that the motor kW setting is accurate for the installation. - Page 48 2E – Adaptive Start Profile Options: Early Acceleration Constant Acceleration (default) Late Acceleration Description: Selects which profile the ASA 4.0 Advanced will use for an Adaptive Control soft start. NOTE The ASA 4.0 Advanced will apply the current limit on all soft starts, including adaptive control. If the current limit is too low or the start ramp time (parameter 2B) is too short, the motor may not start successfully.
-
Page 49: Motor Start/Stop-2
2N – Start Delay Range: 0:00 - 60:00 (minutes:seconds) Default: 0 second Description: Sets a delay after the starter receives a start command, before it starts the motor. 2O – DC Brake Torque Range: 20% - 100% Default: 20% Description: Sets the amount of brake torque the ASA 4.0 Advanced will use to slow the motor. - Page 50 3F – Current Limit-2 Range: Default: 350% 100% - 600% FLC Description: Sets the current limit for constant current and current ramp soft starting, as a percentage of motor full load current. NOTE The ASA 4.0 Advanced will apply the current limit on all soft starts, including adaptive control. If the current limit is too low or the start ramp time (parameter 2B) is too short, the motor may not start successfully.
-
Page 51: Auto-Start/Stop
3P – Start Delay-2 Range: 0:00 - 60:00 (minutes:seconds) Default: 0 second Description: Sets a delay after the starter receives a start command, before it starts the motor. 3Q – DC Brake Torque-2 Range: 20% - 100% Default: 20% Description: Sets the amount of brake torque the ASA 4.0 Advanced will use to slow the motor. - Page 52 4E – Sunday Start Time Range: Default: 00:00 00:00 - 23:59 Description: Sets the auto-start time for Sunday (24 hour format). 4F – Sunday Stop Time Range: 00:00 - 23:59 Default: 00:00 Description: Sets the auto-stop time for Sunday (24 hour format). 4G –...
-
Page 53: Protection Levels
4Q – Thursday Start Time Range: Default: 00:00 00:00 - 23:59 Description: Sets the auto-start time for Thursday (24 hour format). 4R – Thursday Stop Time Range: 00:00 - 23:59 Default: 00:00 Description: Sets the auto-stop time for Thursday (24 hour format). 4S –... - Page 54 5E – Overcurrent Range: 80% - 600% Default: 400% Description: Sets the trip point for overcurrent protection, as a percentage of motor full load current. 5F – Overcurrent Delay Range: 0:00 - 1:00 (minutes:seconds) Default: 0 second Description: Slows the ASA 4.0 Advanced's response to overcurrent, avoiding trips due to momentary overcurrent events. 5G –...
-
Page 55: Protection Action
5Q – Starts per Hour Range: 0 - 10 Default: 0 Description: Sets the maximum number of starts the ASA 4.0 Advanced will attempt in a 60 minute period. A setting of 0 disables this protection. 5R – Phase Sequence Options: Any Sequence (default) Positive Only... - Page 56 6F – Undervoltage Options: Soft Trip and Log (default) Trip and Reset Soft Trip and Reset Warn and Log Trip Starter Log Only Description: Selects the soft starter's response to the protection event. 6G – Overvoltage Options: Soft Trip and Log (default) Trip and Reset Soft Trip and Reset Warn and Log...
-
Page 57: Inputs
6O – Frequency Options: Soft Trip and Log (default) Trip and Reset Soft Trip and Reset Warn and Log Trip Starter Log Only Description: Selects the soft starter's response to the protection event. 6P – Phase Sequence Options: Soft Trip and Log (default) Trip and Reset Soft Trip and Reset Warn and Log... - Page 58 7B – Input A Trip Options: Always Active A trip can occur at any time when the soft starter is receiving power. Operating Only (default) A trip can occur while the soft starter is running, stopping or starting. Run Only A trip can only occur while the soft starter is running.
-
Page 59: Relay Outputs
7K – Input B Name Options: Input B Trip (default) Controller Low Pressure High Pressure Vibration Alarm Pump Fault Field Trip Low Level Interlock Trip High Level Motor Temperature No Flow Motor Protection Starter Disable Feeder Protection Custom Message Description: Selects a message for the keypad to display when Input B is active. -
Page 60: Analog Output
8G – Low Current Flag The ASA 4.0 Advanced has low and high current flags to give early warning of abnormal operation. The current flags can be configured to indicate an abnormal current level during operation, between the normal operating level and the undercurrent or instantaneous overcurrent trip levels. - Page 61 10B – Temperature Scale Options: Celsius (default) Fahrenheit Description: Selects whether the ASA 4.0 Advanced will display temperatures in degrees Celsius or Fahrenheit. 10C – Graph Timebase Options: 30 seconds (default) 1 minute 30 minutes 1 hour Description: Sets the graph time scale. The graph will progressively replace the old data with new data. 10D –...
-
Page 62: 11 Pump Clean
Description: Selects which information will be displayed on the main monitoring screen. 10I – User Parameter 2 Options: Refer to parameter 10H User Parameter 1 for details. Default: Motor Voltage Description: Selects which information will be displayed on the main monitoring screen. Refer to parameter 10H User Parameter 1 for details. -
Page 63: Communications Card
11G – Pump Clean Cycles Range: Default: 1 1 – 5 Description: Sets how many times the soft starter will repeat the pump clean cycle. 9.16 12 Communications Card 12A – Modbus Address Range: 1 - 254 Default: 1 Description: Sets the Modbus RTU network address for the soft starter. - Page 64 12J – Gateway Address 3 Range: Default: 0 0 - 255 Description: Sets the third component of the network gateway address. 12K – Gateway Address 4 Range: 0 - 255 Default: 100 Description: Sets the fourth component of the network gateway address. NOTE The network address can also be set via the Network Address options in the Setup Tools.
-
Page 65: Advanced
12T – DHCP Options: Disable (default) Enable Description: Selects whether the communications card will accept an IP address assigned by DHCP. NOTE DHCP addressing is available with Modbus TCP and Ethernet/IP. DHCP addressing is not supported with Profinet. 12U – Location ID Range: 0 - 65535 Default: 0... -
Page 66: Pump Input Configuration
20F – Motor Connection Options: Auto-detect (default) In-line Inside delta Description: Selects whether the soft starter will automatically detect the format of the connection to the motor. 9.18 30 Pump Input Configuration NOTE The parameters in this group are only active if a smart card is installed. 30A –... -
Page 67: Flow Protection
30J – Pulses per Minute at Max Flow Range: 0 – 20000 Default: 0 Description: Calibrates the soft starter to the maximum flow volume of the flow sensor. 30K – Units per Pulse Range: 0 – 1000 Default: 0 Description: Set to match how many units the flow sensor will measure for each pulse. -
Page 68: Pressure Protection
9.20 32 Pressure Protection NOTE The parameters in this group are only active if a smart card is installed. Pressure protection uses terminals B23, B24 or C33, C34, C43, C44 on the smart card. 32A – High Pressure Trip Level Range: 0 –... -
Page 69: Depth Protection
33D – Stop Pressure Level Range: 0 – 5000 Default: 10 Description: Sets the pressure level to trigger the soft starter to stop the motor. 33E – Stop Response Delay Range: 00:00:10 – 30:00:00 mm:ss:ms Default: 00:00:500 ms Description: Sets a delay between the pressure passing the pressure control stop level, and the soft starter stopping the motor. 9.22 34 Depth Protection NOTE... - Page 70 36B – Flow Sensor Options: Soft Trip and Log (default) Trip and Reset Soft Trip and Reset Warn and Log Trip Starter Log Only Description: Selects the soft starter's response if it detects a fault with the flow sensor. 36C – Depth Sensor Options: Soft Trip and Log (default) Trip and Reset...
-
Page 71: Application Examples
Application Examples 10.1 Smart Card - Pump Control and Protection The ASA 4.0 Advanced smart card is ideal for applications with extensive external inputs, such as pumping situations where external sensors provide additional protection to the pump and motor. In this example, the ASA 4.0 Advanced controls a bore pump via scheduled start/stop operation. The control panel is fitted with a three-way selector switch allowing Auto Run, Stop or Manual Run. -
Page 72: Smart Card - Level Controlled Pump Activation
10.2 Smart Card - Level Controlled Pump Activation The ASA 4.0 Advanced smart card can be used to control start/stop activation of the starter, based on information from external inputs. In this example, the ASA 4.0 Advanced controls a pump which fills a tank, with maximum and minimum water levels. A pressure sensor is used to monitor the level of water in the tank and trigger the pump to fill the tank when water drops below the minimum level, and shut off the pump when the maximum water level is reached. -
Page 73: Troubleshooting
Troubleshooting 11.1 Protection Responses When a protection condition is detected, the ASA 4.0 Advanced will write this to the event log and may also trip or issue a warning. The soft starter's response depends on the Protection Action setting (parameter group 6). Some protection responses cannot be adjusted by the user. - Page 74 Display Possible cause/Suggested solution This trip is not adjustable. Frequency The mains frequency has gone beyond the specified range. Check for other equipment in the area that could be affecting the mains supply, particularly variable speed drives and switch mode power supplies (SMPS). If the ASA 4.0 Advanced is connected to a generator set supply, the generator may be too small or could have a speed regulation problem.
- Page 75 Display Possible cause/Suggested solution This trip is not adjustable. Motor connection The motor is not connected correctly to the soft starter. Motor Connection T1 Check individual motor connections to the soft starter for power circuit continuity. • Motor Connection T2 Check connections at the motor terminal box.
-
Page 76: General Faults
Display Possible cause/Suggested solution The ASA 4.0 Advanced is operating beyond its safe capacity. Allow the starter to cool. Rating Capacity Related parameters: None The smart card has detected a fault with the RTD sensor, or the RTD has activated temperature RTD Circuit protection. - Page 77 Symptom Probable Cause The soft starter does not respond to a start The soft starter may be waiting for the restart delay to elapse. The length of the restart • command from either the keypad or the delay is controlled by parameter 5P Restart Delay. digital inputs.
- Page 78 78/78 ASA 4.0 Advanced...
