Replacing The Motor - IntelligentAg Engage Zone Control Information Notice

IMPORTANT: Before removing the motor mounts, make note of the serial number of each motor
controller and if it is installed on the left side or right side of the enclosure. The motor controllers
must be reinstalled in their original position.

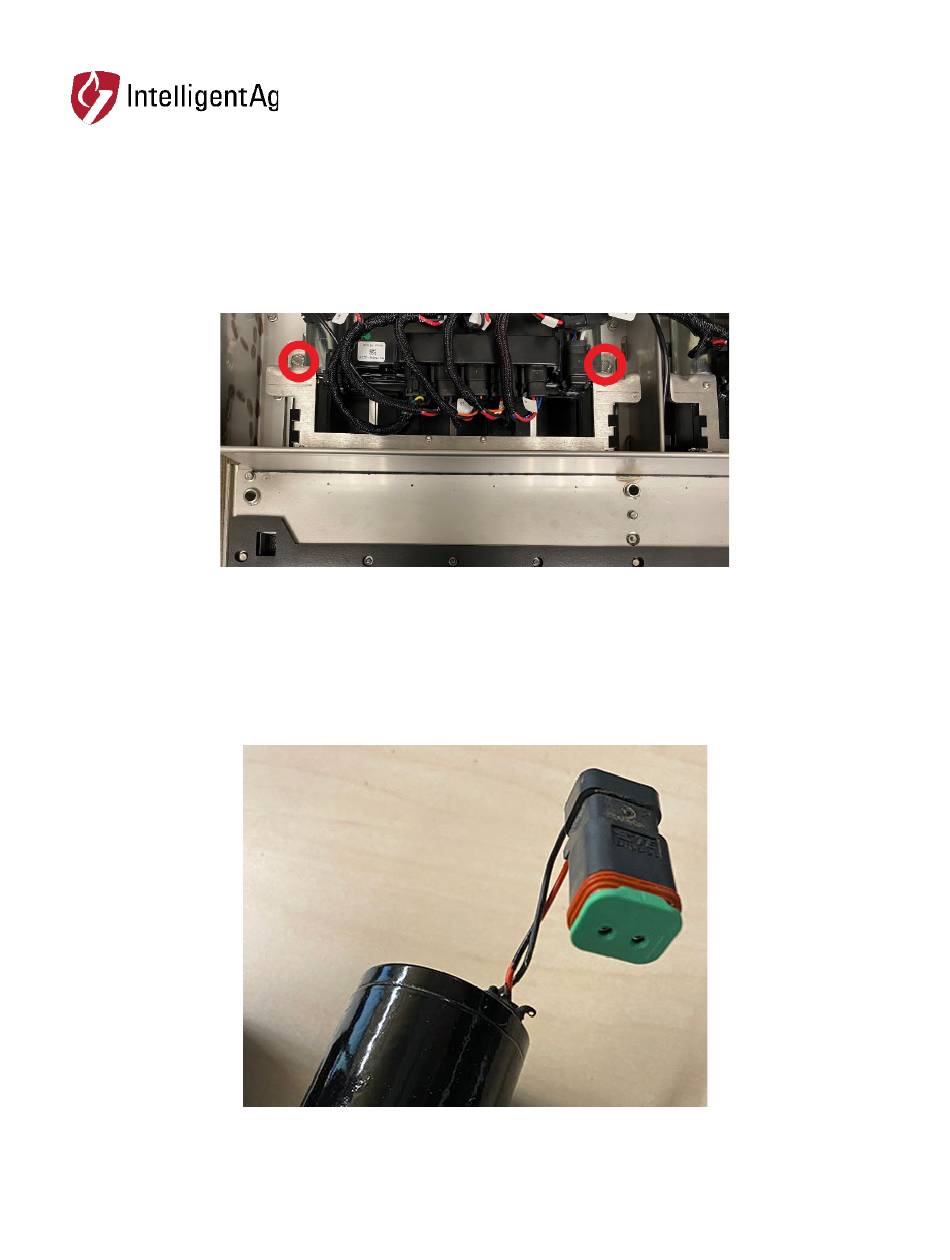

6. Use a 15 mm socket, ratchet, and extension to remove the 2 bolts holding each motor mount to
the enclosure. Then, remove the motor mounts.

Replacing the Motor

1. Identify the motor that needs to be replaced by referring to the error message on the VT or
visually identify the motor that's not moving. Then, disconnect the power connector from the
motor controller.
Page 3 of 8
