Atlas Strategy Series II FAP40T Specifications

Strategy Series
Specifications
Power Rating 16 Watts (8Ω)
Transformer Taps 1, 2, 4, 8, & 16 Watts
Frequency Response 100Hz – 12kHz (±3dB)
80Hz – 15kHz (±5dB)
Sensitivity (1W / 1M) 87dB
Woofer 4" Polypropylene with SBR Surround
Woofer Magnet Weight 13 oz (369g)
Bezel Diameter 7
Overall Height 7
Cut-Out Diameter 6
Features
•
Tuned & Ported Design for Extended Bass Response
•
16 Watts Internal Transformer
•
8Ω Transformer Bypass Setting
•
Low Profile Plastic Enclosure
•
Input Via 2 Pole Terminal Strip
•
Press-Fit Grille Blends Perfectly into Contemporary Architecture
•
Lightweight Construction Makes Use of Additional Support in Drywall
Ceilings Unnecessary
•
Tile Bridge Included
•
Perfect Companion with the FAPSUB Subwoofer System When Sub
Bass Is Required
•
UL 1480 Listed
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
FAP40T

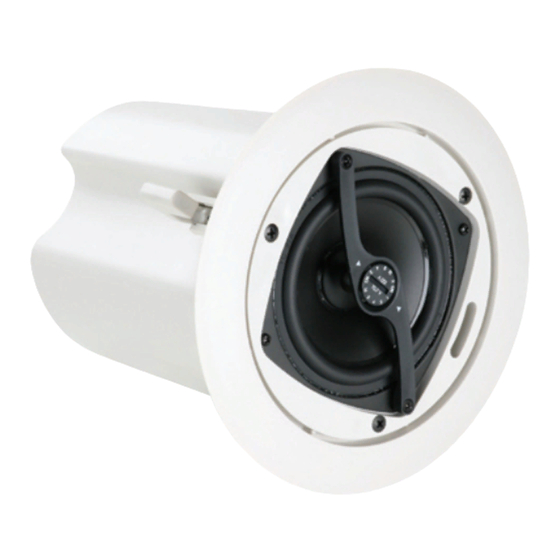

II In-Ceiling 4" Speaker System
®
FAP40T
⁄ " (187mm)
3
8
⁄ " (181mm)
1
8
⁄ " (160mm)
5
16
Applications
Designed to provide high performance in a very compact footprint, the
FAP40T appeals to both system designers and architects. FAP40T is ideal
for high-intelligibility voice, music, and signal reproduction in commercial,
industrial, and institutional applications.

General Description

A unique, patented tap selector switch design allows for easy system
tuning. A full selection of taps up to 16 Watts as well as an 8Ω trans-
former bypass setting is included for maximum system versatility. This
switch "knob" also functions as a diffuser cone, providing smooth, even
dispersion of the high frequency content from the center of the 4" poly-
propylene driver. In fact, the high frequency response of the FAP40T is
so natural that many would assume that the driver in the FAP40T was a
coaxial design instead of a single cone driver.
Low frequency response is enhanced by the tuned and ported enclosure
design. The enclosure (UL1480 Listed) is constructed of high impact
injection molded plastic and includes a press fit grille design that blends
well with contemporary architecture.
A two pole terminal strip housed below a removable metal cover on the
back of the FAP40T enclosure allows for easy system wiring as well as
"daisy chain" wiring to other FAP40Ts or even FAPSUB subwoofers (a
great combination).
AtlasSound.com
FAP40T
1/4
