Atlas Strategy II Series FAP82T Specification Sheet

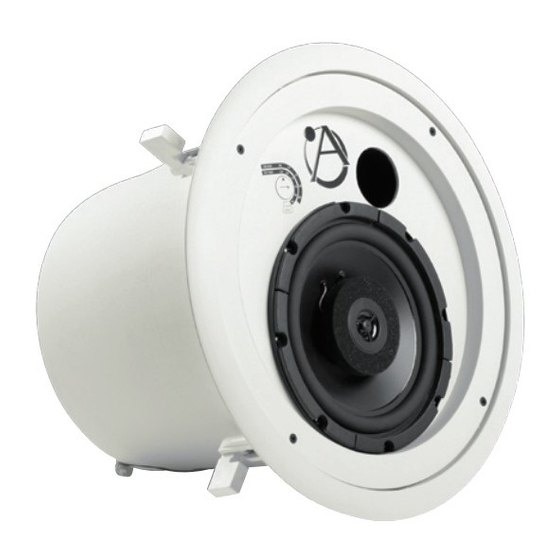

8" in-ceiling speaker system
Hide thumbs Also See for Strategy II Series FAP82T:
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Strategy Series

Specifications

Woofer Size
Woofer Impedance
Transformer Taps at 70.7V
Power Handling
Sensitivity (1W / 1M)
Frequency Response
Magnet Weight
Cut-Out Diameter
Height
Diameter
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
FAP82T
II 8" In-Ceiling Speaker System
®
FAP82T
8" (203mm)
8Ω Direct Coupled (Nominal)
1.9, 3.8, 7.5, 15, 30, & 60 Watts
70 Watts RMS (at 8Ω)
90dB Average
65Hz – 20kHz (±5dB)
21oz (580g)
14" (356mm)
12
⁄
" (324mm)
3
4
15
⁄
" (400mm)
3
4
Features
• High efficiency 8" driver
• E xtended Low Frequency Response from the Optimally Tuned and
Ported Deep Drawn Galvanized Steel Enclosure (937 in
• 6 0 Watts Enhanced Quality 70.7V / 100V Internal Transformer
Minimizes Insertion Loss and Maintains Low Frequency
• F ront Mounted Tap Selector Switch for Easy System Tuning
Adjustments (1.9 – 60 watts @ 70.7V Plus 8Ω Bypass)
• U nique "Trap Door" Input Section Allows for Through Conduit Runs
with Rigid or Flex Conduit
• 4 Pole Detachable Phoenix / Euro Style Connector Allows Easy
Pre-wiring
• "Press-Fit" Grille to Better Blend into Contemporary Architecture
• S hips Complete with Speaker / Transformer Factory Assembled into
Back Can, Grille, and Unique C-Ring / V-Rail Mounting Hardware
• M ay be Pendulum Mounted via Top Mounted Eyebolt (Included)
• E nclosure is Finished in White for Optimum Aesthetics when Hung in
Open Ceiling Applications
• UL 1480 Listed
Applications
The Atlas Sound FAP82T is a premium performance 70.7V / 100V tuned
& ported 8" coaxial ceiling speaker system perfectly suited for many
business music and public address applications – especially applications
where high ceilings require loudspeakers with increased efficiency and
tighter pattern control. The 8" coaxial speaker system features extended
low frequency response rivaling that of many subwoofers.
The FAP82T will satisfy the needs of owners, architects, contractors,
and consultants by delivering true, high fidelity sound reproduction in an
attractive and easy-to-install system. The FAP82T is ideal for high intelligi-
bility voice, music, and signal reproduction in commercial, industrial, and
institutional applications.
AtlasSound.com
)
3

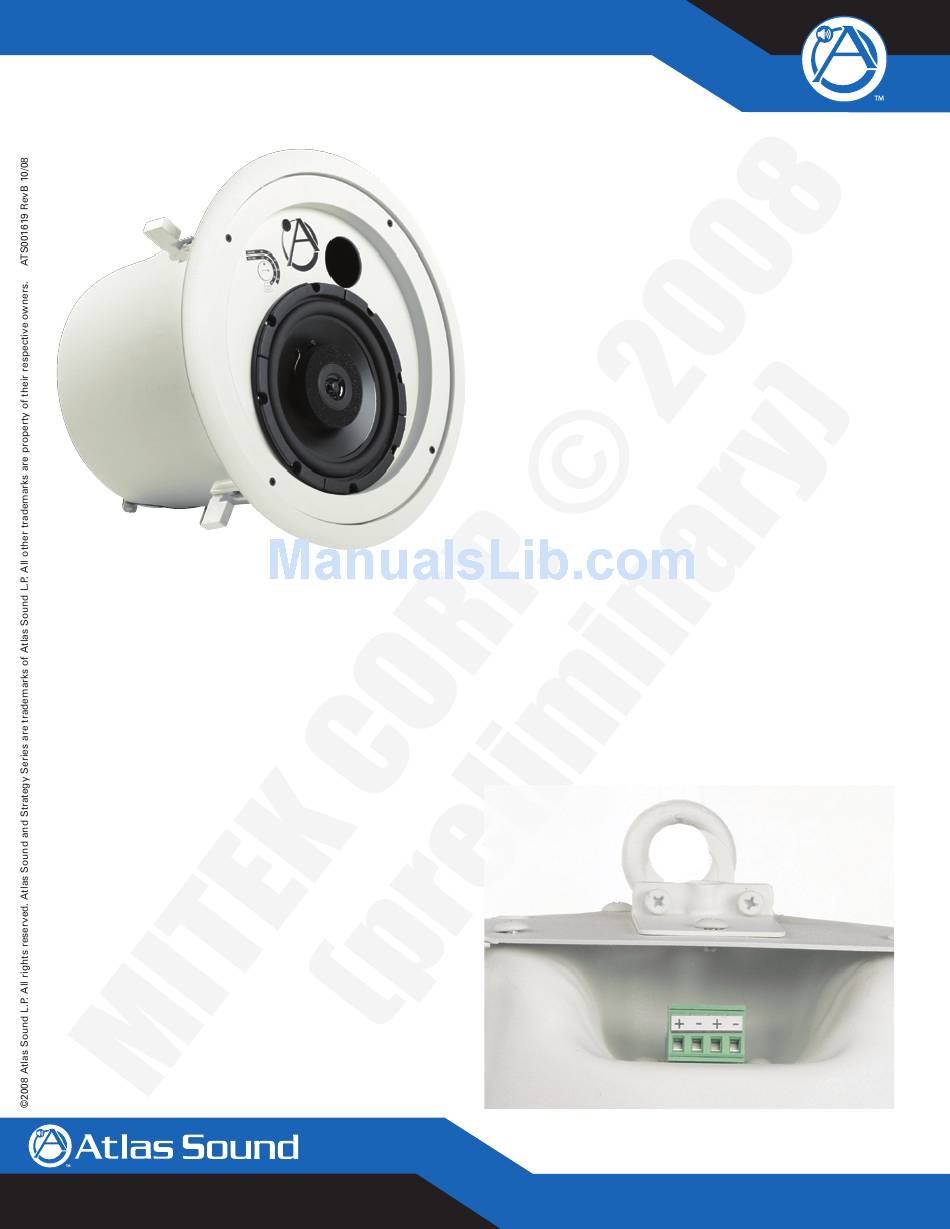

FAP82T
(Pendulum Eyebolt &
Phoenix / Euro
Style Connector)
1/5

Advertisement

loading
Need help?

Need help?

Do you have a question about the Strategy II Series FAP82T and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas Strategy II Series FAP82T

Summary of Contents for Atlas Strategy II Series FAP82T

  • Page 1: Specifications

    • M ay be Pendulum Mounted via Top Mounted Eyebolt (Included) • E nclosure is Finished in White for Optimum Aesthetics when Hung in Open Ceiling Applications • UL 1480 Listed Applications FAP82T The Atlas Sound FAP82T is a premium performance 70.7V / 100V tuned & ported 8" coaxial ceiling speaker system perfectly suited for many business music and public address applications – especially applications where high ceilings require loudspeakers with increased efficiency and tighter pattern control. The 8" coaxial speaker system features extended low frequency response rivaling that of many subwoofers.

  • Page 2: General Description

    FAP82T. Mounting holes are provided to accommodate 16" or 24" OC stud / joist mounting. With the FAP82T, Atlas Sound has addressed pendulum mounting for open ceiling applications. An eyebolt assembly is included with the package allowing suspension of the FAP82T with load rated cable or “all thread”. The enclosure is finished white to match the bezel ring for...
  • Page 3 Architect & Engineers Specifications System shall include a high performance 8" coaxial loudspeaker, ported bass reflex enclosure and press-fit grille for conventional ceiling installa- tion. Frequency response for the system shall be 65Hz – 20kHz (±5dB). Sensitivity shall be 90dB average. Loudspeaker shall be comprised of an 8" coaxial cone type driver. Cone shall be constructed of polypropylene with a butyl rubber surround. The 19mm tweeter shall be constructed of PEI. Woofer magnet shall be a minimum of 21oz (595g) and the voice coil diameter shall be 1 (38mm). Transformer shall be a 70.7V / 100V type with primary taps at 1.9, 3.8, 7.5, 15, 30, and 60 watts (@ 70.7V) with a front mounted tap selector switch. This tap selector switch shall also include a transformer bypass setting for instances where the 8Ω FAP82T driver is to be direct coupled with a low impedance amplifier. Enclosure shall be a deep drawn steel enclosure design. Internal volume shall be 937 in .
  • Page 4 FAP82T Impedance (Ohms) vs Frequency 1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A. TELEPHONE: (800) 876-3333 FAX (800) 765-3435 FAP82T Frequency Response Frequency (Hz) Frequency (Hz) AtlasSound.com...
  • Page 5 FAP82T Harmonic Distortion Fundamental Harmonic Harmonic Frequency (Hz) FAP82T Polars (Normalized to Zero on Axis) (-6 dB) 1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A. AtlasSound.com TELEPHONE: (800) 876-3333 FAX (800) 765-3435...
