Strategy Series

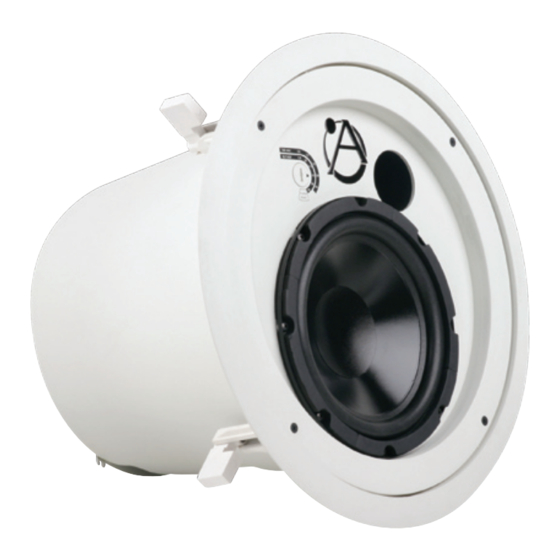

II In-Ceiling 70.7V / 100V / 8 Ω Subwoofer System
®
Specifications
Woofer Size:
Woofer Impedance:
Transformer Taps at 70.7V:
Power Handling:
Sensitivity (1 W / 1 M):
Frequency Response:
Dispersion:
Low Pass Filter:
Magnet Weight:
VC Diameter:
VC Material:
VC Former Material:
Cut-out Diameter:
Height:
Diameter:
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
FAPSUB
FAPSUB
8" (203mm)
8Ω Direct Coupled (Nominal)
1.9, 3.8, 7.5, 15, 30, & 60 Watts
100 Watts RMS
89dB Average
45Hz – 120Hz (±10dB),
55Hz – 100Hz (±6dB)
Omni
Three Pole Design 18dB / octave @ 120Hz
Nominal, 20oz (580g)
35.5mm
Copper
Kapton
®
14" (355mm)
12
⁄
" (324mm)
3
4
15
⁄
" (400mm)
3
4
Features
• T uned and Ported, Long Excursion 8" Subwoofer System Produces
Amazing Extended Low Frequency Response in Any Ceiling Speaker
System
• H igh Efficiency, Passive Crossover Network Eliminates the Need for
Dedicated Amplifier and/or Active Crossover
• L ow Crossover Point Greatly Reduces Localization (Ability of Listener
to Identify the Subwoofer Location)
• F ront Mounted Tap Selector Switch for Easy System Tuning
Adjustment Includes Transformer Bypass Setting for 8Ω / Direct
Coupled Operation
• E asy Installation in Drop Tile or Sheetrock Ceilings Via C-Ring / V-Rail
Tile Bridge and "Dog Leg" Mounting System (Included)
• U niquely Designed, Easy Access Input Panel Design Allows for Thru
Conduit Runs Using Flexible or Rigid Conduit
• D etachable, Phoenix Style, Locking, Four-pole Euro Connectors for
Easy Daisy Chain Wiring
• A ttractive Stud Mount Grille Matches Aesthetics of Other Atlas
Sound FAP Series
• U L Listed – 1480
Applications
In recent years, there has been a shift in market demand for commer-
cial sound systems to deliver higher fidelity sound. Retail, restaurant,
and hospitality owners and managers are finding that their customers
are expecting the quality of their shopping or dining experience to be
enhanced by music reproduced at nearly the same sound quality they
expect in their home theaters and car stereos. Business owners now
realize that the excitement caused by a quality audio system can turn into
increased customer satisfaction. The FAPSUB, when used in conjunction
with other Atlas Sound full-range speakers, provides great sounding back-
ground / foreground music reproduction suitable to these applications.
AtlasSound.com
FAPSUB
(back)
1/4
Advertisement
Related Manuals for Atlas Strategy Series 100V
Summary of Contents for Atlas Strategy Series 100V
-
Page 1: Specifications
" (400mm) 1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A. TELEPHONE: (800) 876-3333 FAX (800) 765-3435 Features • T uned and Ported, Long Excursion 8" Subwoofer System Produces Amazing Extended Low Frequency Response in Any Ceiling Speaker System • H igh Efficiency, Passive Crossover Network Eliminates the Need for Dedicated Amplifier and/or Active Crossover • L ow Crossover Point Greatly Reduces Localization (Ability of Listener to Identify the Subwoofer Location) • F ront Mounted Tap Selector Switch for Easy System Tuning Adjustment Includes Transformer Bypass Setting for 8Ω... -
Page 2: General Description
A highly efficient, 3-pole filtering network eliminates unwanted high frequencies from the woofer, while the 937 in drawn steel enclosure provides frequency response down to 45Hz (±10dB). A specially designed rippled speaker dust cap helps eliminate nearly all frequency artifacts emanating from the center of the woofer cone. A special low saturation 70.7V / 100V transformer is included with pri- mary taps at 1.9, 3.8, 7.5, 15, 30, and 60 watts (@70.7V) to match and... - Page 3 13.5' spacing between speakers provides minimum overlap coverage at 4kHz. Subwoofers Two Atlas Sound FAPSUB subwoofers tapped at 30 watts each (60 watts total) will fill out the low frequencies at 8dB above the level of the full range speakers. If boundary loaded into one corner of the room the level will be increased another 6dB (14dB above the full range speakers). Total Wattage: 92 watts x 1.3 Multiplier (for headroom) = 119.6 watts Amplifier Power Suggested: 120 Watts Atlas Sound AA120 1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A. TELEPHONE: (800) 876-3333 FAX (800) 765-3435 Amplifier Low Frequency Capability Many 70.7V / 100V power amplifiers on the market today are from the era when business music systems extending down to only 100Hz were widely accepted. These less expensive amplifiers are not capable of driving today's high fidelity systems that require sound below 100Hz. When specifying the Atlas Sound FAPSUB, which operates well below...
- Page 4 FAPSUB Frequency Response Frequency (Hz) FAPSUB Impedance (Ohms) vs Frequency Frequency (Hz) 1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A. AtlasSound.com TELEPHONE: (800) 876-3333 FAX (800) 765-3435...
