Euroflex VAPOUR M4S HYBRID STEAM CLEANER Instruction Manual

All in one steam cleaner
Hide thumbs Also See for VAPOUR M4S HYBRID STEAM CLEANER:
Table of Contents

Advertisement

Quick Links

M4S
HYBRID STEAM CLEANER
All in One Steam Cleaner
INSTRUCTION MANUAL
Before using this product, please read the instructions and keep it for future references.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAPOUR M4S HYBRID STEAM CLEANER and is the answer not in the manual?

Questions and answers

Related Manuals for Euroflex VAPOUR M4S HYBRID STEAM CLEANER

Summary of Contents for Euroflex VAPOUR M4S HYBRID STEAM CLEANER

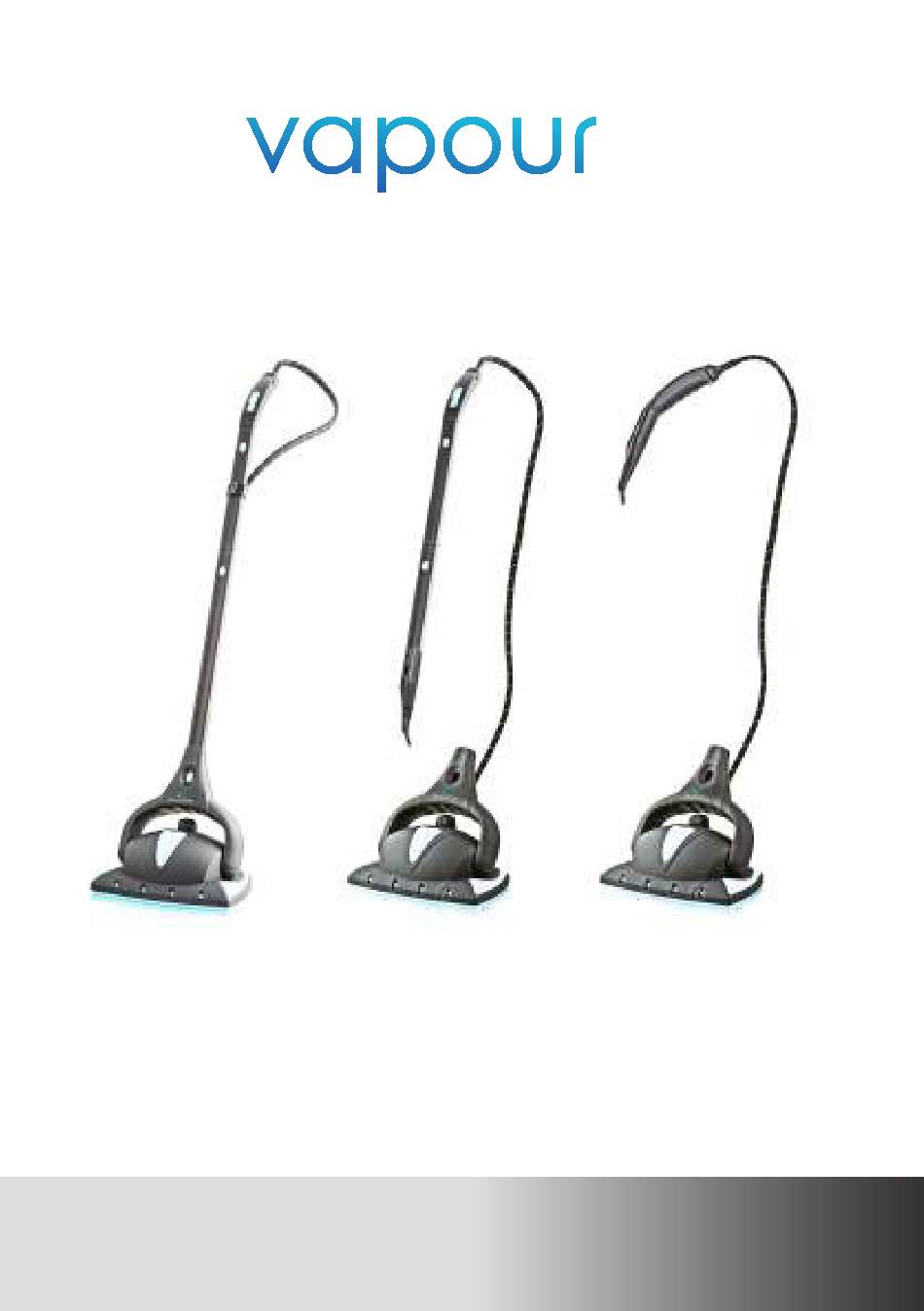

  • Page 1 HYBRID STEAM CLEANER All in One Steam Cleaner INSTRUCTION MANUAL Before using this product, please read the instructions and keep it for future references.
  • Page 2 I M P O R TA N T S A F When using an electrical appliance, basic safety precautions should always be observed, including the following: Read all instructions before using this appliance. WARNING! To reduce the risk of fire, electrical shock, or injury: 1.
  • Page 3 E T Y I N S T R U C T I O N Look closely at steam cleaner and follow all labels and marking instructions. 10. Do not put any objects into openings. Do not use with any opening blocked. 11.
  • Page 4 I M P O R TA N T S A F 19. The steam cleaner is not intended for space heating purposes. 20. To reduce the likelihood of circuit overload, do not operate another high wattage appliance on the same circuit. Plug in to a standard (220-240V, 50/60Hz) electrical outlet.

  • Page 5: Safety Instruction

    Instructions carefully. Remove and discard all packaging materials and keep them out of the reach of children. Euroflex relieves itself of any liability for damages that shall be the result of improper use of the appliance, not in conformity with what’s written in this instruction manual.

  • Page 6: Product Description

    1 - Steam Handle with Switch 2 - Locking Buttons 3 - Cord Winders 4 - Cleaning Hose Clamp 5 - Measuring Cup (pre-marked) 6 - Boiler Cap 7 - Steam Ready Indicator Light (green) 8 - Power Indicator Light (orange) 9 - Power Cord 10 - Steam Nozzles...
  • Page 7 ACCESSORIES 1 - Detail Nozzle 2 - Nylon Small Brushes 3 - Window Cleaner 4 - Small Brush Adapter 5 - Small Brush 6 - Fitted Microfiber Pad for Small Brush 7 - Scraper 8 - Grout Brush 9 - Accessory Bag Product Description...

  • Page 8: Before Use

    FLOOR STEAM CLEANING MODE Assembly of Parts & Preparation of Steam Cleaner Make sure all parts are in the box (see pg 6-7). IMPORTANT! FOLLOW THESE INSTRUCTIONS CAREFULLY. WARNING! Always ensure steam handle is not steaming when attaching an accessory to the steam cleaner. A.
  • Page 9 B. Attach Cleaning Pads to Steam Cleaner WARNING! To prevent floor damage, ALWAYS attach either the Microfiber Floor Pad or the Carpet Glide Accessory with Carpet Pad when using the steam cleaner. NEVER USE WITHOUT EITHER OF THESE ATTACHMENTS AFFIXED TO THE BASE. ATTACHING SCRUBBING FLOOR PAD Scrubbing Floor Pad –...
  • Page 10 C. Filling Water when Boiler is Cold WARNINGS: • Carefully read all instructions before removing Boiler Cap. • Always unplug appliance before filling the Boiler. IMPORTANT Use ordinary tap water. Distilled or demineralized water is recommended if tap water is too hard. DO NOT add detergents, perfumes, oils, or other chemical substances to the Boiler.
  • Page 11 Using the Steam Cleaner to Wash Floors A. Using the Parking Pad You can use the Parking Pad if the steam cleaner is warm or hot. CAUTIONS The Parking Pad is provided to prevent floor damage that can result from leaving a hot steam cleaner resting on the same spot for too long.

  • Page 12: Using The Steam Cleaner

    D. Releasing Steam (continued) • To emit steam from the 4 front nozzles, press the REAR REAR part of the button on the handle. • IMPORTANT: at the end of the cleaning task, press the button on the left side of the steam handle to lock the steam cleaner in safety LEFT...
  • Page 13 WARNING: Let steam cleaner cool 5 minutes before opening Boiler Cap. Use care when opening Boiler Cap as it may still be hot and steam may escape, causing burns. If Boiler is still hot, water may spurt out during refilling which can also cause burns. •...
  • Page 14 PORTABLE STEAM CLEANER MODE Multipurpose Portable Steam Cleaner The Hybrid Steam Cleaner is a 2 in 1 model that converts into a multipurpose portable steam cleaner with just one click. The portable steam cleaner features include: 1. Lightweight and portable unit. 2.
  • Page 15 C. Attach Extension Tube or Steam Handle to Brush Adapter Once the small Brush is attached to the Brush Adapter, press the locking button on the Extension Tube or Steam Handle while sliding the Tube or handle in the Brush Adapter. Ensure the locking button and the hole on the Brush Adapter line up.
  • Page 16 G. Attach Nylon Small Brush to Detail Nozzle The Nylon Brush is used to help scrub particularly tough dirt. CLICK To use: Push the Nylon Brush on the end of the Detail Nozzle. (Detail Nozzle should be connected to the Steam Handle or Extension Tubes.
  • Page 17 J. Attaching Microfiber Pad to Small Brush A fitted Microfiber Pad should be placed over the bristles of the Small Brush to clean smooth surfaces such as kitchen cupboards, splash backs, countertops, etc. Fit the Small Microfiber Pad over the Small Brush as shown below. Steam Release FRONT To release steam from the Steam...
  • Page 18 Turning Steam Cleaner Off • To turn Steam Cleaner off, unplug the electrical cord from the power outlet. • Any remaining water can be left in the unit. REMINDERS • We recommend distilled or demineralised water as the best way to care for and utilize your Steam Cleaner. •...

  • Page 19: Maintenance And Cleaning

    The cleaning of the Boiler and Steam Cleaner is the sole responsibility of the owner. Calcium, mineral deposits and other sediments left to build up in the Steam Cleaner causing it to fail and/or the steam pathways in the Steam Cleaner to block, is not covered by the product warranty.
  • Page 20 Steam Cleaner Tips & Reminders Steam cleaning allows the user to clean chemical-free by using the power of steam, in place of harsh chemical-based cleaners. The heat from the steam softens and loosens dirt on surfaces, while the steam pressure lifts the dirt away. All that is left to do is to wipe the surface to remove the dirt and moisture using a cloth (preferably with a microfiber cloth).
  • Page 21 Water Use ordinary tap water for all cleaning. In hard water areas, we recommend distilled or demineralised water to reduce the formation of calcium and other mineral deposits in the Steam Cleaner. Use distilled or demineralised water in the boiler to eliminate the possibility of floors streaking.
  • Page 22 Never use fabric softener or bleach. We recommend letting Pads air dry to maintain maximum long term effectiveness. Replacement pads are available at most retail outlets or on our website at www.euroflex.com.au. Microfiber washing instructions – ULTRA MICROFIBER MICROFIBER FLOOR PAD CARPET PAD...

  • Page 23: Troubleshooting

    Troubleshooting ISSUES POSSIBLE CAUSES SOLUTIONS Steam is not coming out of Improper Handle Assembly Call Customer Service to receive instructions to correct the 4 front Nozzles the problem The Microfiber Floor Pad Not enough pressure was Position Steam Cleaner about 2” above Pad and FIRMLY is not adhering to Steam applied when attaching Pad press it down onto the Pad...
  • Page 24 Service Team can assist you with getting the best cleaning results from your Steam Cleaner, they are full of helpful steam cleaning tips, too. Customer Support Line AUSTRALIA 1800 663 866 NEW ZEALAND 0800 666 783 Euroflex Australia Pty Ltd 79 Furniss Road DARCH WA 6065 AUSTRALIA TEL: 08 9302 2526 Email: admin@euroflex.com.au...
