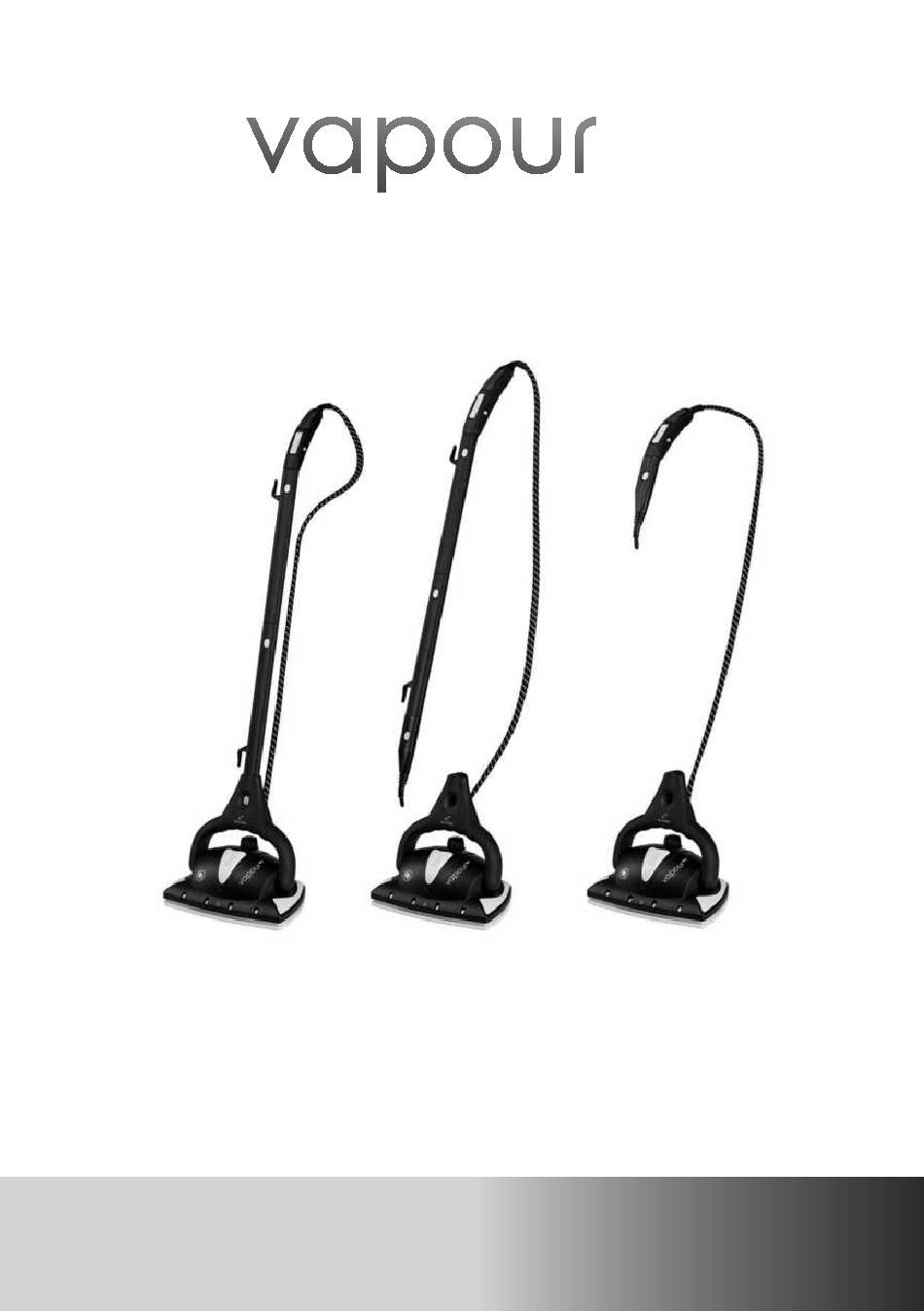

- Page 1 HYBRID FLOOR STEAMER All in One Steam Cleaner INSTRUCTION MANUAL Before using this product, please read the instructions and keep it for future references.
- Page 2 I M P O R TA N T S A F When using an electrical appliance, basic safety precautions should always be observed, including the following: Read all instructions before using this appliance. WARNING! To reduce the risk of fi re, electrical shock, or injury: 1.
- Page 3 E T Y I N S T R U C T I O N Look closely at steamer and follow all labels and marking instructions. 10. Do not put any objects into openings. Do not use with any opening blocked. 11.
- Page 4 I M P O R TA N T S A F 19. The Steamer is not intended for space heating purposes. 20. To reduce the likelihood of circuit overload, do not operate another high wattage appliance on the same circuit. Plug in to a standard (220-240V, 50/60Hz) electrical outlet.
- Page 5 E T Y I N S T R U C T I O N CAUTIONS •Do not use your Floor Steamer without a Hard Surface Pad or Carpet Glide & Pad attached to the system. •Never leave your Floor Steamer in one spot on any surface for any period of time.
- Page 6 One (1) Floor Steamer 1 - Steam Handle with Switch 2 - Locking Buttons 3 - Cord Winders 4 - Cleaning Hose Clamp 5 - Measuring Cup (pre-marked) 6 - Boiler Cap 7 - Steam Ready Indicator Light (green) 8 - Power Indicator Light (orange) 9 - Power Cord 10 - Steam Nozzles...
- Page 7 ACCESSORIES 1 - Detail Nozzle 2 - Nylon Small Brushes 3 - Window Cleaner 4 - Small Brush Adapter 5 - Small Brush 6 - Fitted Microfi ber Pad for Small Brush 7 - Scraper 8 - Grout Brush 9 - Accessory Bag Product Description...
- Page 8 FLOOR STEAMER MODE Assembly of Parts & Preparation of Steamer Make sure all parts are in the box (see pg 6-7). IMPORTANT! FOLLOW THESE INSTRUCTIONS CAREFULLY. WARNING! Always ensure steam switch is off and not steaming when attaching an accessory to the unit. A.
- Page 9 B. Attach Cleaning Pads to Steamer WARNING! To prevent fl oor damage, ALWAYS attach either the Microfi ber Floor Pad or the Carpet Glide Accessory with Carpet Pad when using your Floor Steamer. NEVER USE WITHOUT EITHER OF THESE ATTACHMENTS AFFIXED TO THE MACHINE. ATTACHING SCRUBBING FLOOR PAD Scrubbing Floor Pad –...
- Page 10 C. Filling Boiler with Water WARNINGS: • Carefully read all instructions before removing Boiler Cap. • Always unplug appliance before fi lling the Boiler. IMPORTANT Use ordinary tap water. Distilled or demineralized water is recommended if tap water is too hard. DO NOT add detergents, perfumes, oils, or other chemical substances to the Boiler.
- Page 11 Using Your Floor Steamer A. Using the Parking Pad You can use the Parking Pad if the Steamer is warm or hot. CAUTIONS The Parking Pad is provided to prevent fl oor damage that can result from leaving a hot steamer resting on the same spot for too long.
- Page 12 D. Using Steam (continued) • To emit steam from the front nozzles and the maximum steam from the underside of the steamer, press the REAR button on the handle. • IMPORTANT: at the end of the cleaning task, press the button on the left side to lock the appliance in safety mode.
- Page 13 WARNING: Let Steamer cool 5 minutes before opening Boiler Cap. Use care when opening Boiler Cap as it may still be hot and steam may escape, causing burns. If Boiler is still hot, water may spurt out during refi lling which can also cause burns. •...
- Page 14 PORTABLE STEAM CLEANER MODE Multipurpose Portable Steam Cleaner The Hybrid Floor Steamer is a 2 in 1 model that converts into a multipurpose portable steam cleaner with just one click. The portable steam cleaner features include: 1. Lightweight and portable unit. 2.
- Page 15 C. Attach Extension Tube to Brush Adapter Once the desired Brush is attached to the Brush Adapter, press the locking button on the Extension Tube while sliding the Tube in the Brush Adapter. Ensure the locking button and the hole on the Brush Adapter line up.
- Page 16 G. Attach Nylon Detail Brush to Detail Nozzle The Nylon Brush is used to help scrub particularly tough dirt. CLICK To use: Push the Nylon Brush on the end of the Detail Nozzle. (Detail Nozzle should be connected to the Steam Handle or Extension Tubes.
- Page 17 J. Attaching Microfi ber Pad to Small Brush A fi tted Microfi ber Pad should be placed over the bristles of the Small Brush to clean smooth surfaces such as kitchen cupboards, splash backs, countertops, etc. Fit the Small Microfi ber Pad over the Small Brush as shown below.
- Page 18 Turning Steam Cleaner Off • To turn Steam Cleaner off, press the Power Switch and unplug the electrical cord from the power outlet. • Any remaining water can be left in the unit. REMINDERS • We recommend distilled or demineralised water as the best way to care for and utilize your Steam Cleaner.
- Page 19 The cleaning of the Boiler and Steamer is the sole responsibility of the appliance owner. Calcium, mineral deposits and other sediments left to build up in the Steam Cleaner causing it to fail and/or the steam pathways in the Steam Cleaner to block, is not covered by the product warranty.
- Page 20 Steam Cleaner Tips & Reminders Steam cleaning allows the user to clean chemical-free by using the power of steam, in place of harsh chemical-based cleaners. The heat from the steam softens and loosens dirt on surfaces, while the steam pressure lifts the dirt away. All that is left to do is to wipe the surface to remove the dirt and moisture using a cloth (preferably with a microfi...
- Page 21 Water Use ordinary tap water for all cleaning. In hard water areas, we recommend distilled or demineralised water to reduce the formation of calcium and other mineral deposits in the Steam Cleaner. Use distilled or demineralised water when steaming light coloured fabrics to eliminate the possibility of hard water stains.
- Page 22 Microfi ber Pad Care & Cleaning Your Microfi ber Pads are designed for hundreds of uses. Clean Pads regularly, either by hand washing (using mild soap and warm water) or in your clothes washer on a delicate cycle, cool water. Never use fabric softener or bleach. We recommend letting Pads air dry to maintain maximum long term effectiveness.
-
Page 23: Troubleshooting
Troubleshooting ISSUES POSSIBLE CAUSES SOLUTIONS Steam is not coming out of Improper Handle Assembly Call Customer Service to receive instruc ons to correct the Steam Nozzles the problem The Hard Surface Floor Pad Not enough pressure was Posi on Steamer about 2” above Pad and FIRMLY press is not adhering to Steamer applied when a aching Pad it down onto the Pad... -
Page 24: Customer Support
Team can assist you with getting the best cleaning results from your Floor Steamer, they are full of helpful steam cleaning tips, too. Customer Support Line AUSTRALIA 1800 663 866 NEW ZEALAND 0800 666 783 Euroflex Australia Pty Ltd 79 Furniss Road DARCH WA 6065 AUSTRALIA TEL: 08 9302 2526 Email: admin@euroflex.com.au...
