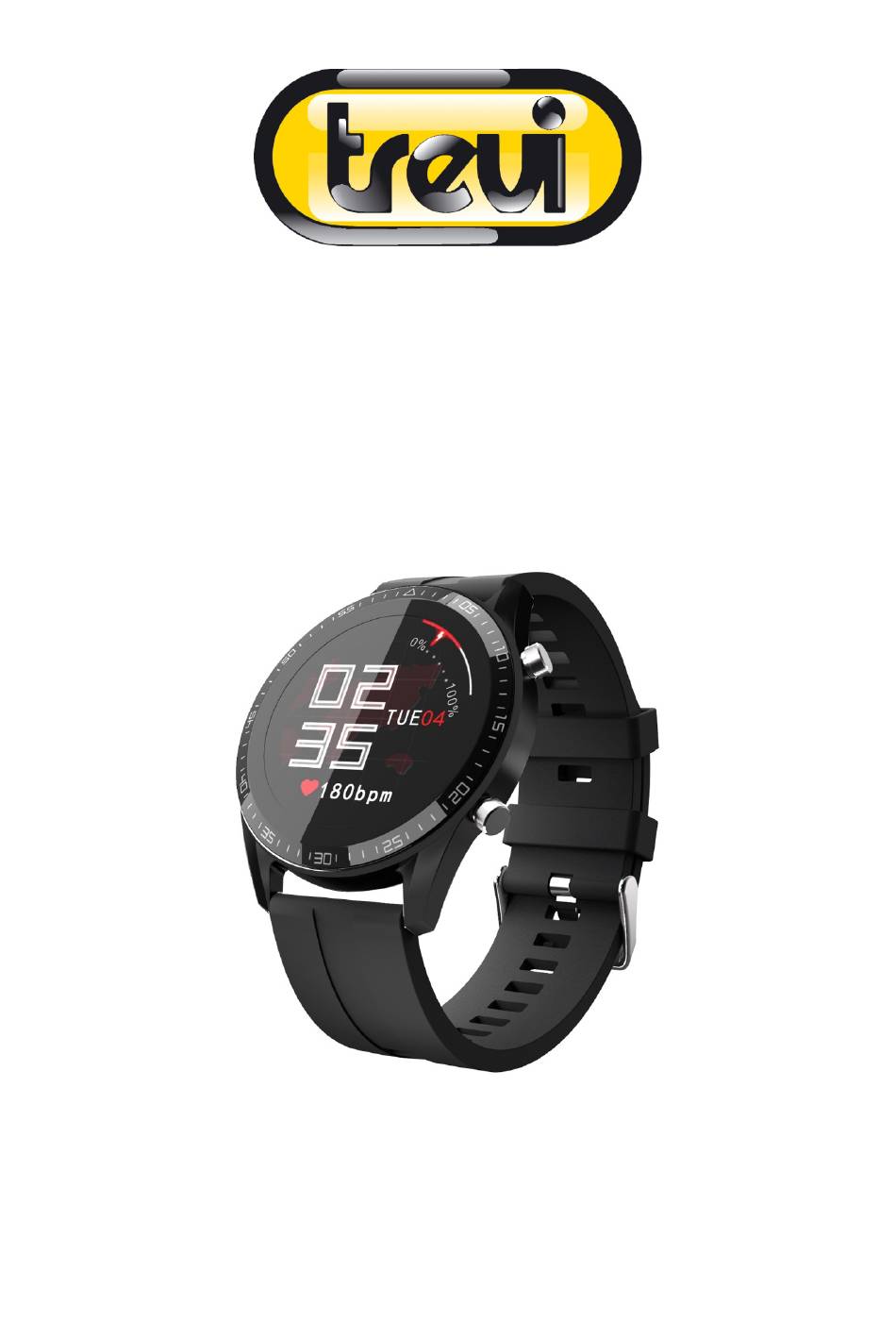

- Page 1 T-Fit 290 HBT Guida utente Italiano User guide English...
- Page 2 Bracelet operation 7. When the bracelet is off, charge or press and hold the side button of the bracelet for 3 seconds. 8. When the bracelet is turned on, switch to the shutdown interface, press and hold the function key for 3 seconds, the watch vibrates to shut down. 9.
- Page 3 Bluetooth connection: After the pairing is successful, the APP automatically saves the Bluetooth address of the bracelet. When the APP is open or running in the background, it will automatically search and connect the bracelet. Data synchronization: pull down the synchronization data manually on the APP homepage; the bracelet can store 7 days of offline data.
- Page 4 Status interface Status interface (the main interface slides to the left to display the current interface, record the total steps, distance and calories of the watch. Every night at 00:00, the watch automatically resets the data to recalculate the data for the new day, while saving historical data and uploading the APP).
- Page 5 Motion interface Single click this interface (or press the upper right button) to enter the specific sports interface, including running, cycling, swimming, skipping rope, table tennis, badminton, tennis and other 24 sports, slide the watch screen up and down to switch the specific sports interface; single specific sports The interface starts to exercise, enter the exercise details interface, slide the screen to the right or short press the button on the side of the watch to end the current exercise and return to the specific exercise interface.
- Page 6 Stopwatch Switch to this interface, single click or short press the wristband side button stopwatch to start timing, again single click or short press the wristband side button to time the pause, long press the wristband side button for 3 seconds to clear the time, slide right to exit the screen and return to the upper level interface.
- Page 7 Incoming call reminder: When an incoming call comes, the bracelet will vibrate and display the name or number of the incoming call. If the APP opens the "Call Rejection" function, press and hold the bracelet function key for three seconds to reject the call. SMS reminder: when receiving a SMS, the bracelet vibrates and displays an icon reminder to view the content of the SMS with a single point.
- Page 8 • The appliance must not be exposed to dripping or splashing water. No liquid-filled objects, such as vases, must be placed on the appliance. • If liquids penetrate into the device, bring the device to the nearest authorized TREVI service Centre.
- Page 9 Product Specifications: - Model: T-Fit 290 HBT - CPU: RTL8762C - Storage: ROM 128Mb - Touch screen: 1.28” 240x240 TFT - Bluetooth version: 5.0 - Features: Heart Rate, Find Phone, Pedometer, Sleep Tracking, Social Notifications (G-Mail, Facebook, Skype, Whatsapp, ecc...) - Lithium Ion Battery 3.7V/200mAh...
- Page 11 T-Fit 290 HBT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.trevi.it/dms/zidi/TREVI/DOCTFIT290HBT.pdf Trevi S.p.A. Strada Consolare Rimini- San Marino, 62 47924 Rimini (RN) Italy Made in CHINA...
