OEM Laser Diode Driver Evaluation Kit Chapter 4: LD2000R Overview
4.5.

Setup

The LD2000R is packaged as a component which, with minimal external
components, can be integrated into a system to make a complete laser diode
driver system. We recommend using printed circuit board construction to achieve
optimum results. The pinouts for the LD2000R are provided in Figure 1 and
described below. The LD2000R can be used with A, D, or F style diodes. The D
and F style diodes will need to be configured like an A style diode (see page 17
for diagrams). Please note that the EK2000 is not compatible with the F Pin
Style.

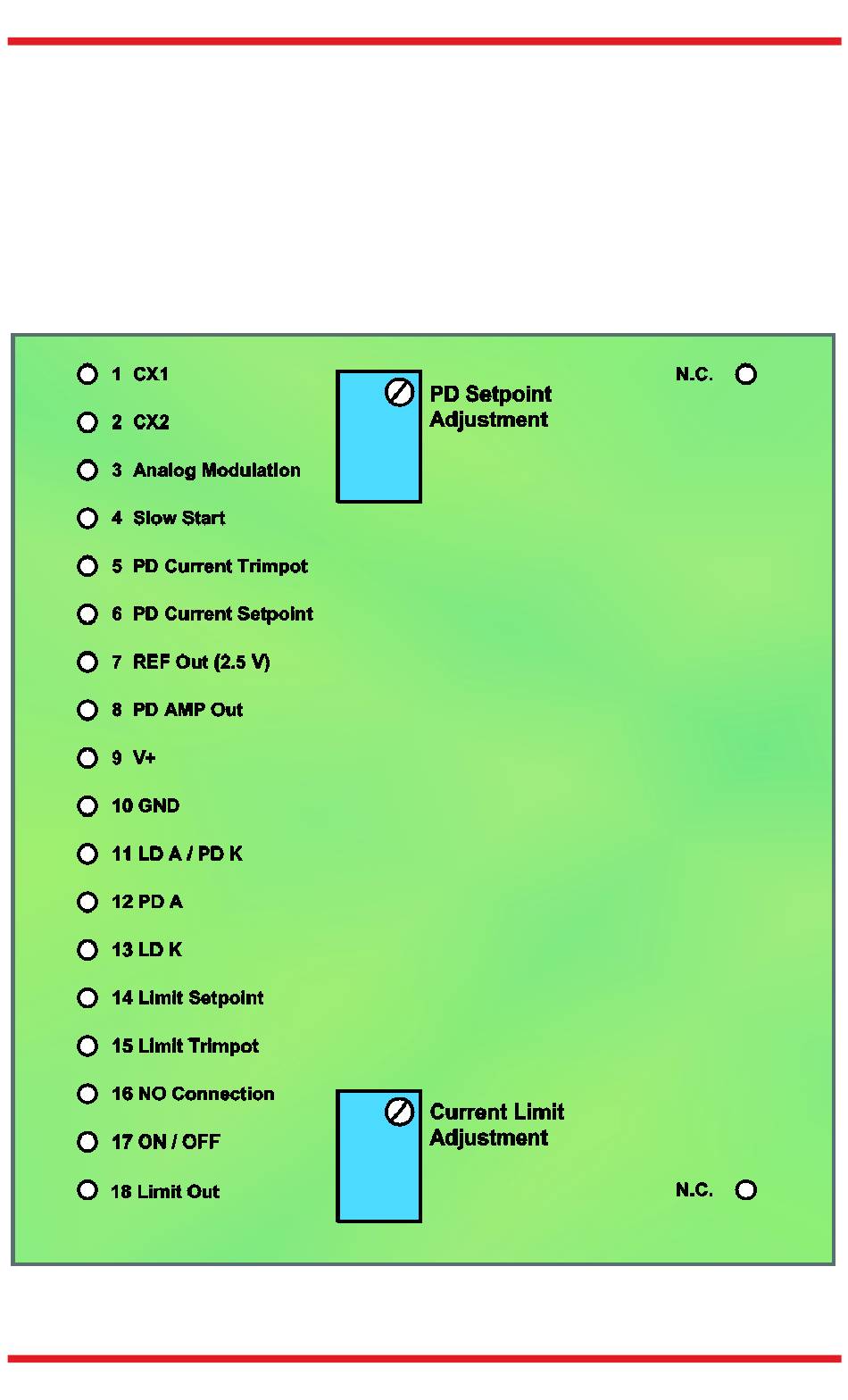

Figure 4 LD2000R Pin Out
