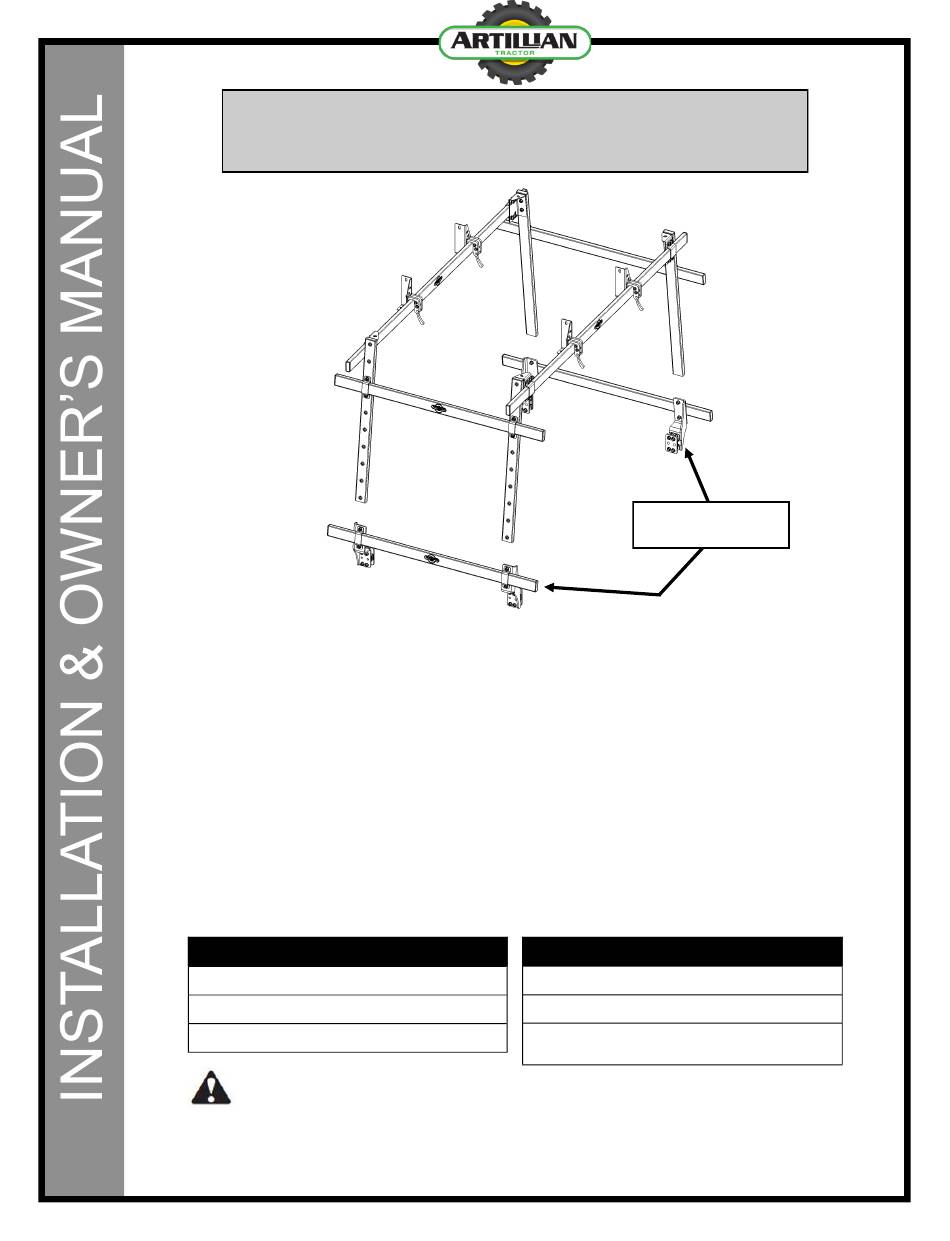

ARTILLIAN UTV BED MOUNTED TOOL RACK
The Artillian UTV Bed Mounted Tool Rack is an innovative system to
convert your UTV Tool Bar system into a full bed rack for carrying ladders,
wood, and any of the Artillian ROPS Mounted Tool Bar Accessories.
The Tool Rack attaches to two Tool Bar kits (p/n: 1UTVTB, sold
separately) which attach to most vehicle beds in minutes (some drilling
may be required). The base Tool Bar kit is 42" wide with unlimited
mounting bracket placement along the length. It adjusts to fit many
different vehicle beds. Simple, yet elegant mounting brackets included.
1" square tube clamps provided for UTV beds that have exposed tubing.
The proprietary Cam Lever Latching feature found on the many optional
accessories allows for installation and removal of a given accessory in
seconds.
Approximate Installation Time
Experienced Dealer Technician – 30 Minutes
Average Dealer Technician – 45 Minutes
Do-It-Yourself – 90 Minutes
CAUTION
The contents of this envelope are the property of the owner. Leave with the owner when installation is complete.
All images shown are for illustration purposes only. Actual product may vary due to product enhancement.
P/N: 1UTVRK
Approximate Product Specifications
Rack Width: Up to 68"
Weight: 55 lbs. (not including accessories)
Capacity: 100 lbs./tool bar (including
accessories)
Do not exceed the rated capacity for the Tool Rack or its accessories.
Doing so may result in damage to the Tool Rack and will void the warranty
Tool Bar p/n: 1UTVTB
(sold separately)
Rev. B, 02/02/2021
p/n: IM-1UTVRK
1 of 8
Advertisement
Table of Contents
Related Manuals for Artillian 1UTVRK
Summary of Contents for Artillian 1UTVRK
- Page 1 Tool Bar p/n: 1UTVTB (sold separately) The Artillian UTV Bed Mounted Tool Rack is an innovative system to convert your UTV Tool Bar system into a full bed rack for carrying ladders, wood, and any of the Artillian ROPS Mounted Tool Bar Accessories.
- Page 2 2 of 8 WARNINGS, TIPS, & REQUIRED TOOLS Artillian products feature an assembly of parts designed for your vehicle which require adjustment and alignment of components to accommodate vehicle variations and provide proper installation. For accurate installation, proper operation, and years of satisfaction, please read and understand the installation and owner’s manual fully prior to installing the...
- Page 3 Tool Bar relocated to a non-interfering location. Mounting Bracket Artillian strives to continuously improve our products. As such, the actual product may vary from the images shown throughout this manual. Fig. 1 INSTALLATION Park the vehicle on a flat, level surface.
- Page 4 4 of 8 KIT INSTALLATION 6. See fig. 6. Using the cross bar tube clamps (4 holes), install a cross bar (ref.: 68” long tube) from left to right onto the cross bar mounting brackets. Hardware: 5/16-18 X ¾” LG FHCS 5/16-18 Flange Nuts 7.
- Page 5 FEATURES AND OPERATION FEATURES The Artillian UTV Bed Mounted Tool Rack allows for one or more Artillian ROPS Mounted Accessories to be attached to the rack without reducing bed capacity. The innovation of the design is that any of the compatible accessories can be installed or removed from the Tool Rack in seconds, without the use of tools.
- Page 6 6 of 8 SERVICE PARTS: MOUNTING BAR ASS’Y. (REF.: 42” LG.) CROSS TUBE ASS’Y. (REF.: 68” LG.) VERTICAL TUBE ASS’Y. (REF.: 32” LG.) P/N: 8SV-113-00186 (QTY.: ONE) P/N: 8SV-113-00234 (QTY.: ONE) P/N: 8SV-113-00233 (QTY.: ONE) CROSS BAR MOUNT ASS’Y., LEFT CROSS BAR MOUNT ASS’Y., RIGHT CAM LEVER LATCH P/N: 8SV-110-00091-L (QTY.: ONE)
- Page 7 7 of 8 AVAILABLE ACCESSORIES: ROPS MOUNTED TOOLBOX, X-LARGE ROPS MOUNTED TOOLBOX, LARGE ROPS MOUNTED TOOL RACK P/N: 1RMTBXS P/N: 1RMTBXL P/N: 1RMTRK ROPS MOUNTED CHAINSAW MOUNT ROPS MOUNTED FUEL CAN HOLDER ROPS MOUNTED TOOL BASKET P/N: 1RMCSM P/N: 1RMFCH P/N: 1RMTBSK (chainsaw shown for illustration purposes) ROPS MOUNTED 5-GALLON BUCKET...
- Page 8 Artillian, LLC warrants to the original purchaser that this product will be free from defects in material and work- manship for a period of 90 days from the date possession taken by the original purchaser for use with Artillian hydraulic products and used as intended and under normal service and conditions for personal use.
