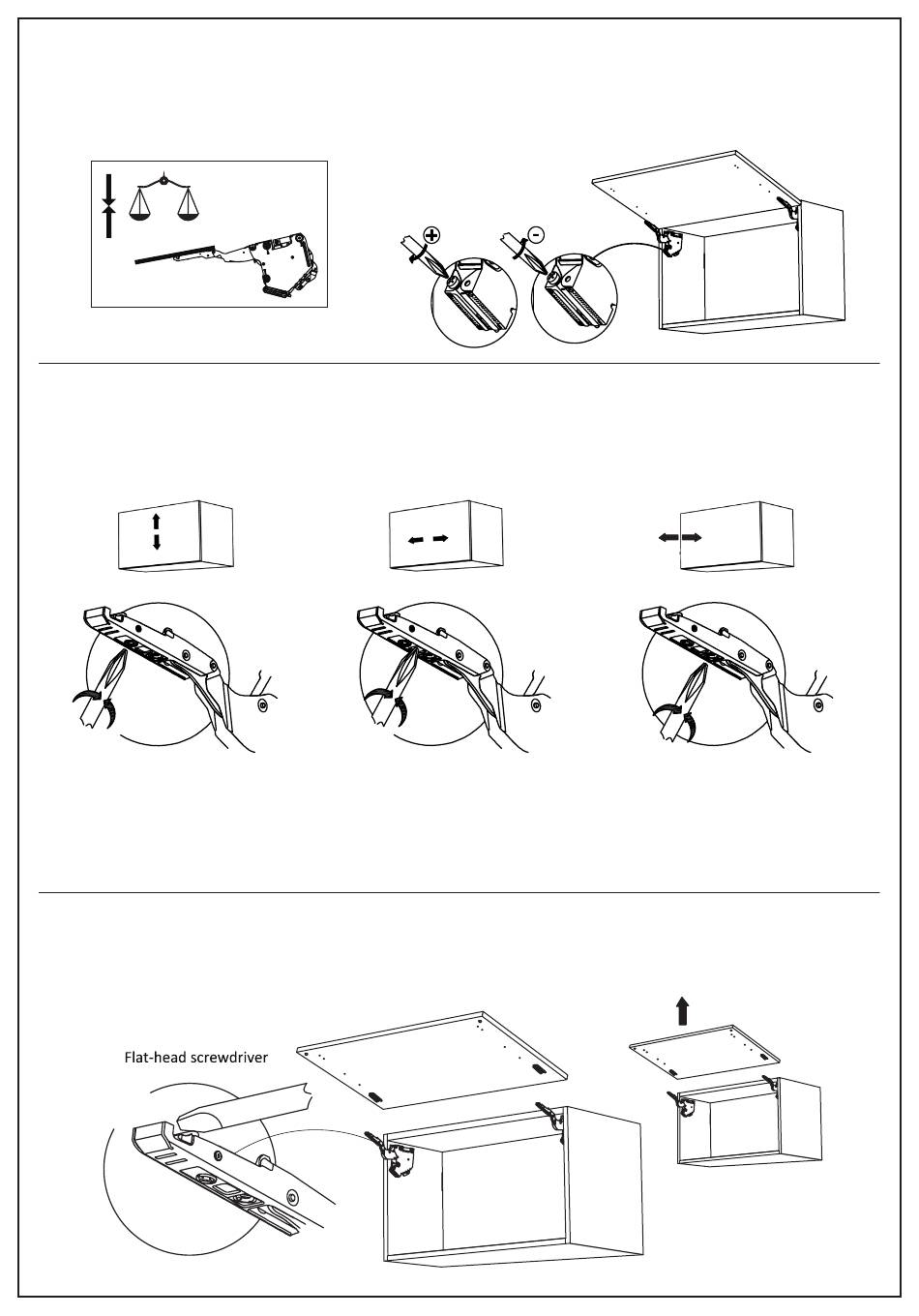

• To adjust the lift strength of the hinge, use a Philips screwdriver on the screw beneath the hinge arm.
• Adjusting the screw clockwise will increase the strength causing the door to stay open on its own.
• Adjusting the screw counterclockwise will decrease the strength causing the door close without support.
You may find that adjustment is needed with the hinges to line up the door properly. Using a Phillips screwdriver you
can adjust the hinges in six directions.
A-up/down adjustment
To adjust the door up and down in
height, rotate the screw in the front
of the hinge as shown in illustration.
You may have to make adjustments to both hinges (left and right) on the door to see results.
• To remove the drawer front, insert a flat-head screwdriver between each hinge arm and each hinge mounting plate
in the location shown and rotate slightly to un-clip and detach.
CLICK!

ADJUSTMENTS

DOOR ADJUSTMENT AND REMOVAL

B-left/right adjustment
To adjust the door left and right,
rotate the screw in the middle of the
hinge as shown in the illustration.

REMOVING THE DRAWER FRONT

7
C-in/out adjustment
To adjust the door in and out,
rotate the screw on the back of
the hinge as shown in illustration.
