STEP 4:

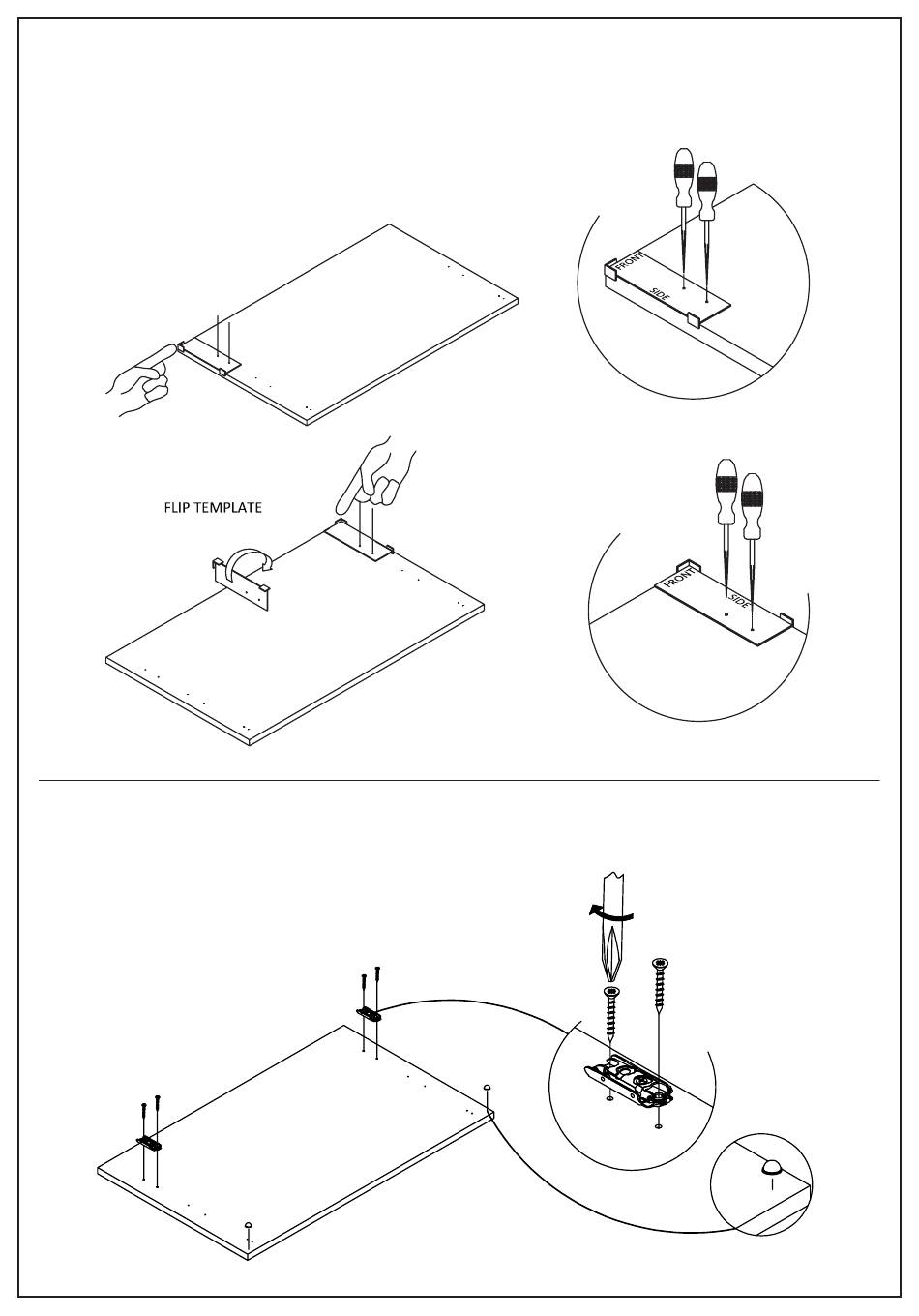

• On the back side of the drawer front, on the top corners, align the template on the left end as shown and mark
each drilling hole.
• Flip the template as shown and repeat above step on the right end of the drawer front interior.
Note: For lift-up hinge cabinets, drawer fronts are used in place of doors.

STEP 5:

• Attach each hinge plate in the positions shown, using 4 screws, and tighten each to secure.
• Attach 2 bumpers (478-9833) to each inner corner as shown.
