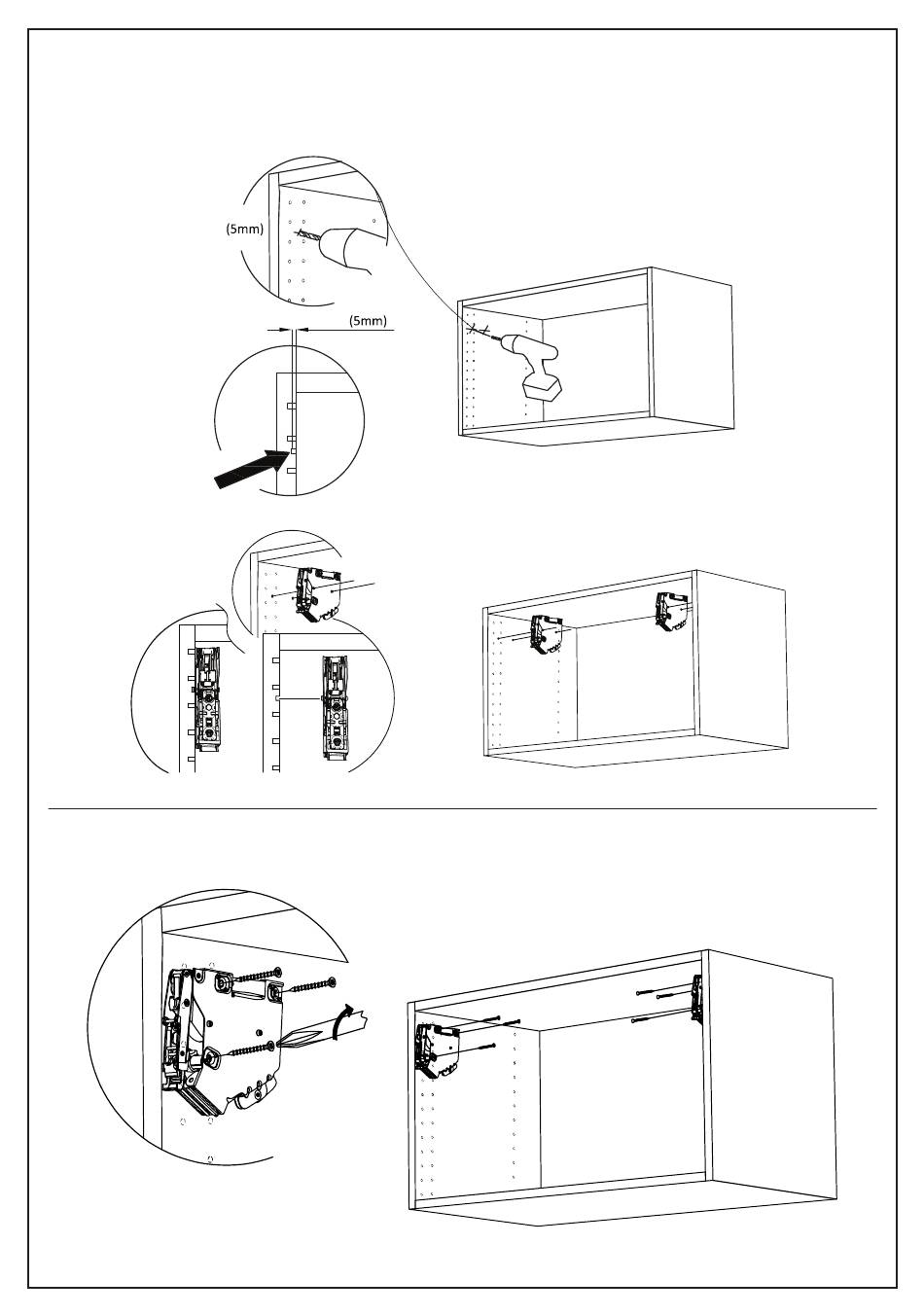

STEP 2:

• Use a 3/16" drill bit to drill 3/16" (5mm) deep into the marked locations of the box. Use tape to mark 3/16" (5mm)
deep on the drill bit to prevent drilling all the way through the box.
• These holes will be used to hold the hinge in the correct location, by the two short pegs, while being secured into place.
• Repeat this step on both sides of the cabinet box.
3/16"

STEP 3:

• Secure the hinge into place by installing three long screws into the holes of the lift up hinge.
3/16"
