Lift-Up Hinge Installation; Step 1 - Klearvue Cabinetry 478-3856 Instructions Manual

NOTE: The hinge template marks the location of the two pegs on the lift up hinge. These set the placement for
the hinge and do not mark the screw locations. Please follow the instructions below for proper installation.

LIFT-UP HINGE INSTALLATION

STEP 1:

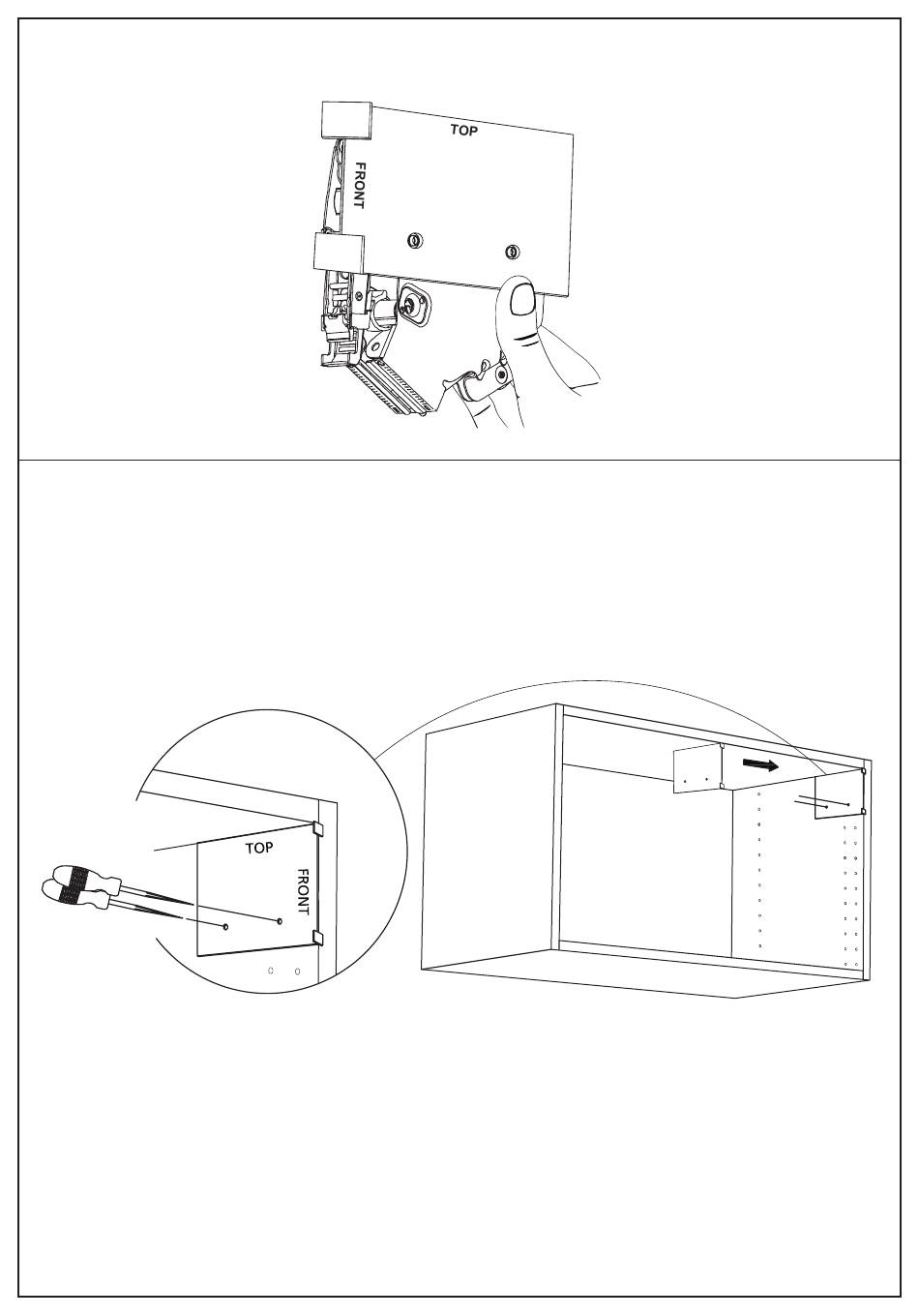

• Align the hinge template to the top of the cabinet as shown in the image below.
• Mark the location for the two pegs that are on the lift up hinge onto the cabinet box.
• Repeat this step in the top, front corner on both sides of the cabinet box.
2
