# 20-01-10
1 / 16
MODEL #
FOA-DK5684
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America FOA-DK5684
Summary of Contents for Furniture of America FOA-DK5684
- Page 1 MODEL # FOA-DK5684 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 16...

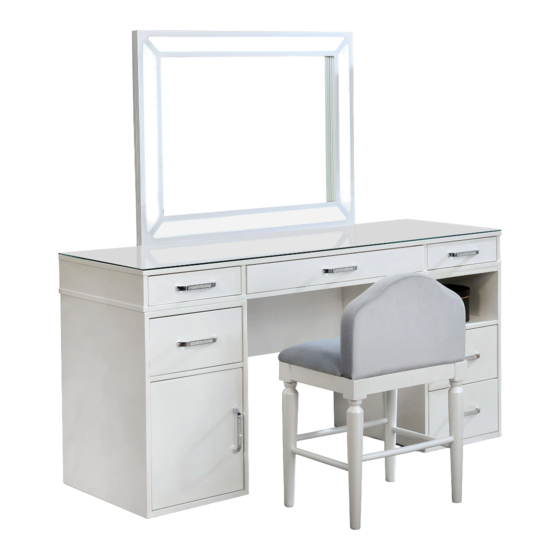

- Page 5 VANITY SET FOA-DK5684 #1 1pc #2 1pc #3 1pc Table top Left bottom cabinet Right bottom cabinet #4 1pc #5 2pcs #6 1pc Mirror support rail Backplane Mirror #7 2pcs #8 2pcs #9 1pc Stool Left leg Stool Right leg...
- Page 6 #13 1pc #14 1pc Stool cushion Glass #A 25pcs #B 8pcs #C 25pcs Bolt Ø1/4" x 1-3/16" Bolt Ø1/4" x 2" Lock Washer Ø1/4" #D 25pcs #E 1pc #F 12pcs Allen Wrench 4mm Flat Washer Ø5/16" Wood Dowel Ø8 x 20mm #I 6pcs #H 1pc #G 6pcs...
-
Page 7: Exploded View
Exploded View 7 / 16... - Page 8 FOA-DK5684 is packed in 3 cases Carton Disignation Part Hardware #A x 25pcs Table top #B x 8pcs Mirror support rail (2pcs) #C x 25pcs Backplane #D x 25pcs Stool Left leg(2pcs) #E x 1pc Stool Right leg(2pcs) #F x 12pcs...
- Page 9 ASSEMBLY INSTRUCTIONS Insert dowels (#F) to back (#6). Align back (#6) to the cabinets (#2,3), then secure by using bolts (#A) with washers (#C,D). Part #2 x1pc Part #3 x1pc Part #6 x1pc Hardware #A x4pcs Hardware #C x4pcs Hardware #D x4pcs Hardware #F x4pcs...
- Page 10 ASSEMBLY INSTRUCTIONS Insert suction cups (#J) to the top, then carefully place glass (#14) onto the top. Part #14 x1pc Hardware #I x6pcs Part #5 x2pcs Hardware #A x4pcs Hardware #C x4pcs Hardware #D x4pcs Align mirror supports (#5) to the back of unit, then secure by using bolts (#A) with washers (#C,D).
- Page 11 ASSEMBLY INSTRUCTIONS Align mirror (#4) to the mirror Part #4 x1pc supports (#5), then secure by Hardware #A x4pcs using bolts (#A) with washers Hardware #C x4pcs (#C,D). Hardware #D x4pcs Secure drawer handles to the front of the drawers. 11 / 16...
- Page 12 ASSEMBLY INSTRUCTIONS Hardware #H x1pc Hardware #J x1set 12 / 16...
- Page 13 ASSEMBLY INSTRUCTIONS Align legs (#8) to seat frame (#9), then Part #8 x2pcs secure by using bolts (#B) with washers Part #9 x1pc (#C,D). Hardware #B x4pcs Hardware #C x4pcs Hardware #D x4pcs Align legs (#7) with stretchers (#10,11) to Part #7 x2pcs the frame (#9).
- Page 14 ASSEMBLY INSTRUCTIONS Align backrest (#12) to the frame (#9), then secure by using bolts (#A) with washers (#C,D). Part #12 x1pc Hardware #A x5pcs Hardware #C x5pcs Hardware #D x5pcs Part #13 x1pc Align seat (#13) to the frame (#9), then Hardware #G x6pcs secure by using screws (#G).
- Page 15 ASSEMBLY INSTRUCTIONS 15 / 16...
- Page 16 16 / 16...
