VERSION # 21-7-29
1 / 11

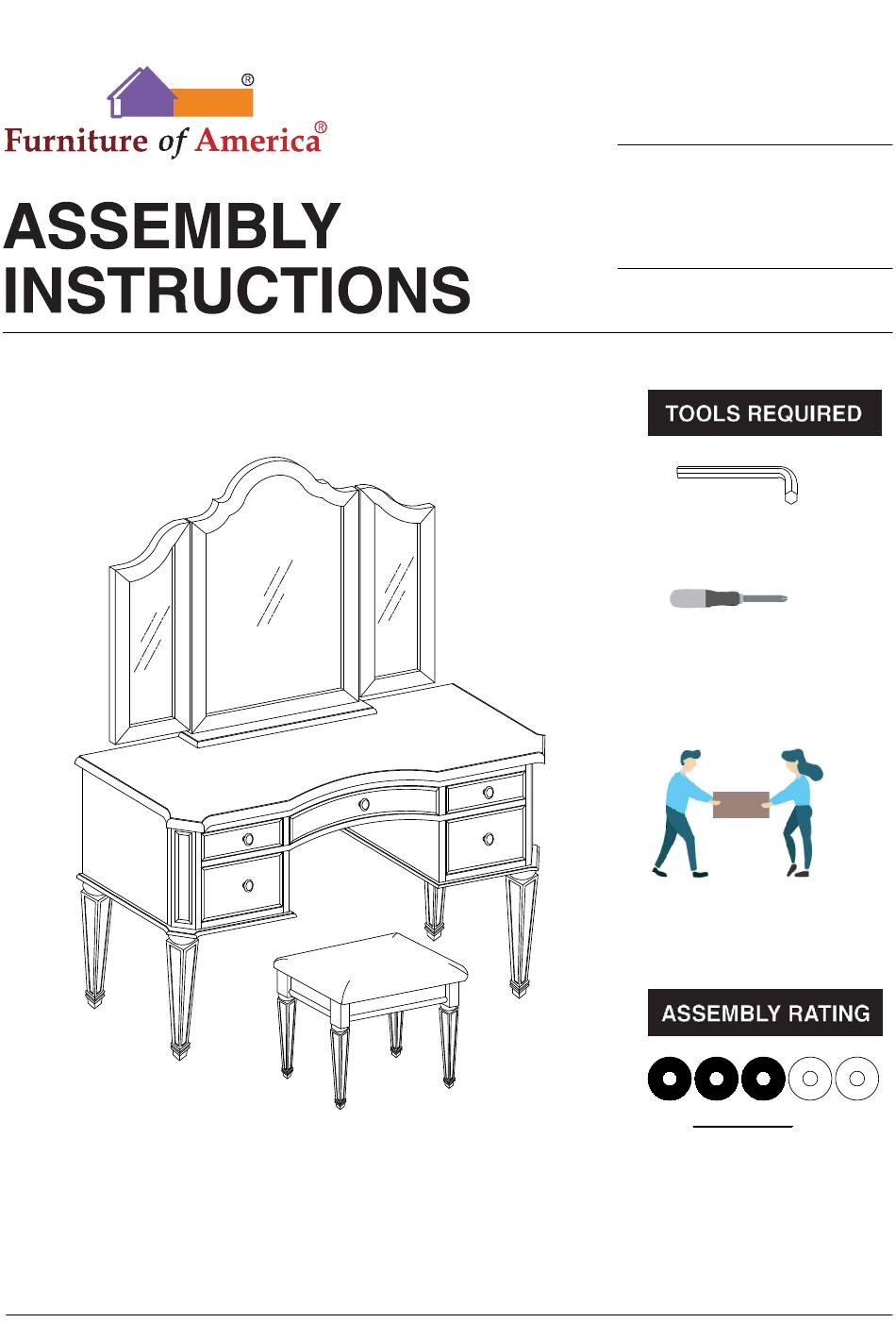

MODEL #
FOA-DK930
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America FOA-DK930
Summary of Contents for Furniture of America FOA-DK930
- Page 1 MODEL # FOA-DK930 Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 11...

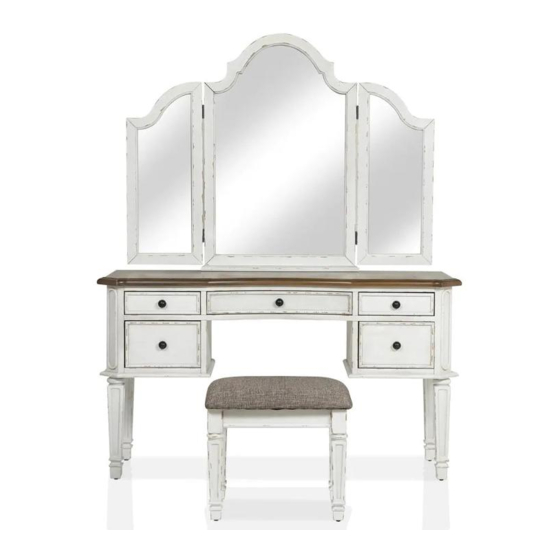

- Page 5 VANITY SET FOA-DK930 #1 1pc #2 4pcs #3 2pcs Table Top Table Leg Mirror support rail #4 1pc #5 1pc #6 4pcs Mirror Stool Seat Stool Leg #B 8pcs #A 8pcs #C 16pcs Bolt Ø1/4'' x 1-3/8'' Bolt Ø1/4'' x 2'' Lock washer Ø1/4''...
- Page 6 #D 16pcs #E 1pc #F 1set Allen Wrench 4mm Washer Ø5/16'' x 19mm Anti-tip Skit 6 / 11...
- Page 7 CM-DK930 is packed in 2 cases Disignation Part Hardware Carton #A x 8pcs Table Top #B x 8pcs #C x 16pcs #D x 16pcs Table Leg (4pcs) #E x 1pc CM-DK930-1 #F x 1set Stool Seat Stool Leg (4pcs) Mirror support rail(2pcs) CM-DK930-2 Mirror...
- Page 8 ASSEMBLY INSTRUCTIONS Secure legs (#2) onto top (#1). Part #1 x1pc Part #2 x4pcs Align mirror supports (#3) to Part #3 x2pcs the desk, then secure by Hardware #A x4pcs using bolts (#A) with Hardware #C x4pcs washers (#C,D). Hardware #D x4pcs 8 / 11...
- Page 9 ASSEMBLY INSTRUCTIONS Align mirrors (#4) to the mirror supports, then secure by using bolts (#A) with washers (#C,D). Part #4 x1pc Hardware #A x4pcs Hardware #C x4pcs Hardware #D x4pcs Hardware #F x1SET 9 / 11...
- Page 10 ASSEMBLY INSTRUCTIONS Align stool legs (#6) to the seat (#5), then secure by using bolts (#B) with washers (#C,D). Part #5 x1pc Part #6 x4pcs Hardware #B x8pcs Hardware #C x8pcs Hardware #D x8pcs 10 / 11...
- Page 11 11 / 11...
