MODEL #
FOA-DK5240
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - Persons
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America FOA-DK5240
Summary of Contents for Furniture of America FOA-DK5240
- Page 1 MODEL # FOA-DK5240 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - Persons Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 11...

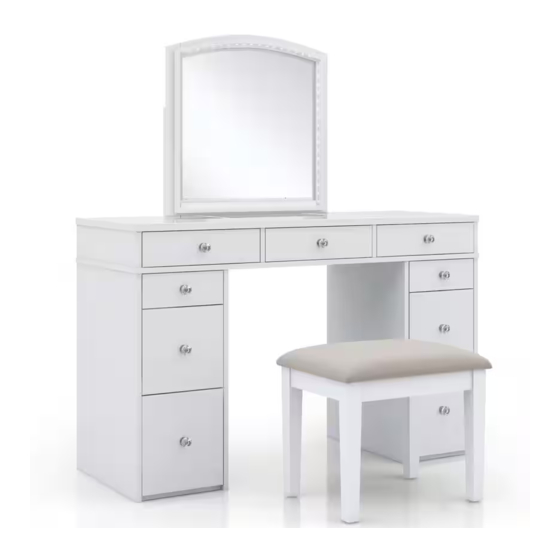

- Page 5 VANITY SET FOA-DK5240 #1 1pc #2 2pcs #3 2pcs #4 1pc Table Top Mirror Support Rail Mirror Bottom Cabinet #5 1pc #6 4pcs Seat #A 16pcs #B 16pcs #C 16pcs #D 1pc Flat Washer Ø5/16" Lock Washer Ø1/4" Bolt Ø1/4" x 1-3/8"...
- Page 6 #G 8pcs #E 8pcs #F 1pc Plug Bolt Ø1/4" x 2" Wood Dowel Ø8 x 20mm 6 / 11...
- Page 7 ASSEMBLY INSTRUCTIONS Turn the tabs on the bottom of the drawers to pull out the drawers. Smoking box Sucker Insert dowels (#E) to the bottom cabinet (#2), then align top (#1) to bottom cabinet (#2). Secure by using bolts (#A). Part #1 x1pc Part...
- Page 8 ASSEMBLY INSTRUCTIONS Align mirror supports (#3) to the desk, then secure by using bolts (#A) with washers (#B,C). Part #3 x2pcs Hardware #A x4pcs Hardware #B x4pcs Hardware #C x4pcs Align mirror (#4) to the mirror supports (#3), then secure by using bolts (#A) with washers (#B,C).
- Page 9 ASSEMBLY INSTRUCTIONS Turn tabs back around, then insert drawers. Remove knobs from inside of drawers, then reattach knobs to outside of drawers. 9 / 11...
- Page 10 ASSEMBLY INSTRUCTIONS Hardware #F x1pc Part #5 x1pc Part Align legs (#6) to seat (#5), then secure #6 x4pcs by using bolts (#G) with washers (#B,C). Hardware #B x8pcs Hardware #C x8pcs Hardware #G x8pcs 10 / 11...
- Page 11 ASSEMBLY INSTRUCTIONS ASSEMBLY COMPLETED Please ensure the furniture rests on an even and flat surface. If the product wobbles or feels loose, double-check all bolts and/or screws are properly tightened and secured. Keep this handy! Please retain this instruction manual and any order-related information for future reference.
