MODEL #
FOA-DK5682
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America FOA-DK5682
Summary of Contents for Furniture of America FOA-DK5682

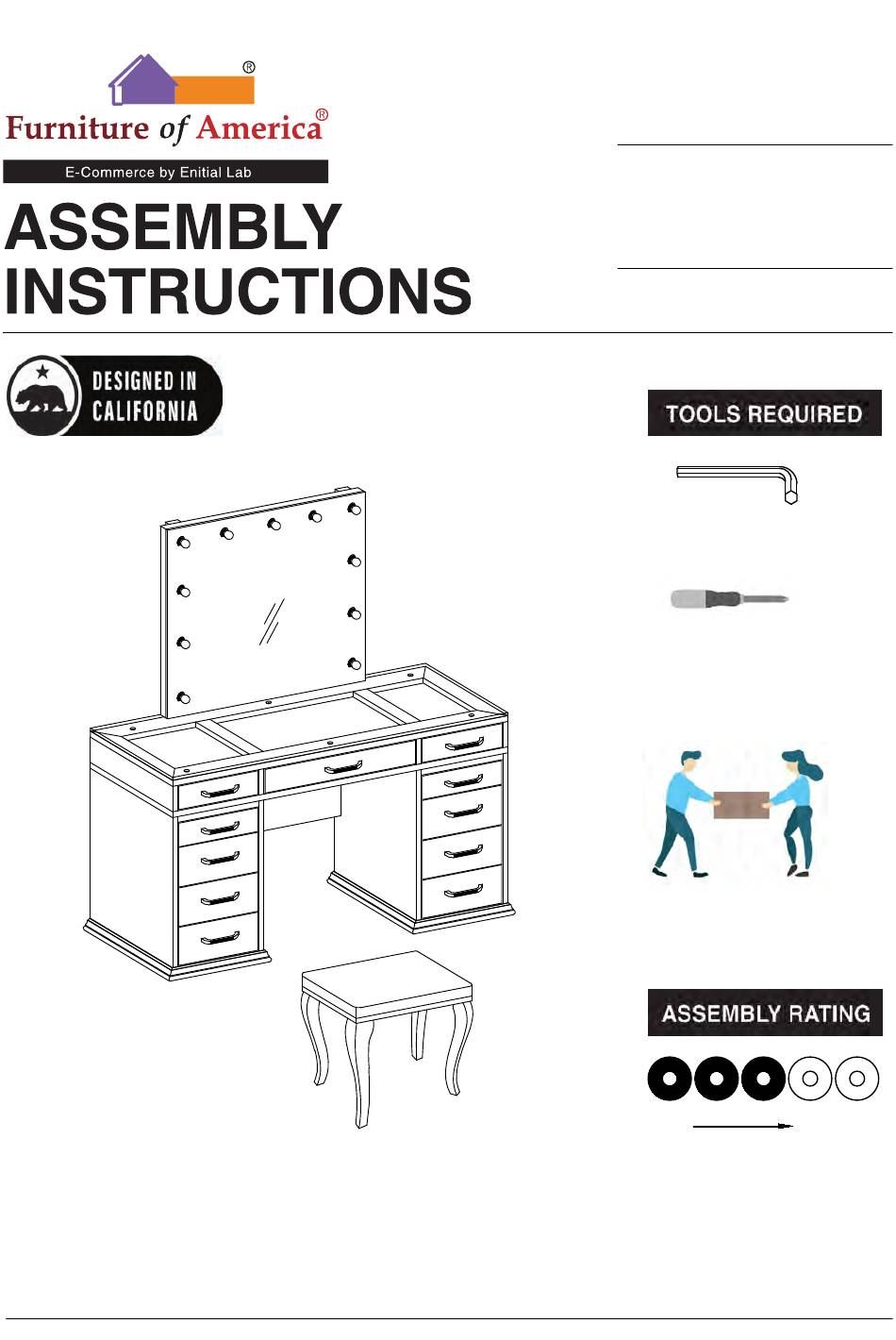

- Page 1 MODEL # FOA-DK5682 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 13...
- Page 5 VANITY SET FOA-DK5682 #1 1pc #2 1pc #3 1pc Left bottom cabinet Right bottom cabinet Table top #4 1pc #5 2pcs #6 1pc Mirror support rail Backplane Mirror #7 1pc #8 4pcs #9 1pc Stool Seat Stool Leg Glass #A 12pcs...
- Page 6 #D 20pcs #E 20pcs #F 1pc Allen Wrench 4mm Lock Washer Ø1/4" Flat Washer Ø5/16" #I 1set #H 6pcs #G 12pc s Wood Dowel Ø8 x 20mm Glass suction cup Ø26mm Anti-tip Skit 6 / 13...
- Page 7 FOA-DK5682 is packed in 3 cases Carton Disignation Part Hardware Left bottom cabinet FOA-DK5682-1 Right bottom cabinet #A x 12pcs Table top #B x 8pcs Mirror support rail #C x 8pcs (2pcs) #D x 20pcs #E x 20pcs Backplane FOA-DK5682-2...
- Page 8 ASSEMBLY INSTRUCTIONS Insert dowels (#G) to back (#6). Align back (#6) to the cabinets (#2,3), then secure by using bolts (#A) with washers (#D,E). Part #2 x1pc Part #3 x1pc Part #6 x1pc Hardware #A x4pcs Hardware #D x4pcs Hardware #E x4pcs Hardware #G x4pcs...
- Page 9 ASSEMBLY INSTRUCTIONS Insert suction cups (#H) to the top, then carefully place glass (#9) onto the top. Part #9 x1pc Hardware #H x6pcs Part #5 x2pcs Hardware #B x4pcs Hardware #D x4pcs Hardware #E x4pcs Align mirror supports (#5) to the back of unit, then secure by using bolts (#B) with washers (#D,E).
- Page 10 ASSEMBLY INSTRUCTIONS Align mirror (#4) to the mirror supports (#5), then secure by using Part #4 x1pc bolts (#B) with washers (#D,E). Hardware #B x4pcs Hardware #D x4pcs Hardware #E x4pcs Secure drawer handles to the front of the drawers. 10 / 13...
- Page 11 ASSEMBLY INSTRUCTIONS 1. Put your fingers on this icon of power in order to open or close the LED light. 2. Use your fingers to press and keeping hold this button, the light will to be more and more brighter. Against, if you continue press and hold it for the second time, the light will to be become more and more glimmer.
- Page 12 ASSEMBLY INSTRUCTIONS Part #7 x1pc Align legs (#8) to the seat (#7), then secure Part #8 x4pcs by using bolts (#C) with washers (#D,E). Hardware #C x8pcs Hardware #D x8pcs Hardware #E x8pcs 12 / 13...
- Page 13 13 / 13...
