FOA7916CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America FOA7916CK
Summary of Contents for Furniture of America FOA7916CK

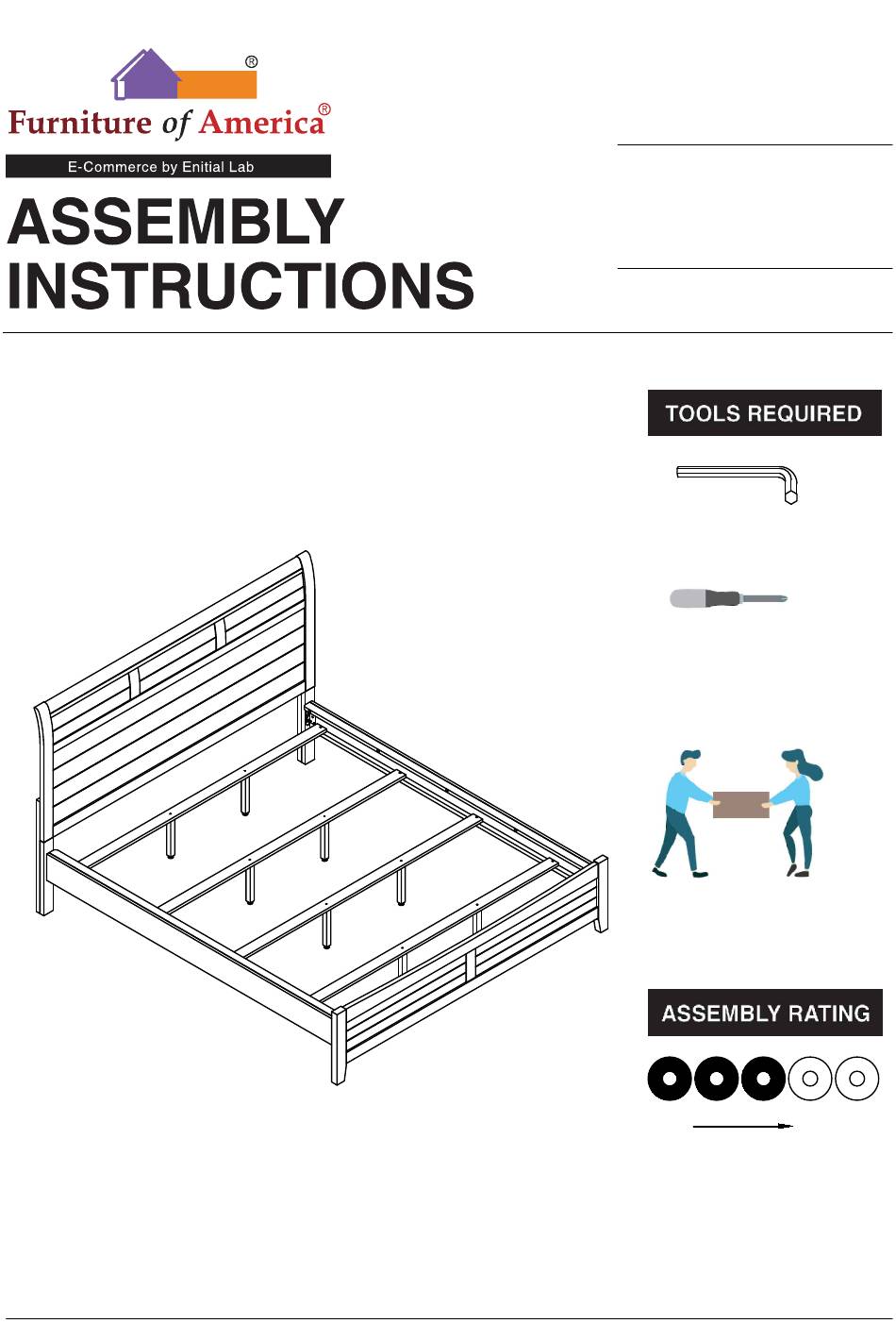

- Page 1 MODEL # FOA7916CK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 FOA7916CK #1 1pc #2 2pcs #3 1pc Headboard Headboard leg(L&R) Footboard #6 4 pcs #4 2pcs #5 8pcs (Ø5/16") Siderail Slat support leg Slat 250 x 30 x 30mm #A 6pcs #B 6pcs #C 6pcs Bolt Ø5/16" x 1-3/8" Lock Washer Ø5/16"...
-
Page 6: Exploded View

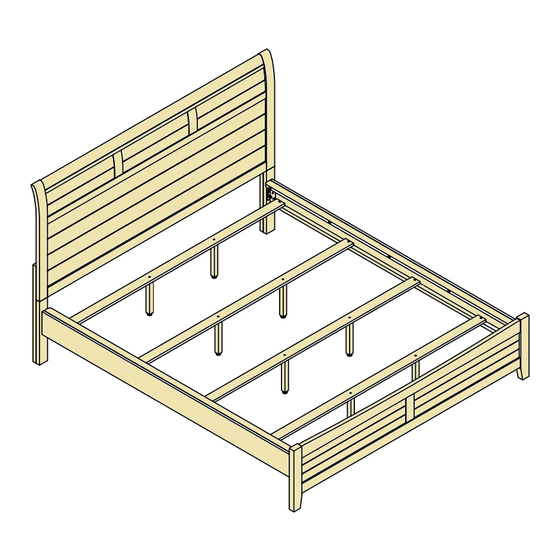

Exploded View 6 / 8... - Page 7 ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) to the headboard (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x1pc Part #2 x2pcs Hardware #A x6 pcs Hardware #B x6 pcs Hardware #C x6 pcs #B #C Attach bolts (#E) half way into the headboard (#1) and footboard (#3), then align side Part #3 x1pc...
- Page 8 ASSEMBLY INSTRUCTIONS Attach support legs (#5) to the slats (#6). Adjust the leveler of the support legs (#5) according to ground level. Part #5 x2pcs Part #6 x1pc Hardware #F x8 pcs Align slats (#6) to the side rails (#4), then secure by using screws (#F).
