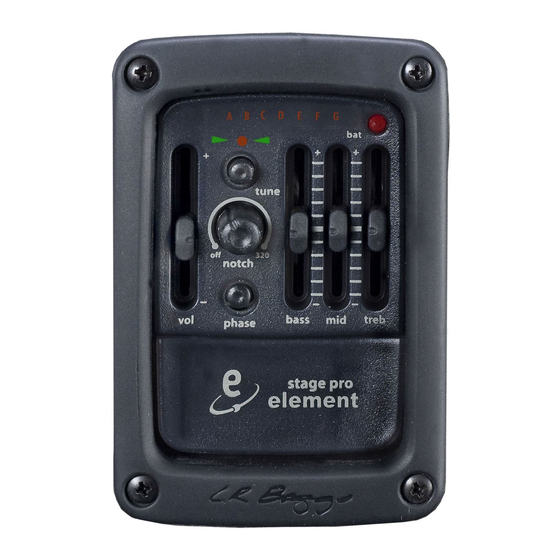

S p e c i f i c a t i o n S
Size: 3.5" x 2.8" x 2.2"
Weight (including battery): 5.6 oz.
Battery: single 9v
current consumption: Preamp-4.5mA, Tuner-14mA
Battery Life: 100+ hrs
Bass: +/- 9dB @ 80 Hz
Mid: +5/-9 @ 1kHZ
treble: +/- 12 dB unweighted
Signal to noise: -90dB unweighted
input impedance: 10 MegOhms
output impedance: 620 ohms
notch filter: off to 320hZ (sweepable),
1/8 octave, fixed -18 dB
lr Baggs warrants to the using purchaser that this product
shall be free from defects in workmanship and materials under
normal and proper use for a period of one (1) year.
483 NOrTH FrONTAGe rd., NiPOMO, CA 93444
PHONe (805) 929-3545 FAx (805) 929-2043
ww w.l rBAG G s . COM
U s e r ' s G u i d e
Advertisement
Related Manuals for L.R. Baggs Stagepro Element
Summary of Contents for L.R. Baggs Stagepro Element
- Page 1 S p e c i f i c a t i o n S Size: 3.5” x 2.8” x 2.2” Weight (including battery): 5.6 oz. Battery: single 9v current consumption: Preamp-4.5mA, Tuner-14mA Battery Life: 100+ hrs U s e r ’ s G u i d e Bass: +/- 9dB @ 80 Hz Mid: +5/-9 @ 1kHZ treble: +/- 12 dB unweighted...
- Page 2 C o n t r o l l a y o u t c. Bass: Adds or subtracts the lower frequencies. D. Mid: Adds or subtracts the midrange, nasal or “honky” type sounds. e. treb: Adds or subtracts the highest frequencies, “sparkle”...
Need help?
Do you have a question about the Stagepro Element and is the answer not in the manual?
Questions and answers
I cannot see how to open up the Element to install the 9V battery
To open the L.R. Baggs Stagepro Element to install the 9V battery, press down on the battery compartment until it pops out. Then remove the compartment, insert the 9V battery, place the compartment back in, and press it down to secure it.
This answer is automatically generated
