- Page 1 A C T I V E INSTALLATION MANUAL & USER’S GUIDE 483 N. FRONTAGE RD. NIPOMO, CA 93444 PHONE 805.929.3545...

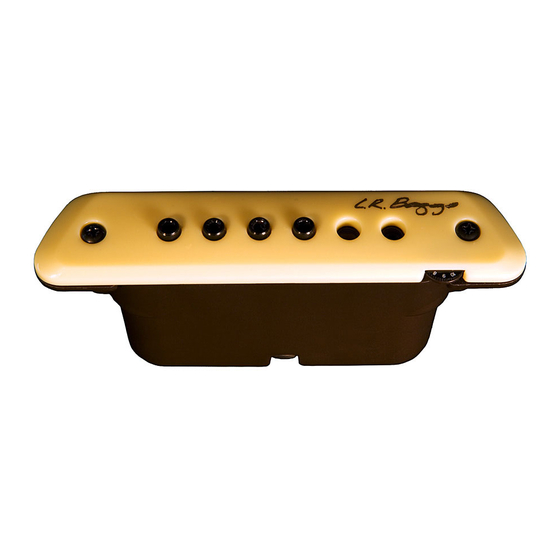

- Page 2 2 . O V E R V I E W A N D C A U T I O N S The M1 Active magnetic pickup, with its built-in all Class A discrete preamp, features outstanding body sensitivity with great warmth and presence.
- Page 3 3 . I N S T A L L A T I O N 3.1 Strapjack installation: If the guitar doesn’t already have a strapjack or a hole in the tail block, it will be necessary to drill one in order to use the strapjack. This jack requires a clean tail 1/2”...
- Page 4 4 . U S E R ‘ S G U I D E 4.1 Plugging in: The M1 Active will plug into practically anything with good results. If you want EQ or use a direct box, our Para DI and Venue DI provide both EQ and DI features.
- Page 5 4.4 Experimenting with pole piece heights: The pole pieces on the M1 Active are preset (for bronze acoustic strings ), but this is just a starting place. They are adjustable with the 3/32” Allen wrench to obtain the optimum balance and tone. The height of the pole pieces relative to the strings will have a profound e ect on the sound and balance of the pickup.
- Page 6 When adjusting the pole pieces downward you will meet additional resistance when you reach the bottom of the adjustment range. Do not force the pole pieces any further! This could damage the pickup permanently. 5 . S P E C I F I C AT I O N S : Battery type: CR2032 Battery life: 1000+ hours Current consumption: 135 uA...
