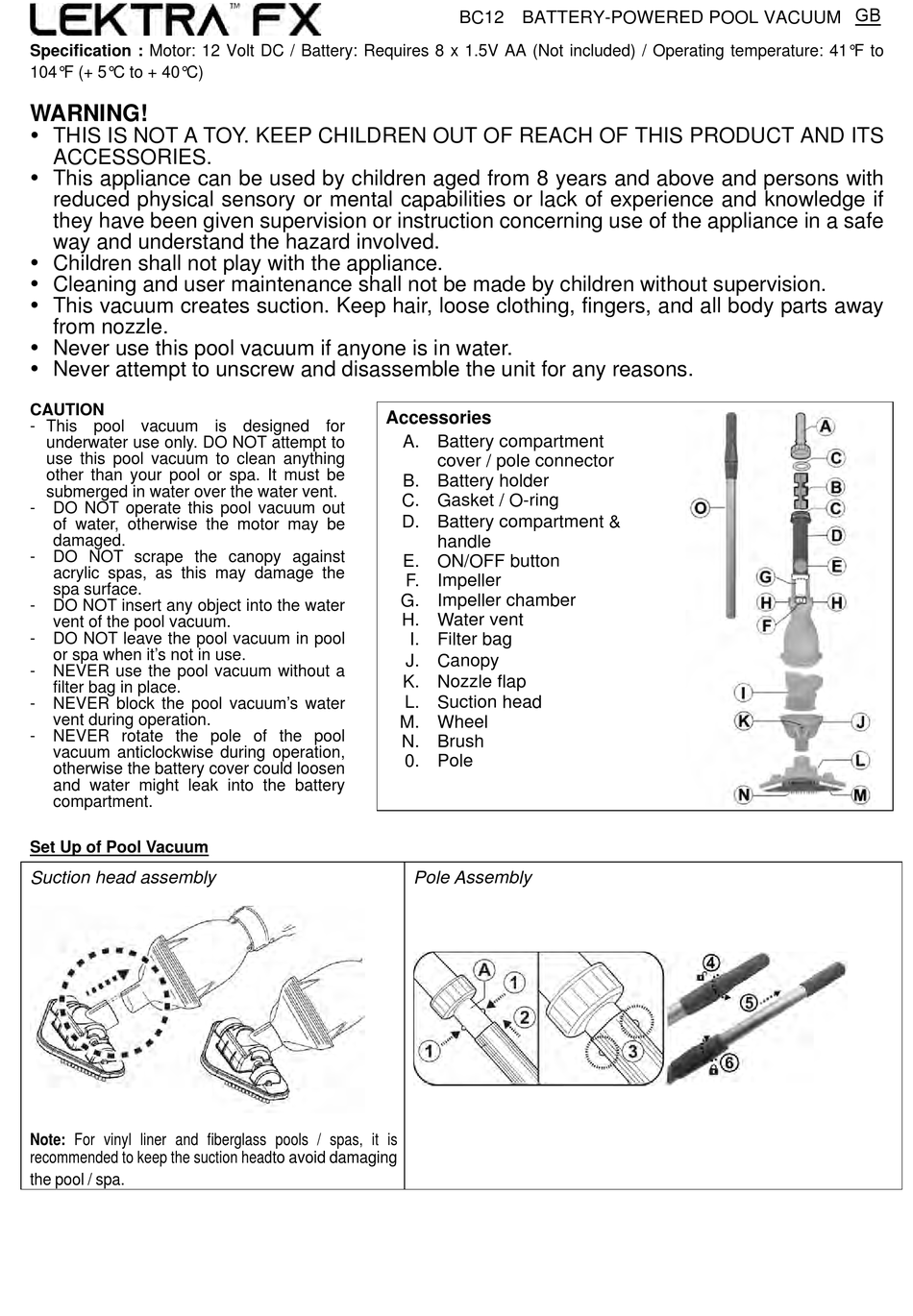

Kokido Lektra FX Quick Start Manual

Specification : Motor: 12 Volt DC / Battery: Requires 8 x 1.5V AA (Not included) / Operating temperature: 41°F to
104°F (+ 5°C to + 40°C)

WARNING!

 THIS IS NOT A TOY. KEEP CHILDREN OUT OF REACH OF THIS PRODUCT AND ITS

ACCESSORIES.

 This appliance can be used by children aged from 8 years and above and persons with
reduced physical sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazard involved.
 Children shall not play with the appliance.
 Cleaning and user maintenance shall not be made by children without supervision.
 This vacuum creates suction. Keep hair, loose clothing, fingers, and all body parts away
from nozzle.
 Never use this pool vacuum if anyone is in water.
 Never attempt to unscrew and disassemble the unit for any reasons.
CAUTION
- This pool vacuum is designed for
underwater use only. DO NOT attempt to
use this pool vacuum to clean anything
other than your pool or spa. It must be
submerged in water over the water vent.
- DO NOT operate this pool vacuum out
of water, otherwise the motor may be
damaged.
- DO NOT scrape the canopy against
acrylic spas, as this may damage the
spa surface.
- DO NOT insert any object into the water
vent of the pool vacuum.
- DO NOT leave the pool vacuum in pool
or spa when it's not in use.
- NEVER use the pool vacuum without a
filter bag in place.
- NEVER block the pool vacuum's water
vent during operation.
- NEVER rotate the pole of the pool
vacuum anticlockwise during operation,
otherwise the battery cover could loosen
and water might leak into the battery
compartment.

Set Up of Pool Vacuum

Suction head assembly
Note: For vinyl liner and fiberglass pools / spas, it is
recommended to keep the suction head to avoid damaging
the pool / spa.

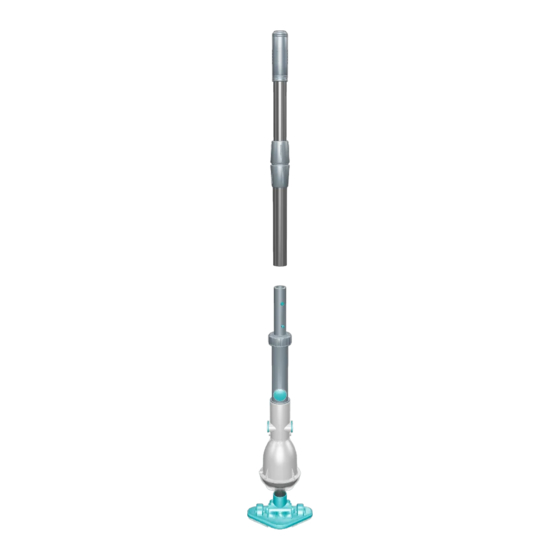

BC12 BATTERY-POWERED POOL VACUUM
Accessories
A. Battery compartment
cover / pole connector
B. Battery holder
C. Gasket / O-ring
D. Battery compartment &
handle
E. ON/OFF button
F. Impeller
G. Impeller chamber
H. Water vent
I. Filter bag
J. Canopy
K. Nozzle flap
L. Suction head
M. Wheel
N. Brush
0. Pole
Pole Assembly
