SIP SPEEDO-REVCOUNTER 2.0 Instructions Manual page 23

2.1

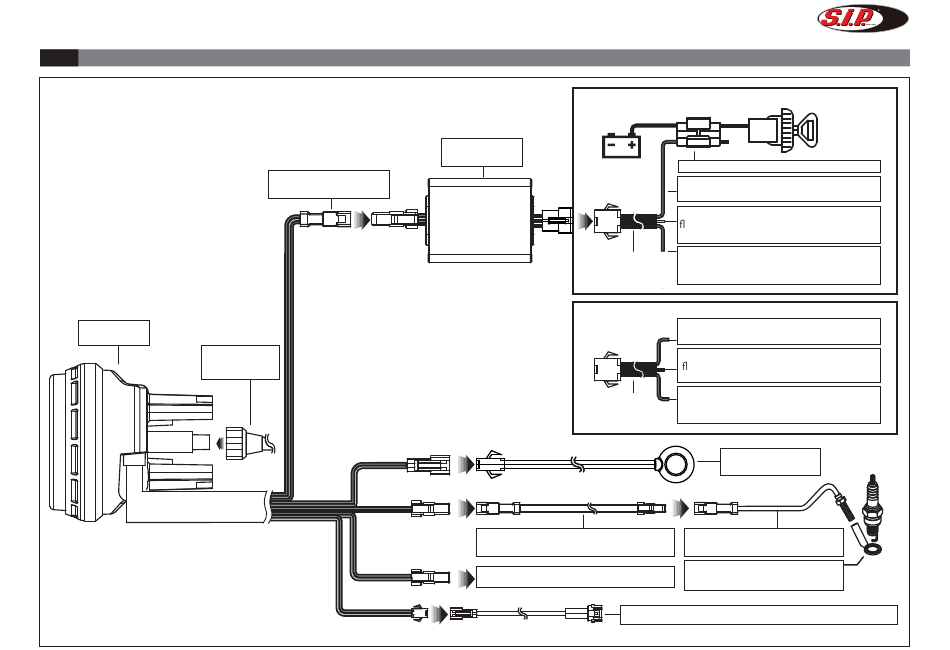

WIRING INSTALLATION INSTRUCTION
Meter
part no. 1
( )
Connection
speedometer
cable
Power box
(
Optional extension
part no. 4
( )
Wiring Instructions for DC models (See 2.2)
part no. 2
)
Main wiring
part no. 3
(
Wiring Instructions for AC models (See 2.2)
Main wiring
part no. 3
(
Temp. sensor extension wire
(part no. 7)
Speed sensor (optional)
Fuel warning switch extension wire (part no. 6)
Binder part no.11
( )
Red/positive pole: Connect to the
battery DC 12V.
Brown/RPM wire: Connect to 12V light
ux cable. Please check section 2.2
for details.
Black/Ground wire: Connect to the
chassis or the engine. Provide good
ground connection.
)
Red/Positive power connect to the
power wire of the Vespa.
Brown/RPM wire: connect to 12V light
ux cable. Please check section 2.2
for details.
Black/Ground wire: connect to
the chassis or the engine.
Provide good ground connection.
)
Extension button
part no. 5
( )
Cylinder head temp. sensor
part no. 8
( )
M14 adapter for temp.
sensor part no. 9
( )
