BiOptic Qsep1-Plus Operation Quick Start

BiOptic Qsep1-Plus Operation Quick Start

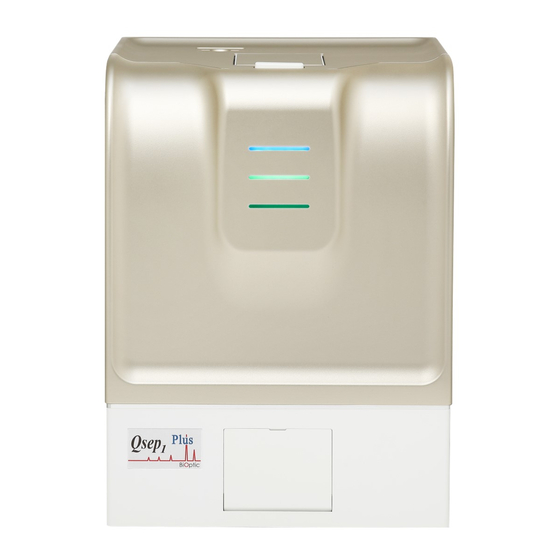

Bio-fragment analyzer

Advertisement

Quick Links

Qsep
Bio-Fragment Analyzer:
-Plus
1
Page: 1/3
1. Ensure the SD card is properly inserted in the
socket (Fig. 1 and 2).
*SD card needs to be inserted before powering on.
The SD card CANNOT be initialized with hot plugging.
Fig. 1
Fig. 2
2. Connect the air tube.
Qsep
3. Plug the power cord (labeled
Qsep
-
4. Switch on
Plus, the LED lights up (multiple
1
color light) (Fig. 3). Wait for 25 seconds until the
instrument and Wi-Fi initialized, and the green LED
will start flashing (Fig. 4).
*DO NOT switch on the instrument immediately
after powering off. Wait at least 5 seconds
Blue
Green
Fig. 4
Fig. 3
*The green flashing LED shows the instrument is
connected. If not, please repeat the step 4.
Operation Quick Start
Ethernet cable connection:
Ethernet cable
-Plus)
1
Wi-Fi connection: follow the steps below to
connect with
-
Check if the AP source is available from your Wi-Fi
network in the computer (Fig. 5).
Fig. 5
refer to step 5 on Page 2
Qsep
-Plus
1
Document No.: F0081
Ver.: ENG-A
-
Find the SSID named with
"Qsep1+instrument ID
(16 digits) "
and click "Connect" (Fig. 6)
-
Enter the password:
The password will show in the sticker which is
behind the instrument. It is the same as the
8 digits
of instrument serial number (same as SSID
name) by blinding the prefixal "Qsep1" (Fig. 7).
00923718
Fig. 7
*If the computer cannot find the SSID of
Qsep
keep the distance between
1
computer within 10 meters and start from step 4
again.
*If the computer cannot connect with
-
Please check the wi-fi IP assignment is "Automatic
(DHCP)"
Q-Analyzer
-
Allow
pass through firewall or turn off
the firewall
Fig. 6
middle
Qsep
-Plus,
1
-Plus and the
Qsep
-Plus
1
