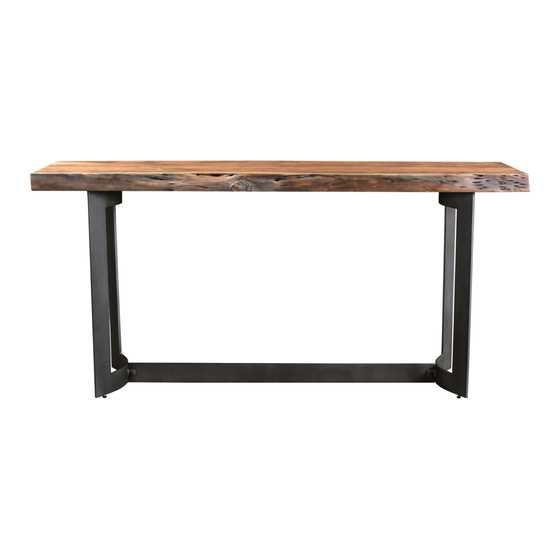

Bent console table smoked
Hide thumbs
1
2

Advertisement

Table of Contents

BENT CONSOLE TABLE SMOKED
VE 1041-03
ASSEMBLY INSTRUCTIONS

Components:

(A) Top, 1x

Hardware and tools:

(D) Hex Bolt large, 4x

Before beginning:

º Unpack all parts and hardware to ensure you have all needed components for assembly.
º Read this guide cover to cover before beginning assembly.
º Have 2 adults on hand for assembly.
º Assemble on a padded, non-marring surface.
º Save all packaging until finish.

Assembly steps

Step 1: Lay the Top (A) on a soft surface, with the inserted nuts facing up. Place the table Legs (B)
making them match with the nuts as shown in the image.
Insert Nuts
(B) Leg, 2x
(E) Hex Bolt small, 2x
(F) Washer 4x
© Metal Bar, 1x
(G) Spanner 1x

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VE 1041-03 and is the answer not in the manual?

Questions and answers

Related Manuals for Moe's VE 1041-03

Summary of Contents for Moe's VE 1041-03

  • Page 1 BENT CONSOLE TABLE SMOKED VE 1041-03 ASSEMBLY INSTRUCTIONS Components: (A) Top, 1x © Metal Bar, 1x (B) Leg, 2x Hardware and tools: (G) Spanner 1x (D) Hex Bolt large, 4x (E) Hex Bolt small, 2x (F) Washer 4x Before beginning: º...
  • Page 2 Step 2: Attach the legs using the Bolts (D), W ashers (F) and Spanner (G) provided. Step 3: Turn the table on its upright position and attach the metal bar Horizontally using Bolt (E) & Spanner (G) provided. Step 4: adjust the levellers under the legs if needed. Levellers Assembly complete.
