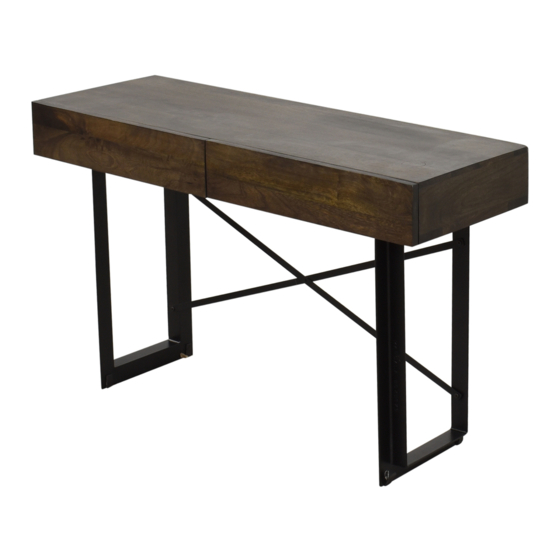

TUBRON CONSOLE TABLE
SR‐1019‐24
Assembly Instructions
Component List:
(A) Metal Frame Leg,2x
Tools List:
(D) Allen Bolt M8,
(E) Washer 18 mm,
18mm, 20x
20x
Before beginning
:
Unpack all parts and hardware to ensure you have all needed components for assembly.
Read this guide cover to cover before beginning assembly.
Have 2 adults on hand for assembly.
Assemble on a padded, non-marring surface.
Save all packaging until finish.
(B) Metal Back Rail,2x
(F) Allen Key
5mm, 1x
(C) Console Top, 1x
(G) Hex bolt
(H) Spanner,
12-13mm,4x
12-13mm,1x
Advertisement
Table of Contents
Related Manuals for Moe's TUBRON SR-1019-24
Summary of Contents for Moe's TUBRON SR-1019-24
- Page 1 TUBRON CONSOLE TABLE SR‐1019‐24 ...
- Page 2 ASSEMBLY STEPS - Step 1: Align Tabs of Metal Frame (A) With the Fasteners inserted into Bottom of the Desk Top (C) as shown below in diagram, Insert Allen Bolt (D), Washer (E), and tighten with Allen Key (F). Repeat the same process to secure other end.
- Page 3 Step 3: Once all connections are fully tighten, Turn the table in upright position. Step 4: Product is ready to use. ...
