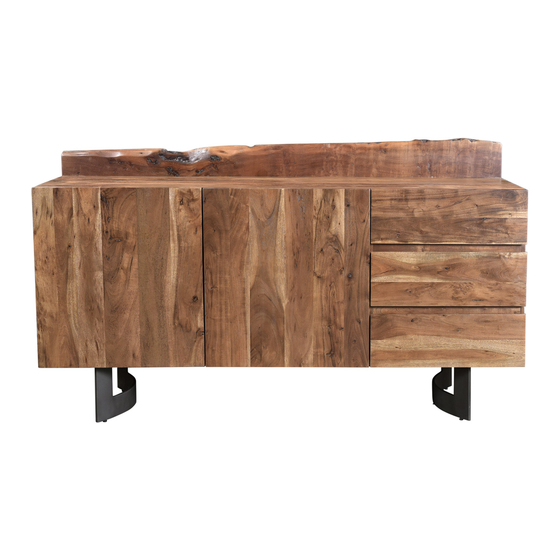

BENT SIDEBOARD SMOKED
VE 1040-03
ASSEMBLY INSTRUCTIONS
Components:
(A) Structure, 1x
Hardware and tools:
(D) Hex Bolt, 8x
Before beginning:
º Unpack all parts and hardware to ensure you have all needed components for assembly.
º Read this guide cover to cover before beginning assembly.
º Have 2 adults on hand for assembly.
º Assemble on a padded, non-marring surface.
º Save all packaging until finish.
Assembly steps
Lay the Structure (A) on a soft surface, match the legs with the holes as
Step 1:
shown in the Image
(B) shelf, 1x
(E) Washer, 8x
© leg, 2x
(F) Spanner,1x
Advertisement
Table of Contents
Related Manuals for Moe's VE 1040-03
Summary of Contents for Moe's VE 1040-03
- Page 1 BENT SIDEBOARD SMOKED VE 1040-03 ASSEMBLY INSTRUCTIONS Components: (A) Structure, 1x © leg, 2x (B) shelf, 1x Hardware and tools: (D) Hex Bolt, 8x (E) Washer, 8x (F) Spanner,1x Before beginning: º Unpack all parts and hardware to ensure you have all needed components for assembly.
- Page 2 Step 2: Tighten the legs with the Bolt (D), Washer (E), Spanner (F) provided Step 3: Turn the sideboard to its Right position ,place the Shelf (B) by tilting it diagonally as shown in the image. Assembly complete. Care Instructions: º...
