COLVIN DESK
SR‐1030‐24

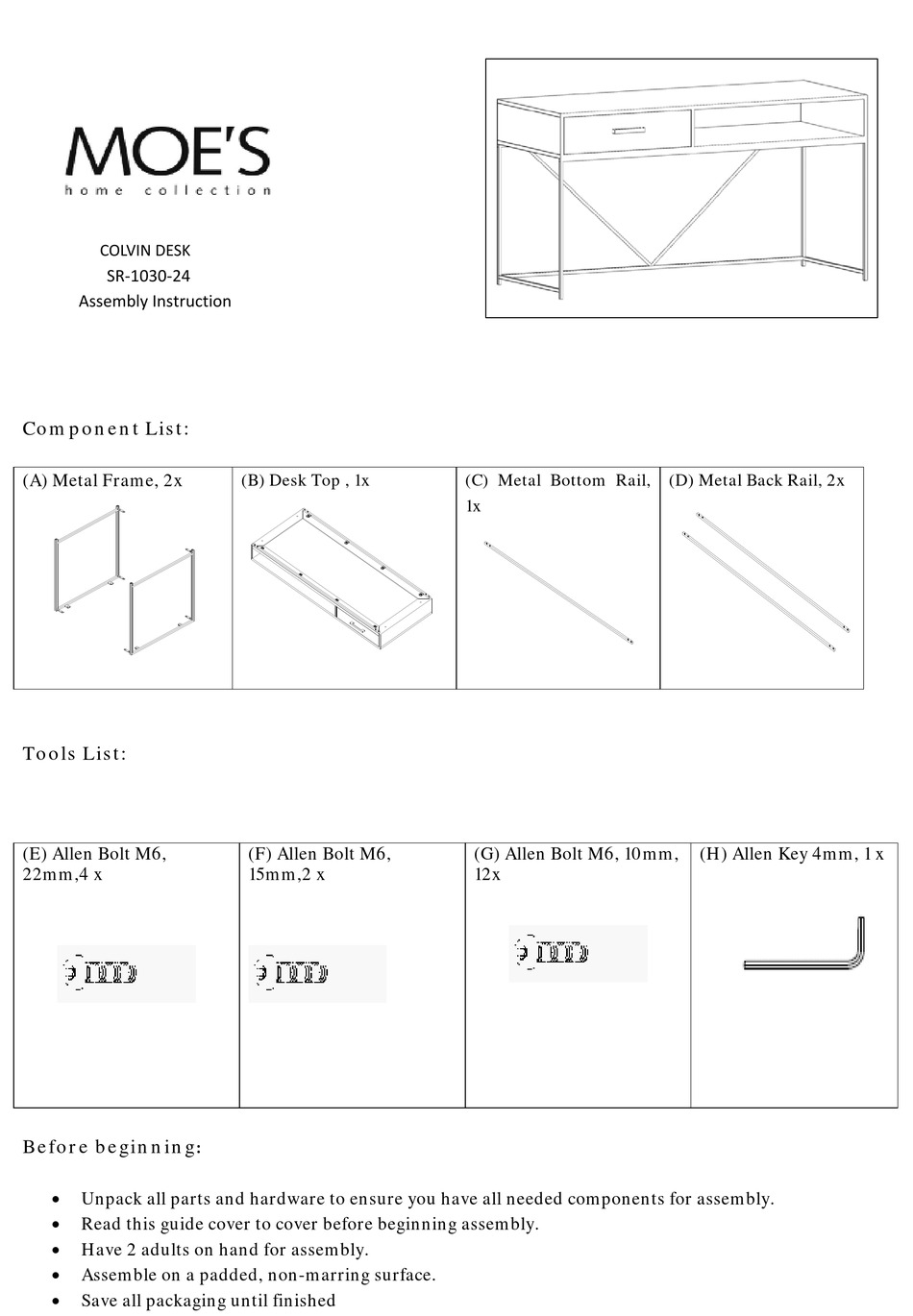

Assembly Instruction
Component List:
(A) Metal Frame, 2x
Tools List:
(E) Allen Bolt M6,
22mm,4 x
Before beginning
Unpack all parts and hardware to ensure you have all needed components for assembly.
Read this guide cover to cover before beginning assembly.
Have 2 adults on hand for assembly.
Assemble on a padded, non-marring surface.
Save all packaging until finished
(B) Desk Top , 1x
(F) Allen Bolt M6,
15mm,2 x
:
(C) Metal Bottom Rail,
1x
(G) Allen Bolt M6, 10mm,
12x
(D) Metal Back Rail, 2x
(H) Allen Key 4mm, 1 x
Advertisement
Table of Contents
Related Manuals for Moe's SR-1030-24
Summary of Contents for Moe's SR-1030-24
- Page 1 COLVIN DESK SR‐1030‐24 Assembly Instruction Component List: (A) Metal Frame, 2x (B) Desk Top , 1x (C) Metal Bottom Rail, (D) Metal Back Rail, 2x...
- Page 2 Assembly: Step 1: Align Tabs of Metal Frame (A) onto Slots of the Frame which is attached with the Bottom of the Desk Frame (B) as shown below in diagram, Insert Allen Bolt (F) and tighten with Allen Key (H). & also align the Metal Clip on the Metal with the Fasteners Inserted into the Desk Bottom Frame (B) Now, Insert Allen Bolt (E), Washer (G) and tighten with Allen Key (H).
- Page 3 Step 3: Now, align the tabs of Back Rail (D) with the frame attached to the bottom of the Desk, and with the Bottom Rail (C) as shown in below fig. Insert Allen Bolt (F) and Tighten with Allen Key (H). ...
- Page 4 Step 5: Product is ready to use. ASSEMBLED VIEW Care: Do not clean furniture with harsh cleansers or polish. Do not put hot items directly on furniture surface. Do not put furniture in direct sunlight. Not for commercial use. For residential use only. Dust and pick up spills with a clean, non-colored, lint-free cloth.
