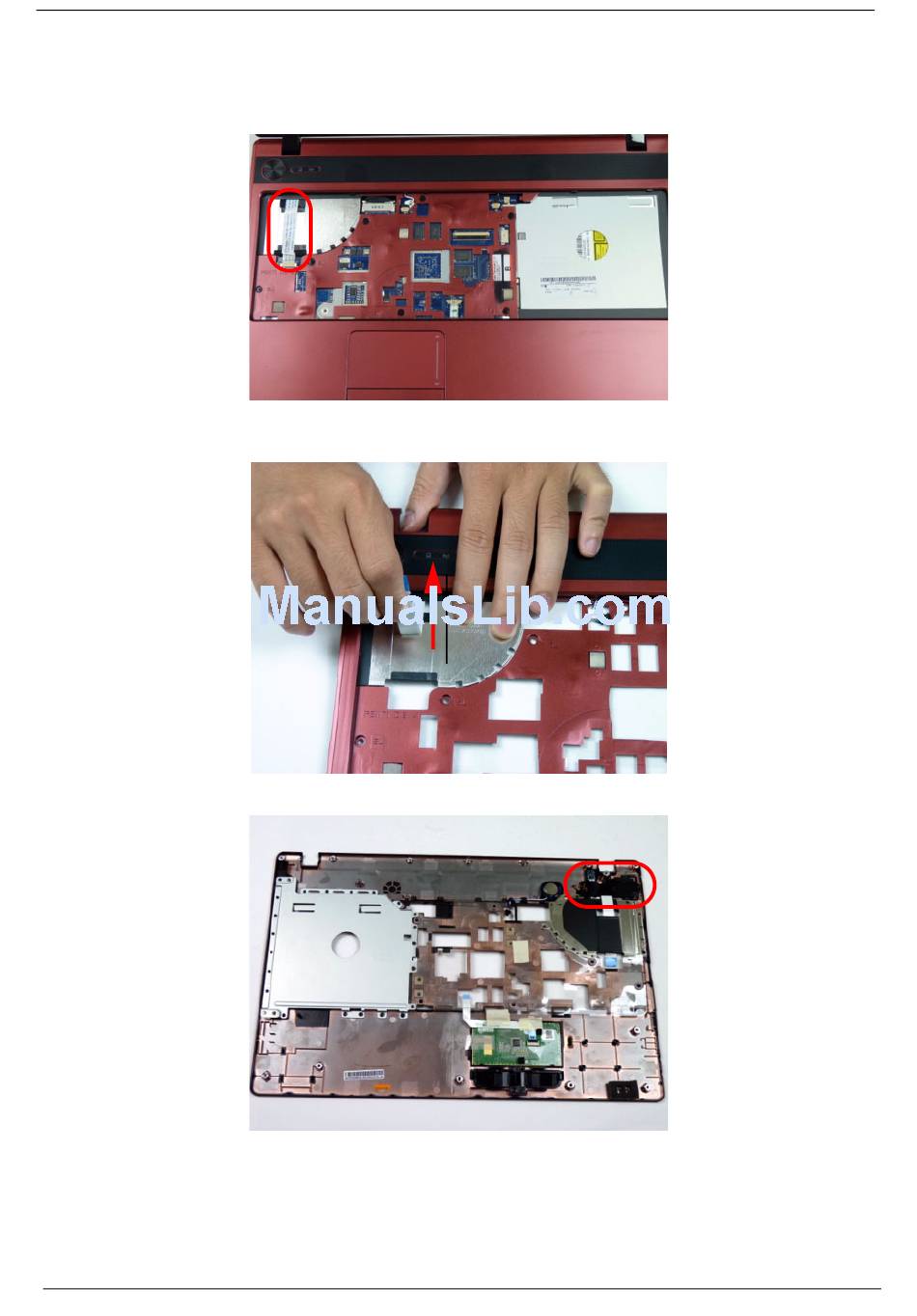

Removing the Power Board
1. See "Removing the Upper Cover" on page 67.
2. Locate the power board FFC on the top side of the upper cover.
3. Remove the power board FFC from the upper cover by grasping the blue sleeve with the thumb and forefinger
and pull up until the FFC is free from the adhesive.
4. Turn the upper cover over to expose the underside and locate the power board.
74
Chapter 3
