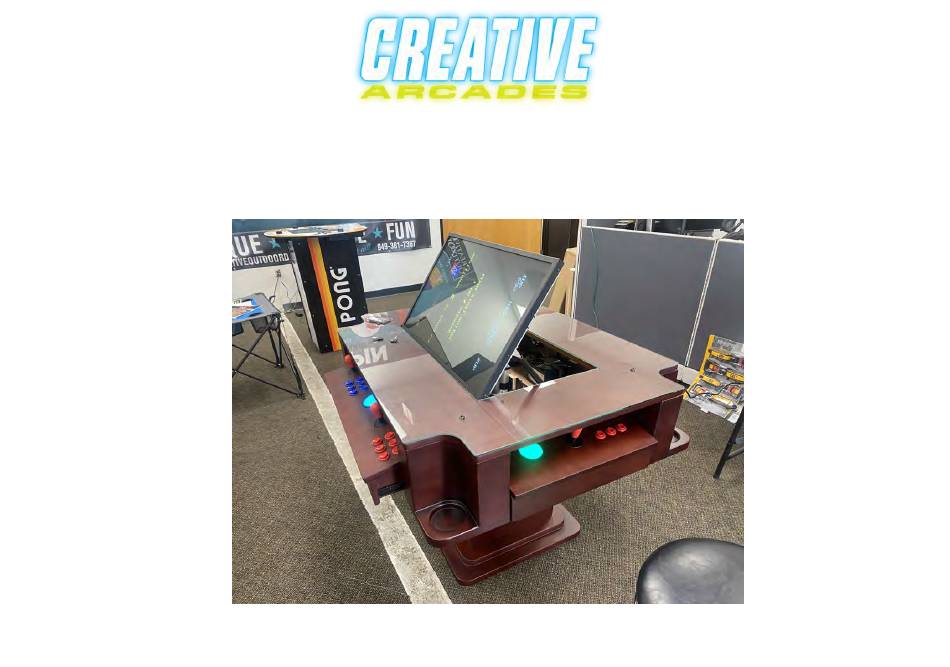

- Page 1 4701-Elegent Arcade VER101620...
- Page 2 Control Panel Quick Starting To start playing a game. First find the category by pressing the Change Categories button shown below until you come to the category that you want. Then use the joystick to navigate through the game selection screen. Push down on the joystick to move to the next game on list.
- Page 3 Game Selection Game Category is displayed at top left of screen in YELLOW Game Category - ------> Game List -------------> Player 1 Buttons (A) (B) (C) (D) (E) (F) While on the game selection screen you can push Player1_B button to cycle through the game categories one at a time then you can push down on joystick to cycle down through game list one at a time, or press to the right and cycle through game list TEN at a time.
- Page 4 Playing Doubles Some games (donkey kong, pacman, galaga) require players to use the same controls. The original design of these games was based on taking turns using the same controls. As one player would play until his turn ended and then the other player would step up and take his turn on the same controls.
- Page 5 Connecting the Coin Assimulator To have your machine accept quarters you must first connect the coin Assimulator to the motherboard by connecting the cable shown in the first picture. This cable goes through the hole below and connects to the assimulator on the plug shown in the picture on the right.
- Page 6 Setting up machine to take quarters Coin Assimulator Figure D Figure E Step 1. Locate the coin assimulator in front of the machine and open the coin door. Step 2. Put in a sample quarter into the caddy tray as shown in figures D and E above. Step 3.
- Page 7 Tilting the Screen To tilt the screen of your machine, push forward on the tilt handle (black one in picture) and your screen will lift up slowly to accomadate you on the standup side. To put the screen back down, gently push down the screen until it sits flush with the rest of the table.
- Page 8 Favorites List To setup your favorite game list it is very simple You must be on the "ALL" category and you simply just highlight the game that you want. Then press the Player 1_C button. Your game is now in your "Favorites" category. To get to it you simply press the category button (Player1_B) until the category favorites comes up and the games you chose should be there on the list.
