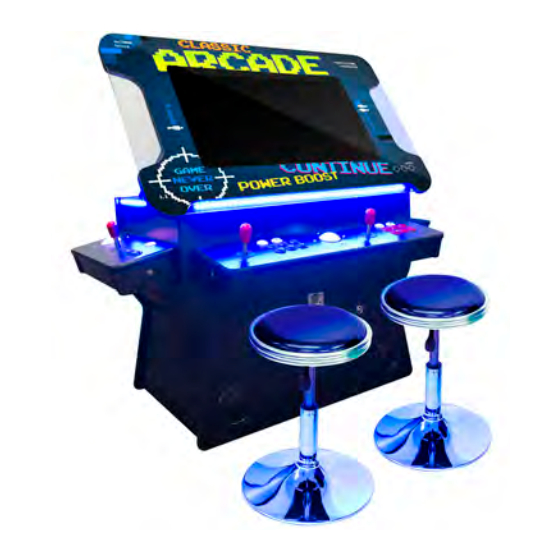

- Page 1 3500 COCKTAIL LIFT TOP ARCADE USER MANUAL...
- Page 2 Control Panel Quick Starting To start playing a game. First find the category by pressing the Category button and continue to press it until you come to the category that you want. Then use the joystick to navigate through the game selection screen. Push down on the joystick to move down one game at a time, Also you can push to the right to jump through games ten at a time.
- Page 3 Game Selection Game Category is displayed at top left of screen in Game Category - ------> Game List -------------> While on the game selection screen you can push Player1_b button to cycle through the game categories one at a time then you can push down on joystick to cycle down through game list one at a time, or press to the right and cycle through game list TEN at a time.
- Page 4 Playing Doubles Some games (donkey kong, pacman, galaga) require players to use the same controls. The original design of these games was based on taking turns using the same controls. As one player would play until his turn ended and then the other player would step up and take his turn on the same controls.
- Page 5 Setting up machine to take quarters Figure D Figure E Step 1. Locate the coin assimulator in fornt of the machine and open the coin door. Step 2. Put in a sample quarter into the caddy tray as shown in figures D and E above.nt of the machine and open the Step 3.
- Page 6 De-activate freeplay when using coin acceptor Note that this process is for our Lift top Model To finish setting up your machine to take quarters you must de-activate the freeplay button on the control panel and to do this you must open up the machine on the coin door side and look up to the right and you should see something similiar to figure f.
- Page 7 Three sided cocktail control panel...
- Page 8 Lifting up the tilt screen Step 1 : Locate the two latches (one on each side) that secure the screen to the unit during shipping. These images are from the top of the machine when the screen is up. To unlatch the screen, you have to reach into the machine from the back (opposite of Coin Door) and reach up through the hole that is in the picture and unlatch the clamp.
- Page 9 This is a view from the bottom inside pointed up Here is a view of the latches from the top side of the machine NOTE: When transporting machine, make sure that you have fastened these latches back down again to prevent damage...
