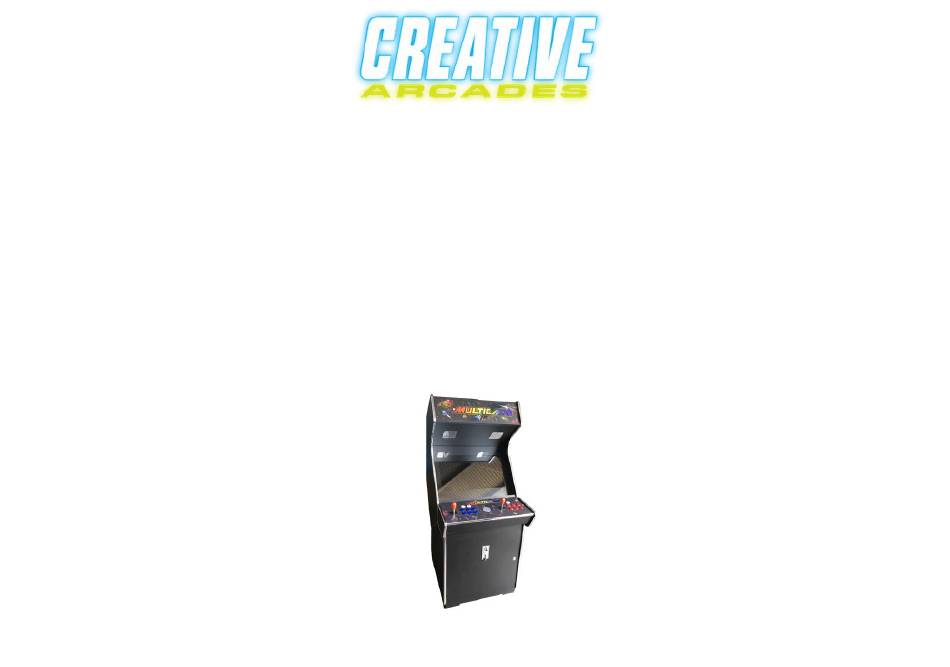

- Page 1 3500 MACHINE SIMPLE USER MANUAL...
- Page 3 1. Plug your arcade machine into an available electrical socket. 2. Locate main switch at rear of the machine and turn it on. 1. Power machine on. From main menu screen, use P1 joystick to browse games. 2. Up and down joystick movement cycles through games one at a time. Leftandright joystick movements will cycle through games ten at a time.
- Page 4 To setup coin type, you must insert a sample coin into the assimulator. First lift up on the coin holder and insert coin underneath yellow sticker and then let go so that the coin holder goes all the way back to its original position with the coin underneath. The machine is now ready to accept coins of this denomination.
- Page 5 Open front access door Locate two black adjustment knobs in side of Green Computer, One knob controls volume, and one controls bass. See below :...
- Page 6 1. Ensure machine is switched off and unplugged. Open front access door 2. Locate blackwire in rear of freeplay switch. 3. Unplug black wire from switch and secure away tidily...
- Page 7 Game selection screen shown above...
- Page 8 Removing front control panel for a narrow doorway (if required When removed, arcade is 33' wide. (1) Remove upper left and upper right screws. Lift panel (2) Remove the 4 screws 2 on the left and 2 under the panel (3) Lift box and gently place against screen while moving through doorway (4) Replace screws into pane once in desired location...
- Page 9 Quick Reference Page...
