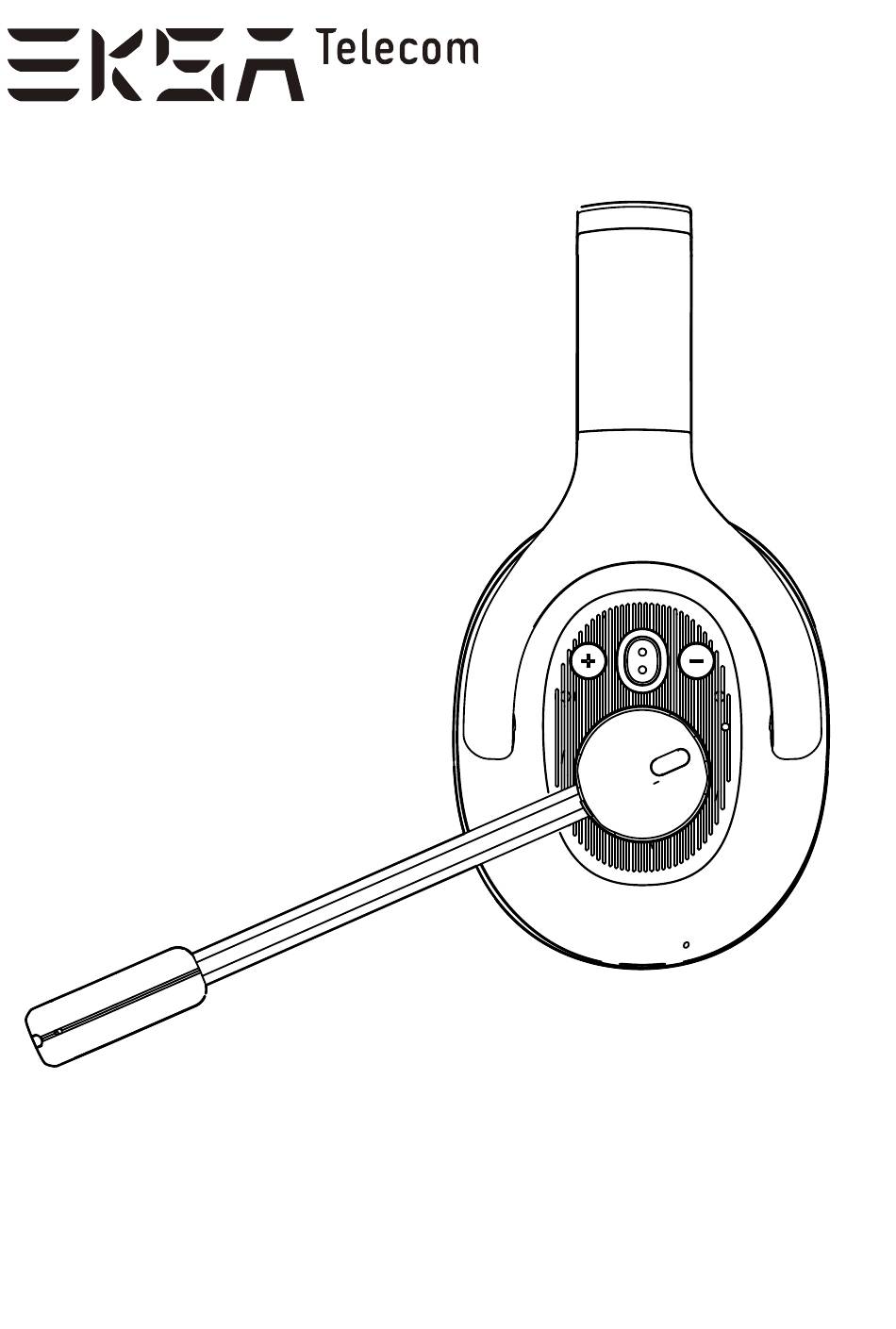

- Page 1 H1-BT Wireless Headset with Microphone User Manual...
-
Page 2: Specification
Specification Bluetooth® Specification Chipsets BES2300Z Bluetooth® Version Bluetooth V5.0 Support Protocols Bluetooth 2.1+EDR and BLE5.0 Effective wireless range 30 M/ 99ft Driver Specification Model Dimensions 40mm Impedance 32Ω±15% Sensitivity 105dB±3dB Frequency Response 20Hz~20kHz Vibrating diaphragm material Magnet Level Microphone Specification Dimensions ø6X2.7mm Microphone Direction... -
Page 3: Package Contents
Over View Microphone MIC Mute Button Multifunction Button Type-C Charging Port Volume + Indicator Light Volume - Package Contents 1.EKSA H1 Wireless Headset 2.Type-C Charging Cable 3.User Manual 4.Carry Pouch... -
Page 4: Operation Function
Operation function Press and hold the multi- 3″ function button for 3 Power On/Off seconds to power on or off. short press the multi-func- tion button to pause/play Play/Pause the music Three-click the MFB multifunction button to start SIRI SIRI/Voice Assistant When a call comes in, short press the multi-function Answer Calls... - Page 5 Operation function Click volume “+” button Volume “+” Long press the volume “+ 2″ ”button for 2 seconds Next track Click Volume “-” button Volume “-” Long press the volume “- 2″ ”button for 2 seconds Previous track Click the mute button to mute microphone(voice prompt) and click mute Mute...
-
Page 6: How To Use
How to Use Bluetooth® Pairing and Connection 1. Long press the multi-function button of EKSA H1 for 3 seconds to enter the pairing mode, and the red and blue lights flash alternately. 3″ 2. Turn on the Bluetooth® of the mobile phone and select "EKSA H1"... - Page 7 *Note: A. When EKSA-H1 is not in use, please charge it at least one time every 2 months. Charging voltage can't exceed 5V.
-
Page 8: Limited Warranty
Limited Warranty Please sign up for EKSAtelecom warranty service at www.ek- satelecom.net We provide a 2-year warranty from the date of retail purchased by the original end-user. And it is delivered from EKSAtelecom authorized reseller, in original package, in new condition and is free from any defects in manufacturing and workmanship. - Page 9 In order to get professional solutions from EKSAtelecom, please give a detailed explanation of how the damage occurred. Return the products. EKSAtelecom will, at our sole option, repair or replace (using new or refurbished replacement parts) any defective parts within a reasonable period of time and free of charge.
- Page 10 Note If you can’t connect the headset/headphones to your devices, please ask us for complete FAQ guidance. You can find the solution finally. Depending on your head/ear size/shape, it may be a little tight (feels like“on ear") for someone to wear which is designed to avoid sound leakage.
