Quick Start
Guide

Overview

f
WARNING!
Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment.
This quick start guide describes how to install Adtran's SDG CPE Wall Mount 1 mounting kit. This kit can be used with Adtran's 814-v6, 825-v6, 834-5, and
854-6/v6 Service Delivery Gateways (SDGs). There are two color options for the SDG CPE Wall Mount 1 mounting kit: the black wall mounting kit
(PN: 17600192F1) and the white wall mounting kit (PN: 17600197F1).

Package Contents

■ Adtran's SDG CPE Wall Mount 1 mounting bracket
■ Screws and wall anchors

Prior to Installation

Before installing the wall mount bracket, inspect it for damage. If damage has occurred during shipping, file a claim with the carrier, and then contact
Adtran Customer Support.

Required Tools

A #2 Phillips-head screwdriver, drill and 1/4" (6mm) drill bit are required for installing the SDG CPE Wall Mount 1 mounting bracket.
Decide on a location for the gateway you want to mount on a wall, and follow these steps:
1. Use the keyholes on the wall mount kit as a template and mark the wall accordingly. See
f
WARNING!
WARNING indicates a hazard which, if
not avoided, could result in death, injury
or serious property damage.
SDG CPE Wall Mount 1
SDG CPE Wall Mount Kit 1
November 2022
617600192F1-13B
Wall Mount
Screws (4x)
Cover

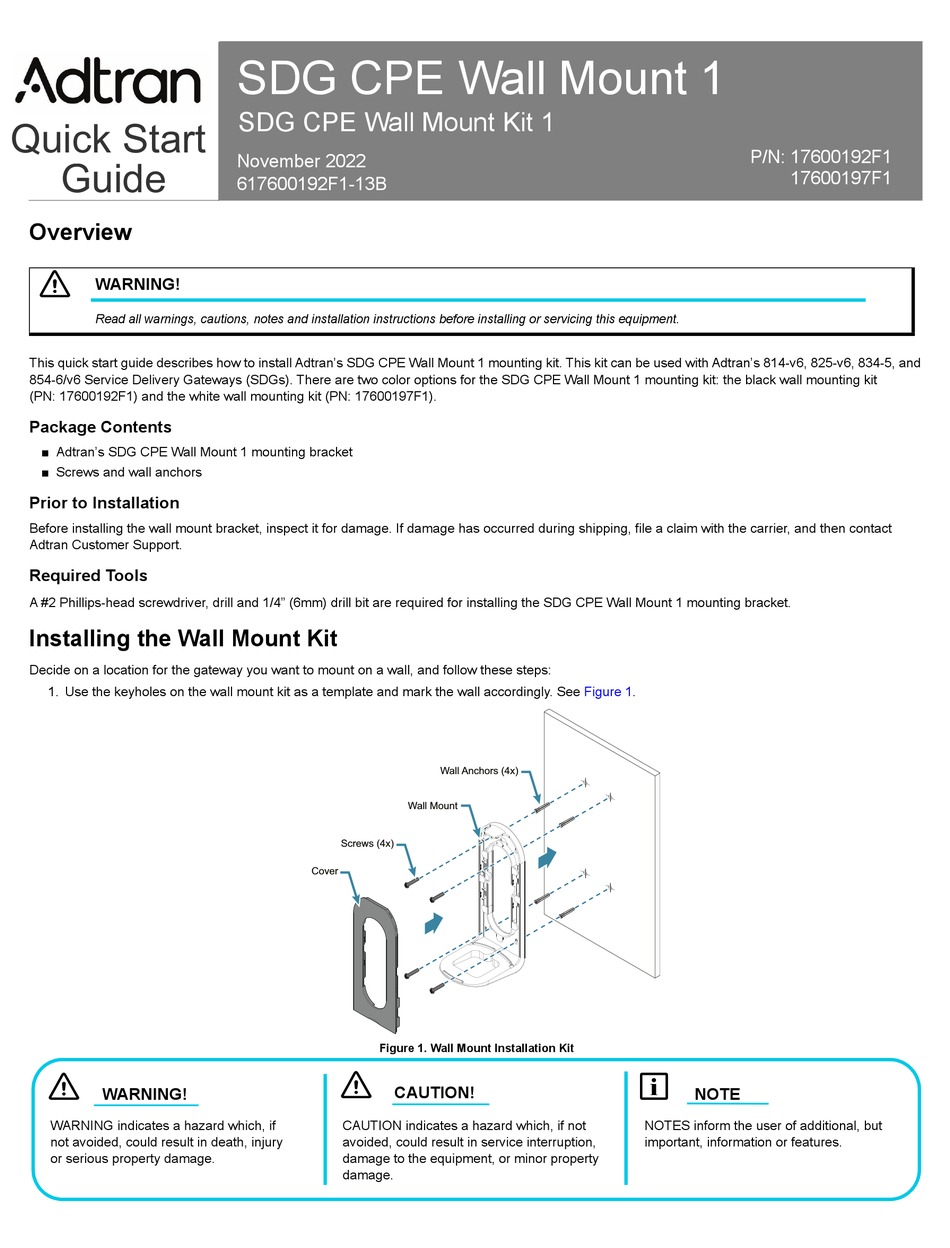

Figure 1. Wall Mount Installation Kit
f
CAUTION!
CAUTION indicates a hazard which, if not
avoided, could result in service interruption,
damage to the equipment, or minor property
damage.
Figure
Wall Anchors (4x)
P/N: 17600192F1
17600197F1
1.
g
NOTE
NOTES inform the user of additional, but
important, information or features.
