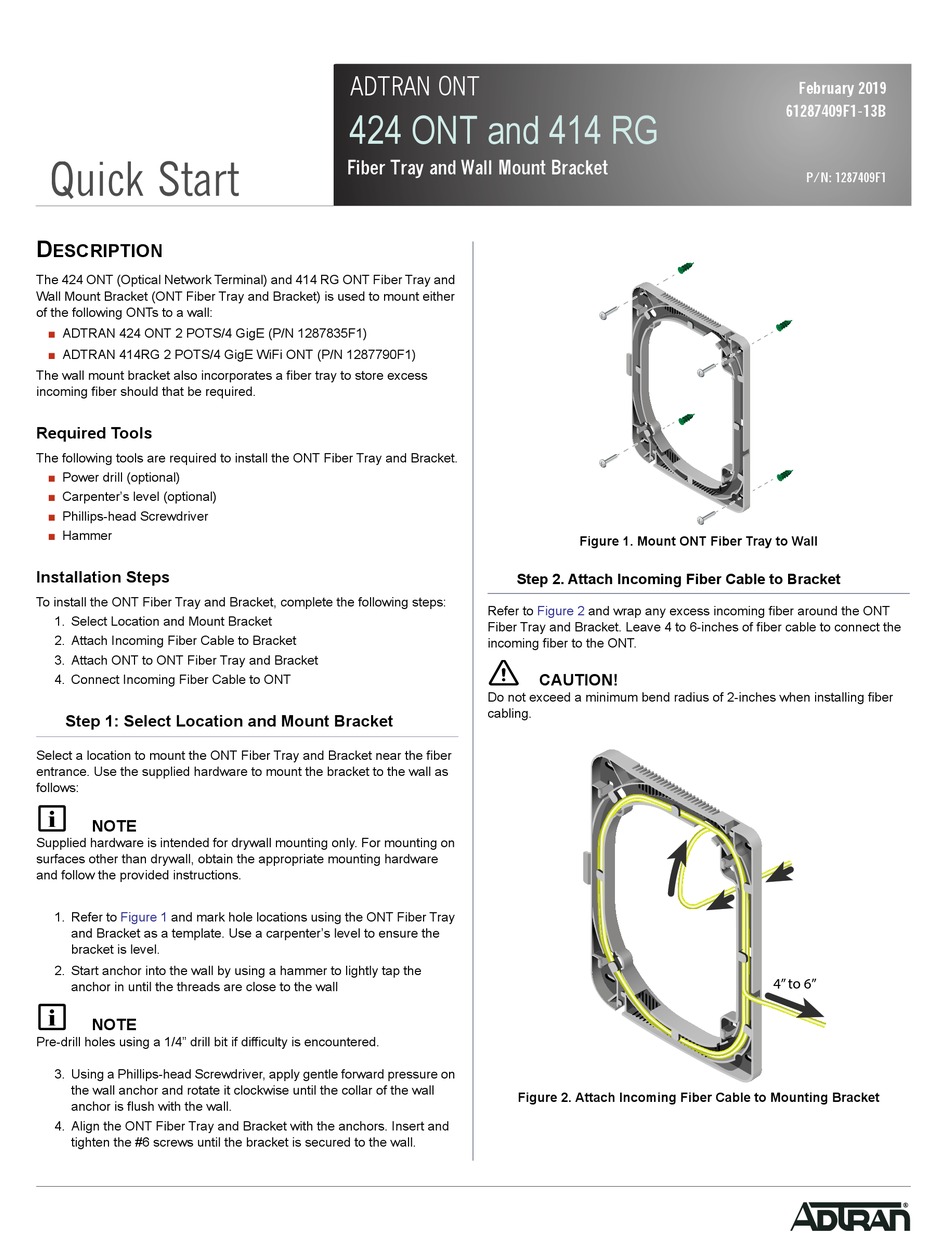

ADTRAN 424 ONT Quick Start

Quick Start
D
ESCRIPTION
The 424 ONT (Optical Network Terminal) and 414 RG ONT Fiber Tray and
Wall Mount Bracket (ONT Fiber Tray and Bracket) is used to mount either
of the following ONTs to a wall:
■
ADTRAN 424 ONT 2 POTS/4 GigE (P/N 1287835F1)
■
ADTRAN 414RG 2 POTS/4 GigE WiFi ONT (P/N 1287790F1)
The wall mount bracket also incorporates a fiber tray to store excess
incoming fiber should that be required.
Required Tools
The following tools are required to install the ONT Fiber Tray and Bracket.
■
Power drill (optional)
■ Carpenter's level (optional)
■ Phillips-head Screwdriver
■ Hammer
Installation Steps
To install the ONT Fiber Tray and Bracket, complete the following steps:
1. Select Location and Mount Bracket
2. Attach Incoming Fiber Cable to Bracket
3. Attach ONT to ONT Fiber Tray and Bracket
4. Connect Incoming Fiber Cable to ONT
Step 1: Select Location and Mount Bracket
Select a location to mount the ONT Fiber Tray and Bracket near the fiber
entrance. Use the supplied hardware to mount the bracket to the wall as
follows:
g
NOTE
Supplied hardware is intended for drywall mounting only. For mounting on
surfaces other than drywall, obtain the appropriate mounting hardware
and follow the provided instructions.
1. Refer to Figure 1 and mark hole locations using the ONT Fiber Tray
and Bracket as a template. Use a carpenter's level to ensure the
bracket is level.
2. Start anchor into the wall by using a hammer to lightly tap the
anchor in until the threads are close to the wall
g
NOTE
Pre-drill holes using a 1/4" drill bit if difficulty is encountered.
3. Using a Phillips-head Screwdriver, apply gentle forward pressure on
the wall anchor and rotate it clockwise until the collar of the wall
anchor is flush with the wall.
4. Align the ONT Fiber Tray and Bracket with the anchors. Insert and
tighten the #6 screws until the bracket is secured to the wall.
ADTRAN ONT
424 ONT and 414 RG
Fiber Tray and Wall Mount Bracket
Step 2. Attach Incoming Fiber Cable to Bracket
Refer to
Fiber Tray and Bracket. Leave 4 to 6-inches of fiber cable to connect the
incoming fiber to the ONT.
f
Do not exceed a minimum bend radius of 2-inches when installing fiber
cabling.
Figure 2. Attach Incoming Fiber Cable to Mounting Bracket
Figure 1. Mount ONT Fiber Tray to Wall
Figure 2 and wrap any excess incoming fiber around the ONT
CAUTION!
February 2019
61287409F1-13B
P/N: 1287409F1
4" to 6"
